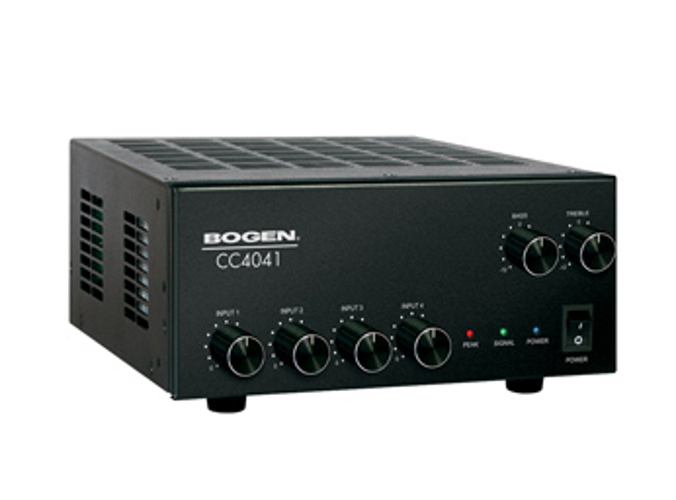

Bogen Communications CC4041
4-Input 40W 70/25V Mixer Amplifier

OUR PART #:  CC4041

The Bogen Communications CC4041 provides 40 watts of output power, and features 4 inputs: 3 balanced MIC/Line and 1 unbalanced AUX with individual volume controls.
Learn More
Our Price: $174.63
List Price: $204.81
You save 15%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications CC4041
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bogen Communications CC4041 provides 40 watts of output power, and features 4 inputs: 3 balanced MIC/Line and 1 unbalanced AUX with individual volume controls. Additional features include priority muting which can be disabled, individual phantom power on all MIC inputs, bass and treble controls, peak and signal indicators, and a REC Output.

The CC4041 is compatible with 70V, 25V, 4-ohm, and 8-ohm speaker systems. The unit measures two rack spaces in height, but are only 8-1/4” wide allowing for two units to be placed side-by-side without requiring additional rack spaces. An optional rack mount adapter is available for single and side-byside configurations.

Bogen Communications CC4041 Features:

  • 40 Watts of output power
  • 4 Inputs on Model CC4041:
    • 3 balanced MIC/Line
    • 1 unbalanced AUX
  • Individual phantom power for MIC inputs
  • Volume controls for each input
  • Input 1 can mute other inputs
  • Audio-activated muting
  • Defeatable muting
  • Bass and treble controls
  • Compatible with 70V, 25V, 4-ohm, and 8-ohm systems
  • REC Output
  • Peak indicator
  • Signal indicator
  • External 24V DC supply input
  • Listed to UL Standard 60065 for US and Canada
  • Optional rack mount adapter available for single and side-by-side configurations (sold separately)

Bogen Communications CC4041 Specifications:

  • Output Power: 40W; 1 kHz @ rated distortion
  • Frequency Response:
    • Balanced LINE/MIC: 100 Hz to 20 kHz; 0/-3 dB
    • Unbalanced Input: 80 Hz to 20 kHz; 0/-3 dB
  • Distortion:
    • Balanced LINE/MIC: < 1% THD+N
    • Unbalanced Input: < 1% THD+N
    • Output Regulation: 2 dBr or better no-load to full-load
    • Output Impedance: 70V, 25V, 4 ohms, 8 ohms
    • REC Output: 1.14V @ Full Rated Power (FRP)
  • Maximum Sensitivity:
    • Balanced MIC: 1.5 mVrms (200 ohms)
    • Balanced LINE: 150 mVrms (200 ohms)
    • Unbalanced RCA Input: 100 mVrms (10k ohms)
  • Maximum Input Level:
    • Balanced MIC: 100 mVrms
    • Balanced LINE: 6 Vrms
    • Unbalanced Input: 5 Vrms
  • Signal to Noise AUX:
    • Fundamental: -74 dBr minimum referenced to FRP
    • Balanced MIC: -59 dBr minimum referenced to FRP
    • Balanced LINE: -70 dBr minimum referenced to FRP
    • Unbalanced Input: -70 dBr minimum referenced to FRP
  • Bass & Treble:
    • Bass: +/- 10 dBr @ 100 Hz referenced to mid-band
    • Treble: +/- 10 dBr @ 10 kHz referenced to mid-band
  • VOX Trigger & Muting:
    • Input 1 Trigger Level: 25mV (approx.)
    • VOX Release Delay: 4 (+/- 1) sec.
    • Muting Level: > -60 dBr
  • Phantom Power: 12V DC min., 18V DC max.
  • Max. Ambient Temp.: 100°F (non-condensing)
  • Thermal Emissions: 141.5 BTU/hr. (full power)
  • External Supply: 24V DC; 3A
  • Dimensions (WxHxD): 8-1/4” x 3-1/2” x 10-3/8”
  • Product Weight: 10 lb.
  • Listings: Listed to UL Standard 60065 for US and Canada
