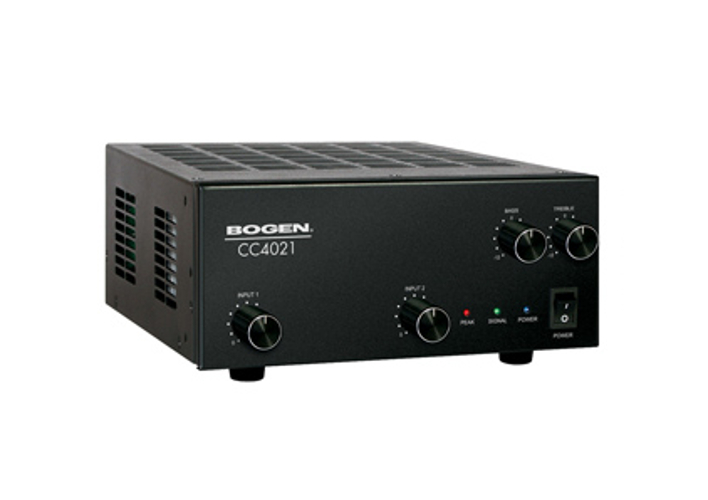

Bogen Communications CC4021
2-Input 40W 70/25V Mixer Amplifier

OUR PART #:  CC4021

The Bogen Communications CC4021 compact mixer-amplifiers provide 40 watts of output power.
Learn More
Our Price: $157.18
List Price: $184.33
You save 15%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Bogen Communications CC4021
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bogen Communications CC4021 compact mixer-amplifiers provide 40 watts of output power. Model CC4021 has two inputs: 1 balanced MIC/Line and 1 unbalanced AUX with individual volume controls. Features include priority muting which can be disabled, individual phantom power on all MIC inputs, bass and treble controls, peak and signal indicators, and a REC Output.

They are compatible with 70V, 25V, 4-ohm, and 8-ohm speaker systems. The units measure two rack spaces in height, but are only 8-1/4” wide allowing for two units to be placed side-by-side without requiring additional rack spaces. An optional rack mount adapter is available for single and side-byside configurations.

Bogen Communications CC4021 Features:

  • 40 Watts of output power
  • 2 Inputs on Model CC4021:
    • 1 balanced MIC/Line;
    • 1 unbalanced AUX
  • Individual phantom power for MIC inputs
  • Volume controls for each input
  • Input 1 can mute other inputs
  • Audio-activated muting
  • Defeatable muting
  • Bass and treble controls
  • Compatible with 70V, 25V, 4-ohm, and 8-ohm systems
  • REC Output
  • Peak indicator
  • Signal indicator
  • External 24V DC supply input
  • Listed to UL Standard 60065 for US and Canada
  • Optional rack mount adapter available for single and side-by-side configurations (sold separately)

Bogen Communications CC4021 Specifications:

  • Output Power: 40W; 1 kHz @ rated distortion
  • Frequency Response:
    • Balanced LINE/MIC: 100 Hz to 20 kHz; 0/-3 dB
    • Unbalanced Input: 80 Hz to 20 kHz; 0/-3 dB
  • Distortion:
    • Balanced LINE/MIC: < 1% THD+N
    • Unbalanced Input: < 1% THD+N
    • Output Regulation: 2 dBr or better no-load to full-load
    • Output Impedance: 70V, 25V, 4 ohms, 8 ohms
    • REC Output: 1.14V @ Full Rated Power (FRP)
  • Maximum Sensitivity:
    • Balanced MIC: 1.5 mVrms (200 ohms)
    • Balanced LINE: 150 mVrms (200 ohms)
    • Unbalanced RCA Input: 100 mVrms (10k ohms)
  • Maximum Input Level:
    • Balanced MIC: 100 mVrms
    • Balanced LINE: 6 Vrms
    • Unbalanced Input: 5 Vrms
  • Signal to Noise AUX:
    • Fundamental: -74 dBr minimum referenced to FRP
    • Balanced MIC: -59 dBr minimum referenced to FRP
    • Balanced LINE: -70 dBr minimum referenced to FRP
    • Unbalanced Input: -70 dBr minimum referenced to FRP
  • Bass & Treble:
    • Bass: +/- 10 dBr @ 100 Hz referenced to mid-band
    • Treble: +/- 10 dBr @ 10 kHz referenced to mid-band
  • VOX Trigger & Muting:
    • Input 1 Trigger Level: 25mV (approx.)
    • VOX Release Delay: 4 (+/- 1) sec.
    • Muting Level: > -60 dBr
  • Phantom Power: 12V DC min., 18V DC max.
  • Max. Ambient Temp.: 100 deg. F (non-condensing)
  • Thermal Emissions: 141.5 BTU/hr. (full power)
  • External Supply: 24V DC; 3A
  • Dimensions (WxHxD): 8-1/4” x 3-1/2” x 10-3/8”
  • Product Weight: 10 lb.
  • Listings: Listed to UL Standard 60065 for US and Canada
