Leviton FR2TH-22B
8" Fresnel with 20A Stage Pin and C Clamp

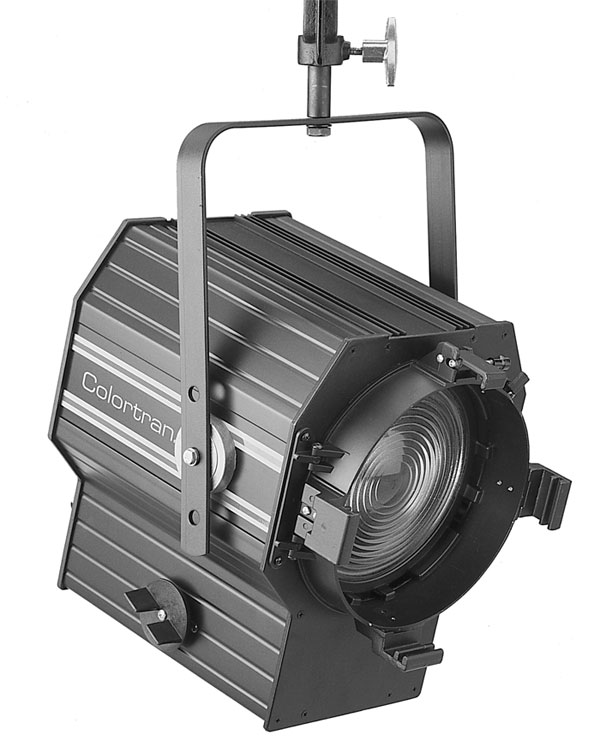

The NSI/Leviton 2K 8-Inch Theater Fresnel is a high intensity hanging spotlight with a smooth, even flood field.
Learn More
Our Price: $513.93
List Price: $562.29
You save 9%!
Write the first review.
Leviton FR2TH-22B
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The NSI/Leviton 2K 8-Inch Theater Fresnel is a high intensity hanging spotlight with a smooth, even flood field. Its superior ventilation system guarantees cool operation with extended bulb and gel life. All operating controls are thermally insulated for cool-handling. This fixture comes with a 20A male stage pin installed and also includes a "C" clamp.

Leviton FR2TH-22B Features:

  • High intensity spot with a smooth, even flood field
  • Lightweight, rugged aluminum construction
  • Superior ventilation system guarantees cooler unitoperation with extended lamp and gel life
  • All operating controls thermally insulated for safehandling during operation
  • Torlon® insulators provide smooth focusing operation
  • UL Listed, CSA Certified

Leviton FR2TH-22B Specifications:

  • Housing consists of die cast and extruded aluminumcomponents with high temperature black finish
  • The Optical Train consists of mogul prefocus tungstenhalogen lamp, an etched super pure aluminum clad reflector, 8" x 5" lowexpansion borsilicate fresnel lens mounted in a hinged door for rapid lampreplacement
  • The Socket is a mogul prefocus, porcelain insulated,UL recognized for 250 volts, 2500 watts, 200oC continuous operation.
  • The Performance with 176-194 (ANSI code BVW) lamp inspot focus is 358,000 beam candle power with 15.1o field, and in flood focusshall be 37,000 beam candle power with 63.5o field
  • For mounting this unit comes with a heavy steel yokeand a painted malleable iron C-clamp adjustable for up to 2" I.D. pipe, with atapped and threaded steel hanger pin. Accessories shall be mounted into frontdoor gel clips and secured with a positive locking safety clip
  • Also provided with 36" long 3 wire leads covered byblack sleeving and connector as specified by catalog number
  • Dimensions (WxHxD): 13.40" x 27.70"  x 15.70" (34 x 70.35 x39.80cm)
  • Weight: 19.5 lbs (8.77 kg)
