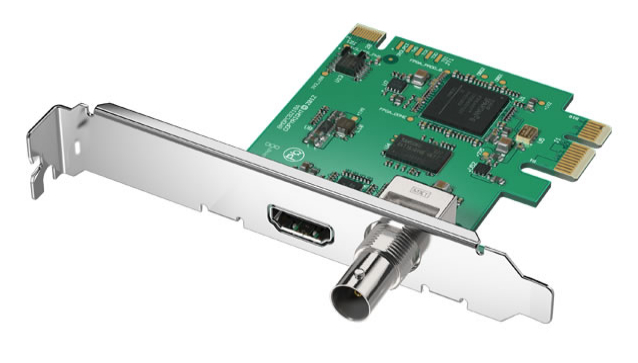

Blackmagic Design DeckLink Mini Monitor
SD/HD Video Monitoring PCI-E Card

OUR PART #:  DECKLINK-MINI-MON

Monitor uncompressed 10-bit video from your computer! Includes 3G-SDI and HDMI outputs for connecting to any television or monitor.
Learn More
Our Price: $137.75
List Price: $145.00
You save 5%!
Write the first review.
Blackmagic Design DeckLink Mini Monitor
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Monitor uncompressed 10-bit video from your computer! Includes 3G-SDI and HDMI outputs for connecting to any television or monitor. DeckLink Mini Monitor auto switches between SD and HD so it handles all common video formats. DeckLink Mini Monitor is the perfect solution for monitoring from editing software while you edit! Includes two PCIe shields for both full height and low profile slots.

Includes:

  • DeckLink Mini Monitor
  • Low profile slot bracket
  • Software CD

Blackmagic Design DeckLink Mini Monitor Specifications:

Connections:

  • SDI Video Output:  1 x 10 bit SD/HD switchable
  • SDI Audio Output:  8 channels embedded in SD and HD
  • HDMI Video Output:  1 x HDMI type A connector
  • HDMI Audio Output:  8 Channels embedded in SD and HD
  • Computer Interface:  PCI Express 1 lane, compatible with 1, 4, 8 and16 lane PCIe slots

Codecs:

  • Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL,DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

Software:

  • Software Included:
    MediaExpress, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, DiskSpeed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows7 or Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
  • Internal Software Upgrade:
    Firmware built into software driver. Loaded at system start or via updater software.
  • Physical Installation:
    PCIExpress 1 lane, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows 8 and Linux. Mac OS X systemsrequire a Mac Pro computer. Please check the Support pages to see the full system requirements.

Compatible with: DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo and Photoshop CC.

  • Other supported applications include: Avid Symphony,Avid News Cutter, Tools On Air just :in & live: cut & just: play & just: live, Softron On The Air, Movie Recorder and On The Air CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel Video Studio ProX4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, Caspar CG, Magicsoft CG, Xsplit Broadcaster, Harris Infocaster.

Video Standards:

  • SD Format Support:  625/25 PAL, 525/29.97 NTSC.
  • HD Format Support:  720p50, 720p59.94, 720p60, 1080PsF23.98,1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97,1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60.
  • SDI Compliance:  SMPTE 259M and 292M.
  • Audio Sampling:  Television standard sample rate of  48 kHz and24 bit.
  • Video Sampling:  4:2:2
  • Color Precision:  10-bit
  • Color Space:  REC 601, REC 709
  • HDMI Configuration:  HDMI automatically configures to connected display.
  • HDMI Resolution:  Pixel for pixel HD resolution input to connected device.
  • HDMI Color Precision:  10-bit
  • Multiple Rate support:  SDI and HDMI are switchable between betweenstandard definitlon and high definition.

Processing:

  • Colorspace Conversion:  Hardware based real time.
  • HD Down Conversion:  Software based down conversion during video playback.
  • Real Time Effects:  Apple Final Cut Pro™ internal effects. Adobe®Premiere Pro® Mercury Playback Engine effects. Avid Media Composer 6™ internal effects.

Operating Systems:

  • Mac OS X 10.7, 10.8, or later
  • Windows 7 or Windows 8
  • Linux

Physical Specifications:

  • Depth: 3.62 in.
  • Weight: 1.98 oz.

Warranty:

  • 3 Year Limited Manufacturer's Warranty. Excluding connectors, cables,cooling fans, fiber optic modules, fuses, keyboards and batteries which will be free from defects in materials and workmanship for a period of 12 monthsfrom the date of purchase.
