Allen Products/Adaptive Technologies EB375-S

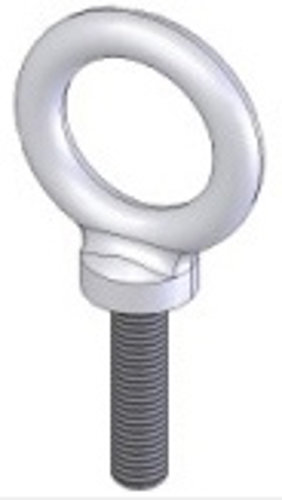

3/8-16"x1-1/2 Eye Bolt in Silver

OUR PART #:  EB375-S

All eyebolts and eye nuts, unless otherwise specified, are produced in the USA and structurally load-rated to an ultimate yield design factor of 5:1.
Learn More
Our Price: $9.60
List Price: $12.00
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen Products/Adaptive Technologies EB375-S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

All eyebolts and eye nuts, unless otherwise specified, are produced in the USA and structurally load-rated to an ultimate yield design factor of 5:1. The drop forge process assures that these parts are consistently manufactured to very exacting and predictable standards, especially important in overhead applications. The shoulder feature helps distribute side load forces into the object that it is attached too, rather than through its centerline.

When side loading the eyebolt, use the important working-load table and always side load forces in the direction of the arrows in the above illustrations, never through the center of the eye. There are no available working load values when side loading eye nuts. Use necessary caution when side loading eye nuts.

Allen Products EB375-S Specifications:

  • Diameter: 3/8?
  • Color: Silver
  • Design Factor: 5:1
  • Working Load Limit 0° (Vertical): 1400 lbs (636 kg)
  • Working Load Limit 45°: 350 lbs (175 kg)
  • Working Load Limit 90°: 280 lbs (127 kg)
