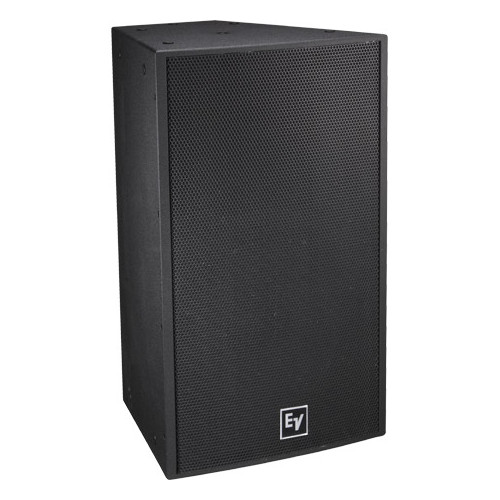

Electro-Voice EVF-1151S
EVF Series 15" 1600 Watt Peak Passive Installation Subwoofer

OUR PART #:  EVF1151S-BLACK

The Electro-Voice EVF-1151S single 15“ woofer is designed to work as a low frequency reinforcement unit for EVF Series products...
Learn More
Our Price: $1,639.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice EVF-1151S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The Electro-Voice EVF-1151S single 15“ woofer is designed to work as a low frequency reinforcement unit for EVF Series products, with equal footprint as the full range models that allows for perfect clustering in vertical and horizontal groupings.

Electro-Voice EVF-1151S Features:

  • Enhanced bass for installations
  • Low-distortion EVS15SB woofer
  • 99 dB sensitivity, 131 dB maximum SPL
  • Power: 400 W continuous, 1600 W peak
  • Trapezoidal 13-ply birch enclosure
  • EVCoat, PI, or fiberglass (FG) finish
  • M10 threaded suspension points (22)

Electro-Voice EVF-1151S Specifications:

  • Coverage (Nominal -6 dB):  Omnidirectional in normal operating range
  • Environmental Specs Standard versions:  IEC 60529IP44. PI and FG versions: IEC 60529 IP55
  • Input Connections:  Phoenix/Euroblock style screw terminals; PI and FG versions include dual-gland-nut input-panel cover
  • Internal Passive Low-Pass Filter:  100 Hz 12 dB per octave
  • Frequency Response (-3 dB):  67 - 95 Hz
  • Frequency Response (-10 dB):  46 - 124 Hz
  • Recommended High-Pass Frequency:  35 Hz
  • Sensitivity 1 W/1 m:  103 dB
  • Max. SPL/1m (calc):  135 dB
  • System Power Handling (Continuous/Program/Peak):  400, 800, 1600 Watts
  • LF Transducer:  EVS15SB, 15 in (381mm) Driver
  • Nominal Impedance (Passive):  4 Ohms, Biamp:  8 Ohms
  • Minimum Impedance (Passive):  3.4 Ohms, Biamp:  6.4 Ohms
  • Enclosure Material:  13-ply weather-resistant birch
  • Grille:  16-ga Galvanneal, Powder coat, with screen behind
  • Suspension:  (22) M10 Threaded Points (one EBK-M10-EVI kit of four forged eyebolts included)
  • Height:  30.26" (768.6 mm)
  • Width:  18.5" (470 mm)
  • Depth:  18.39" (467 mm)
  • Weight:  62.61 lbs (28.4 kg)
