DPA Microphones 4017B-R
Shotgun Microphone with Preamp & Rycote® Windshield

OUR PART #:  4017B-R

DPA Microphones has joined forces with Rycote® to develop the DPA 4017 Shotgun/Rycote® Windshield Solution.
Learn More
Our Price: $2,169.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4017B-R
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DPA Microphones has joined forces with Rycote® to develop the DPA 4017 Shotgun/Rycote® Windshield Solution. The strong suspension and windshield solution has been designed specifically to take the DPA 4017B shotgun mic’s compact size and light weight into consideration.

This kit provides everything an outside broadcaster, journalist or location film maker could need for clear, directional sound, regardless of the weather and environmental conditions.

Specifications:

  • Directional characteristics:  Supercardioid, lobe-shaped
  • Principle of operation:  Pressure gradient, with interference tube
  • Cartridge type:  Pre-polarized condenser
  • Frequency range:  20 Hz to 20 kHz
  • Frequency range, ± 2 dB:  70 Hz to 20 kHz, permanent third order high pass filter at 50 Hz
  • Sensitivity, nominal ± 2 dB at 1 kHz:  19 mV/Pa; -34.4 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Typ. 14 dB(A) re. 20 µPa (max. 15 dB(A))
  • Equivalent noise level, ITU-R BS.468-4:  Typ. 25 dB (max. 26 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 80 dB(A)
  • Total Harmonic Distortion (THD):  < 1 % up to 133 dB SPL peak
  • Minimum load impedance:  2 kohm
  • Dynamic range:  Typ. 119 dB
  • Max. SPL, peak before clipping:  138 dB
  • Filters:  High boost: +4 dB at 8 kHz. Low cut: First order filter, below 120 Hz
  • Output impedance:  < 150 ohm
  • Cable drive capability:  100 m (328 ft)
  • Output balance principle:  Signal balanced
  • Common Mode Rejection Ratio (CMRR):  > 40 dB
  • Power supply:  48 V Phantom power (± 4 V)
  • Current consumption:  4.5 mA
  • Connector:  XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: signal - phase
  • Color:  Matte black
  • Weight:  68 g (2.4 oz)
  • Microphone diameter:  19 mm (0.75 in)
  • Capsule diameter:  19 mm (0.75 in)
  • Microphone length:  212 mm (8.3 in)
  • Output voltage, RMS:  > 1.8 V
  • Polarity:  +V at Pin 2 for positive sound pressure
  • Temperature range:  -40 °C to 45 °C (14 °F to 113 °F)
  • Relative Humidity (RH):  Up to 90 %

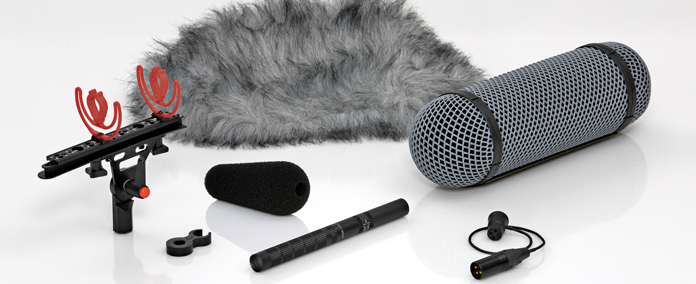

What's Included:

  • DPA 4017B Shotgun premounted in Rycote® Suspension with the Rycote® Windshield
  • DPA XLR cable
  • DPA Windscreen for 4017B
  • Rycote® fur windjammer
  • Rycote® XLR holder
  • Rycote® brush
