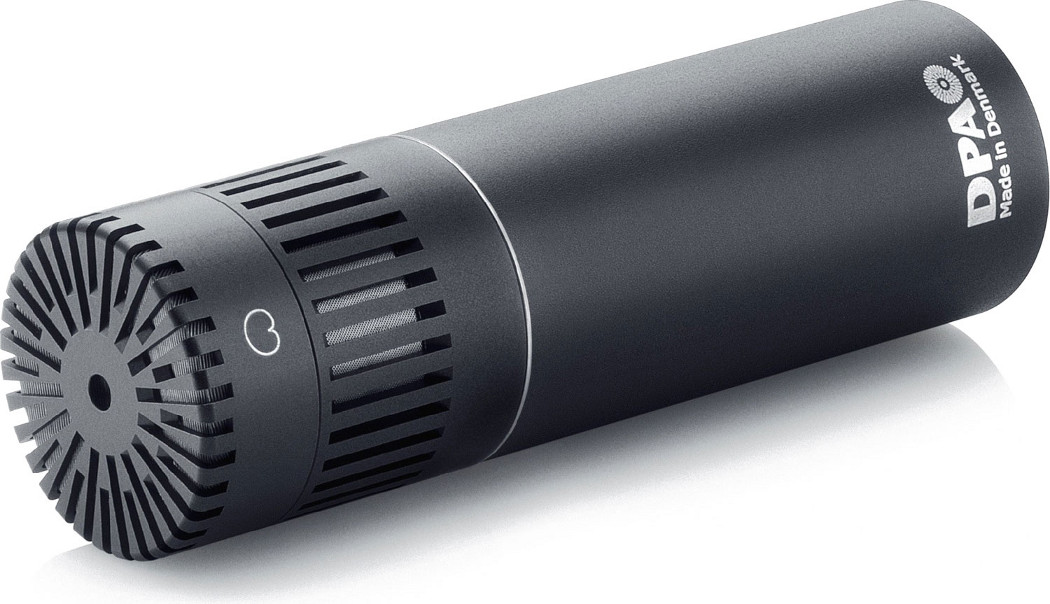

DPA Microphones 4011C
Compact Cardioid Microphone

OUR PART #:  4011C

DPA's Compact Cardioid range is proof that stunning clarity and absolute neutrality are not solely the characteristics of full-sized studio condenser mics alone.
Learn More
Our Price: $1,639.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones 4011C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

DPA's Compact Cardioid range is proof that stunning clarity and absolute neutrality are not solely the characteristics of full-sized studio condenser mics alone. Designed to be hidden from view, the diminutive design and high performance of the DPA 4011C makes it the outstanding choice for unobtrusively miking all types of television, film, theatre, concert and studio performances.

Capable of handling high SPLs without distortion, the 4011C is perfectly tailored for close-miking applications, minimizing bleed from other instruments. When used to spot-mike larger orchestras, these mics are hard to beat, and in film and TV studios, they are excellent for off-camera voice recording or Foley work. For live on-camera recordings, their matte black finish gives them a classic yet inconspicuous appearance, while for sound reinforcement in concert halls, theatres and houses of worship, they provide clean, natural sound while reducing the noticeable effect of lighting reflection.

Features:

  • Close-miking
  • Superior for high sound levels
  • Accuracy
  • Colorless

Specifications:

  • Directional characteristics: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz to 20 kHz
  • Frequency range, ± 2 dB: 40 Hz to 20 kHz
  • Sensitivity, nominal ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB)
  • Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
  • Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
  • Dynamic range: Typ. 121 dB
  • Max. SPL, peak before clipping: 152 dB
  • Minimum load impedance: 2 kohm
  • Output impedance: < 200 ohm
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle  Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 50 dB
  • Power supply (for full specifications): 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 58 g (2 oz)
  • Microphone diameter: 19 mm (0.75")
  • Capsule diameter 19 mm (0.75")
  • Length: 64 mm (2.5")
  • Output voltage, RMS: > 4 V
  • Polarity: +V at Pin 2 for positive sound pressure
  • Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH): Up to 90 %
  • Matching tolerance: ± 1 dB
  • Phase deviation for kit: < 10°
