DPA ST4011C Stereo Pair with Two 4011C Compact Cardioid Mics and Accessories

The DPA ST4011C is a complete stereo pair set with two carefully factory-matched first order 4011C cardioid microphones. Even though the tolerances on DPA Reference Standards are extremely low, a stereo match is even closer.

Whenever a small, lightweight, inconspicuous microphone with top-quality sound is required, the compact design and uniform unidirectional response of DPA'sversatile 4011C makes it the perfect choice. They are particularly popular as spot mics for classical recording and on-stage close mics for live sound.

The specially selected DPA 4011C microphones are matched within ±1 dB on both frequency response and sensitivity.

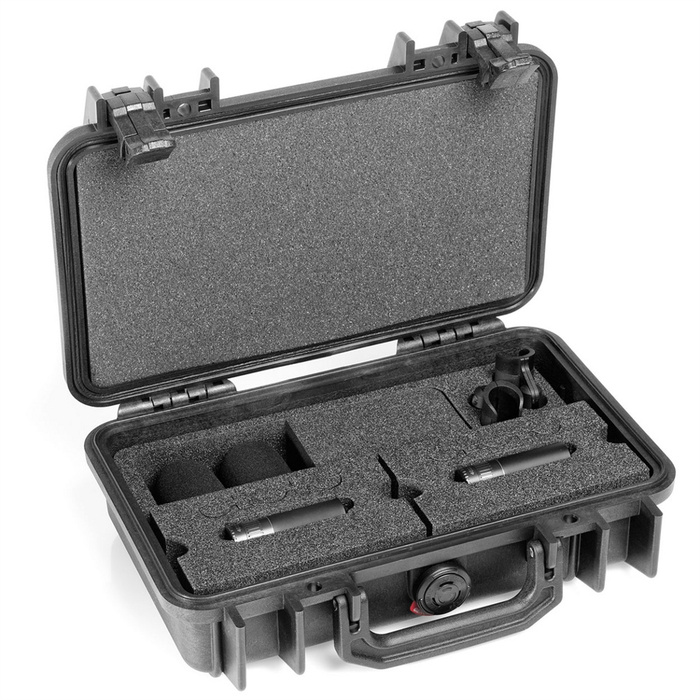

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

DPA Microphones ST4011C Specifications:

• Directional pattern: Cardioid
• Principle of operation: Pressure gradient
• Cartridge type: Pre-polarized condenser
• Frequency range: 20 Hz - 20 kHz
• Frequency range, ± 2 dB, at 30 cm: 40 Hz - 20kHz
• Sensitivity, nominal, ± 2 dB at 1 kHz: 10mV/Pa; -40 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 18dB(A) re. 20 µPa (max. 20 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 25dB
• S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dBSPL): Typ. 76 dB(A)
• Total Harmonic Distortion (THD): < 1 % up to139 dB SPL peak
• Dynamic range: Typ. 121 dB
• Max. SPL, peak before clipping: 152 dB
• Output impedance: < 200 ohm
• Minimum load impedance: 2 kohm
• Cable drive capability: 100 m (328 ft)
• Output balance principle: Impedance balancingwith Active Drive
• Common Mode Rejection Ratio (CMRR): > 50 dB
• Power supply (for full specifications): 48 VPhantom power (± 4 V)
• Current consumption: 2.8 mA
• Connector: XLR-3M
  • Pin 1: shield
  • Pin 2: signal + phase
  • Pin 3: - phase
• Color: Matte black
• Weight: 58 g (2 oz)
• Microphone diameter: 19 mm (0.75 in)
• Capsule diameter: 19 mm (0.75 in)
• Microphone length: 64 mm (2.5 in)
• Output voltage, RMS: > 4 V
• Polarity: +V at pin 2 for positive soundpressure
• Temperature range: -40 °C to 45 °C (-40 °F to113 °F)
• Relative Humidity (RH): Up to 90%
• Matching tolerance: ± 1 dB
• Phase deviation for kit: < 10°
