DPA Microphones ST2006C
Stereo Matched Pair of 2006C Compact Omidirectional Microphones

OUR PART #:  ST2006C

The DPA ST2006C is a complete stereo pair set with two handpicked 2006C compact omni microphones, selected based on sensitivity within ±1.5 dB.
Learn More
Our Price: $1,739.95
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


DPA Microphones ST2006C
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DPA ST2006C is a complete stereo pair set with two handpicked 2006C compact omni microphones, selected based on sensitivity within ±1.5 dB.

As a small, lightweight and inconspicuous main AB stereo pair the 2006Cs deliver precise acoustic fingerprint and true tone. Meeting classic architecture and installation requirements, the 2006C’s can be mounted, hung or concealed to create clean, transparent recordings.

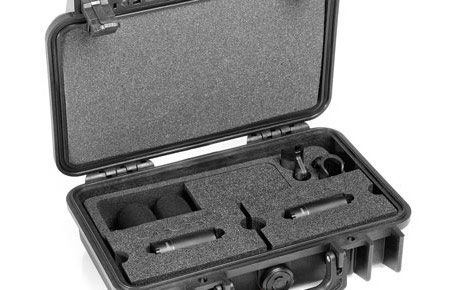

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.


  • Two carefully matched 2006C omni microphones
  • Sturdy Peli case
  • Holders
  • Windscreens


  • Directional pattern:  Omnidirectional
  • Principle of operation:  Pressure
  • Cartridge type:  Pre-polarized condenser, Twin Diaphragm Capsule
  • Frequency range:  20 Hz - 20 kHz
  • Frequency range, ± 2 dB:  50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
  • Sensitivity, nominal, ± 2 dB at 1 kHz:  40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted:  Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
  • Equivalent noise level, ITU-R BS.468-4:  Typ. 28 dB (max. 30 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL):  Typ. 78 dB(A)
  • Total Harmonic Distortion (THD) at 1 kHz:  < 1 % up to 130 dB SPL peak
  • Dynamic range:  Typ. 114 dB
  • Max. SPL, peak before clipping:  134 dB
  • Output impedance:  < 200 ohm
  • Minimum load impedance:  2 kohm
  • Cable drive capability:  100 m (328 ft)
  • Output balance principle:  Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR):  > 50 dB
  • Power supply (for full specifications):  48 V Phantom power (± 4 V)
  • Current consumption:  2.8 mA
  • Connector:  XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color:  Matte black
  • Weight:  60 g (2.1 oz)
  • Microphone diameter:  19 mm (0.75 in)
  • Microphone length:  58 mm (2.3 in)
  • Output voltage, RMS:  > 4 V
  • Polarity:  +V at pin 2 for positive sound pressure
  • Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH):  Up to 90%
  • Sensitivity selection tolerance (at 1 kHz):  ± 1.5 dB
