Williams AV PPA R37-00 Personal PA FM Receiver with Batteries and Belt Clip

OUR PART #: PPA-R37/00

Copied to clipboard

The PPA R37/00 package from Williams AV consists of a PPA R37 Personal PA FM Receiver with 2 AA alkaline batteries. ...Read more

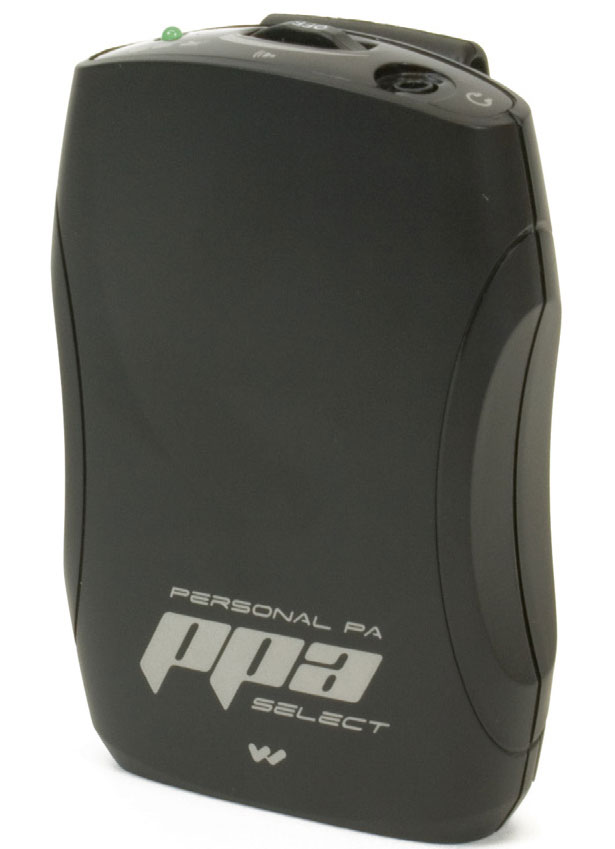

Williams AV PPA R37-00 Personal PA FM Receiver With Batteries And Belt Clip Image 1
Williams AV PPA R37-00 Personal PA FM Receiver With Batteries And Belt Clip
Our Price: $136.00
List Price: $150.00
You save 9%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The PPA R37/00 package from Williams AV consists of a PPA R37 Personal PA FM Receiver with 2 AA alkaline batteries.

PPA R37 Personal PA® FM Assistive Listening Receiver

With easy-to-use, seek-button channel selection offering access to 17 pre-set wideband frequencies between 72 and 76 MHz, flexible and simple aptly describes the PPA R37 from Williams AV. It's compatible with the following Williams AV transmitters (all sold separately): PPA T46, PPA T45, PPA T45NET, PPA T27. It's digitally-synthesized for even greater audio clarity plus stability. Its versatile onboard 3.5mm stereo/mono jack enables use with a variety of earphone and headphone options, and it features neckloop/telecoil-equipped-hearing-aid compatibility.

Please note:

  • Earphones/headphones are sold separately.
  • The Receiver requires a transmitter operating on 72-76 MHz. The Receiver is approved by the FCC for operation in U.S. Markets. The receiver cannot be used in all countries. Check with your government's radio regulations for 72-76 MHz operation.

System Applications

  • Hearing assistance
  • Language interpretation
  • Audio description
  • Disability compliance in:
    • Houses of worship
    • Performing arts centers
    • Football stadiums

PPA R37/00 System Includes

  • (1) PPA R37N Receiver
  • (1) BAT 001-2 AA Alkaline Batteries

PPA R37 Features

  • Seek-button access to all 17 wideband frequencies in the 72-to-76 MHz bandwidth
  • Channel-lock capability
  • Battery-saving sleep mode
  • Low-battery indicator
  • Field-tunable

PPA R37 Specifications

    • Dimensions: 4.1" x 2.85" x 1.38" (104 x 72 x 35mm)
    • Weight: 4.6 oz. (130 g) with batteries. 2.6 oz. (73 g) without batteries
    • Color: Black
    • Battery Type: (2) AA Alkaline or 2 x AA NiMH
    • Battery Life:
      • Two (2) AA non-rechargeable alkaline batteries (BAT 001), approx. 50 hrs.
      • Two (2) AA rechargeable NiMH batteries (BAT 026), 1500 mAh, approx. 32 hrs.
    • Current Consumption: 52 mA, nominal
    • Temperature Range: – 0 °C to 50 °C
    • Channels: 17, accessed via seek button in battery compartment
    • Operating Frequencies: 72.1, 72.2, 72.3, 72.4, 72.5, 72.6, 72.7, 72.8, 72.9, 74.7, 75.3, 75.4, 75.5, 75.6, 75.7, 75.8, 75.9 MHz
    • Intermediate Freq.: 75 kHz
    • FM Deviation: 75 kHz
    • De-Emphasis: 75 µS
    • LED Indicator: Power: Green; Low Battery: Flashes Green
    • AFC Range: ± 120 kHz
    • Sensitivity: 2 µV at 12 dB Sinad with squelch defeated
    • Input Overload: 100 mV
    • Frequency Response: 200 Hz to 15 kHz
    • Modulation: FM, +/- 75 kHz peak deviation
    • Signal-to-Noise Ratio: 65 dB min @ 100 uV
    • Receive Antenna: Integral with earphone/headphone cord
    • Audio Output: 35 mW max, peak into 16 Ω
    • Output Connector: 3.5 mm stereo/mono phone jack
    • Earphone: Earbud-type with foam cushion, 3.5mm plug, 32 Ω
    • Auto Shut-off: Enters sleep mode after approx 6 mins of no RF signal
    • Approvals: FCC, Industry Canada, RoHS, WEEE
    • Warranty: Lifetime PLUS Limited Warranty, 90 Days on most accessories.
    • Note: further information can be found within the items located under the "Documentation" tab above.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
