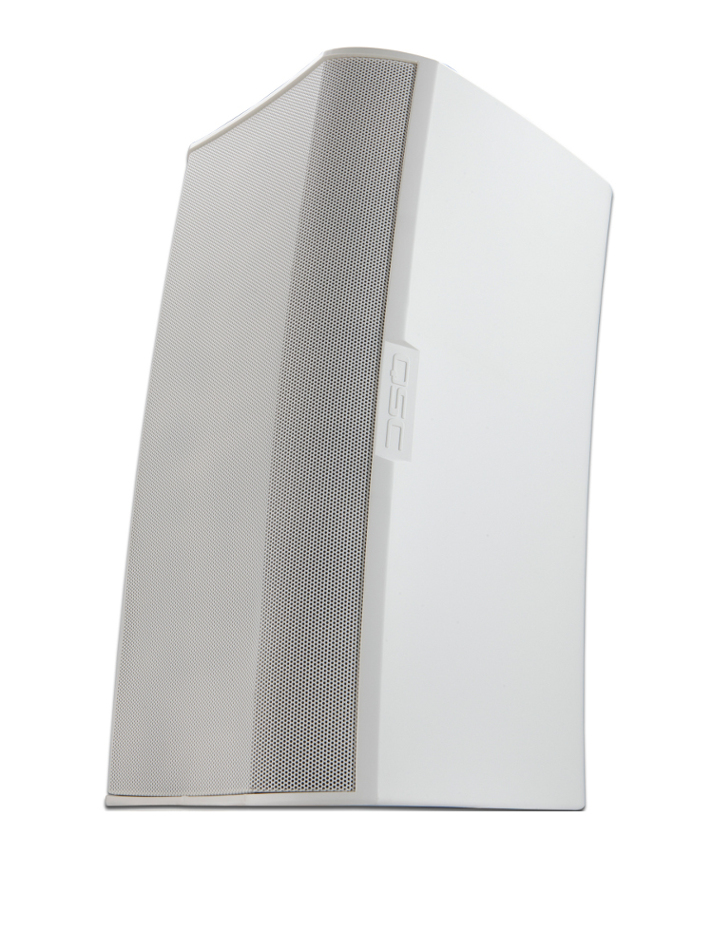

QSC AD-S12
AcousticDesign 12" Two-Way Speaker with M10 Install Points in White

OUR PART #  AD-S12-WHT

Our Price: $799.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

QSC’s AcousticDesign™ S12 surface mount loudspeakers are professional 12-inch, two-way, full-range systems ideal for a wide variety of foreground and background sound reinforcement applications. Ease-of-installation is the driving principle behind QSC’s next generation of small format, surface mount loudspeakers. Innovations found on AD-S loudspeakers enable designers and integrators to quickly and easily specify and install a system. AD-S loudspeakers are also a perfect solution to serve ancillary loudspeaker needs as part of a larger installed sound system.

Housed in rugged ABS enclosures for long-term durability, S12 loudspeakers employ DMT™ (Directivity Matched Transition) which matches the LF and HF coverage at the crossover point. This ensures even coverage across the listening plane for smooth, coherent audio reproduction. The 1.4in diaphragm, 1-in exit compression driver on the S12 delivers crisp, detailed high-frequency reproduction and when combined with the matched woofers, provides full bandwidth reproduction. To further enhance performance, tunings using QSC Intrinsic Correction techniques are available for Q-Sys and future QSC amplifiers.

Installers will appreciate flexible mounting options. Euroblock connectors allow pre-wiring of the system and the included X-Mount hardware enables the installer to mount the bracket and then simply lift the loudspeaker onto the mount and lock it into place. Moreover, the loudspeaker can attach to its mount on any plane to facilitate multiple deployment configurations.

AD-S loudspeakers can easily be mounted to any weight bearing, flat surface. Knurled surfaces on the mount’s pivot points ensure that the loudspeaker deployment angle stays fixed and will not slip over time. No special tools are required to install or adjust the loudspeaker angle. S12 models also feature M10 installation points for suspending the loudspeaker via eye-bolts as well as mounting points for an optional yoke bracket.

S12 loudspeakers meet IEC60529 IP-54 for dust and splash resistance and feature sealed input panels and powder coated aluminum grilles for added weather resistance.

Presenting a clean, unobtrusive look, AD-S grilles are unadorned eliminating the need to cover obtrusive logo treatments. AD-S loudspeakers are available in either black (RAL 9011) or white (RAL 9010) and may be painted to match any décor.

To minimize impact and disposal fees at the job site, all AD-S loudspeakers are packaged in environmentally friendly, recyclable cartons.

QSC AD-S12 Features:

  • DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • Patent pending X-Mount™ enables the loudspeaker to be easily installed and deployed at a variety of angles without slipping over time
  • Optional yoke mount and M10 Kit-C eyebolt kit offers additional loudspeaker deployment options
  • Euroblock connectors allows pre-wiring of the system
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance

QSC AD-S12 Specifications:

  • Effective Frequency Range (Free-field, -10 dB from on-axis sensitivity):  52 Hz - 20 kHz
  • Rated Noise Power / Voltage (IEC60268-1 noise signal for 2 Hrs):  300 Watts / 50 Volts (rms)
  • Broadband Sensitivity (On-Axis, free-fieldsensitivity, 2.83V, 1 m):  95 dB SPL
  • Coverage Angle (-6 dB):  75°
  • Directivity Factor (Q):  12
  • Directivity Index:  11 dB
  • Maximum Continuous SPL (Calculated from rated noisevoltage and sensitivity):  120 dB
  • Maximum Peak SPL (Calculated from rated noise voltageand sensitivity):  126 dB
  • Rated Impedance:  8 Ohms
  • Recommended Amplifier Power:  600 Watts
  • HF Transducer:  1” exit / 1.4” voice-coil compression driver
  • LF Transducer:  12” weather resistant paper cone woofer, 3” / 76 mm voice-coil
  • Input Connector Type:  Euroblock connector with parallel output terminals
  • Enclosure Material:  Painted ABS polymer
  • Grille Material: Powder coated aluminum
  • Ingress Protection:  IP-54
  • Operating Environment:  Designed for indoor and outdoor use
  • Testing:
    • The AD Series loudspeakers qualified for outdoor use using the following tests:
      • Salt Fog:  MIL-STD-810G Method 509.5 for 100 hrs.
      • Humidity:  MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days
      • High and Low Temperature:  Tested according to QSC internal standards between -20° and 50° C
  • Operating Temperature Range:  -20 to 50 °C / -4 to 122 °F
  • Net Weight:  35.2 lbs (16 kg)
  • Product Dimensions:  23.4” x 13.9” x 12.7” (594 x 354 x 323 mm)
  • Shipping Weight:  46.3 lbs / 21 kg
  • Shipping Dimensions: 34.5” x 17.9” x17.2” (765 x 455 x 437 mm)
  • Included Accessories:  X-Mount mounting system, euroblock connector, input panel cover
  • Optional Accessories:  YMS12 yoke mount, M10Kit-C (sold separately)
