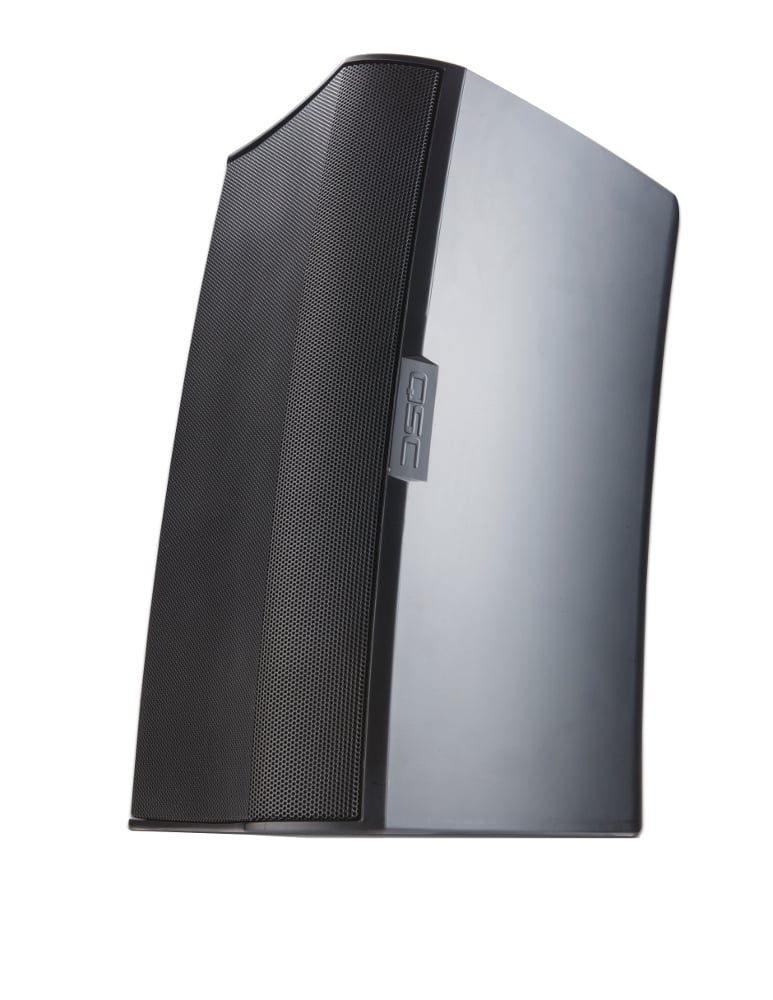

QSC AD-S10T
AcousticDesign Surface Mount 10" 2-Way Speaker for 70/100V Distributed Audio Lines with M10 Install Points, in Black

OUR PART #:  AD-S10T-BLK

QSC's S10T is part of their AcousticDesign™ series of surface mount loudspeakers that are professional quality, 70/100V, 10"...
Learn More
Our Price: $670.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

QSC AD-S10T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

QSC's S10T is part of their AcousticDesign™ series of surface mount loudspeakers that are professional quality, 70/100V, 10", 2-way, full-range systems that are ideal for a wide range of foreground and background sound reinforcement uses. Ease-of-installation is the driving principle behind these next-generation small format, surface mount loudspeakers. Innovations found on AD-S loudspeakers let designers and integrators quickly and easily specify and install a system. AD-S loudspeakers are also a perfect solution to serve ancillary loudspeaker needs as part of a larger installed sound system. This particular model features a black finish.

Housed in rugged ABS enclosures providing long-term durability, S10T loudspeakers include DMT™ (Directivity Matched Transition) which matches the LF and HF coverage at the crossover point. This ensures even coverage across the listening plane for smooth, coherent audio reproduction. The 1.4" diaphragm, 1" exit compression driver on the S10T delivers crisp, detailed high-frequency reproduction and when combined with the matched woofers, provides full bandwidth reproduction. To further enhance performance, tunings using QSC Intrinsic Correction techniques are available for Q-Sys and future QSC amplifiers. Moreover, the low saturation transformers offer premium performance on 70/100V distributed audio lines.

Installers will appreciate their flexible mounting options. Euroblock connectors allow pre-wiring of the system, and the included X-Mount™ hardware allows the installer to mount the bracket and then simply lift the loudspeaker onto the mount and lock it into place. Moreover, the loudspeaker can attach to its mount on any plane to facilitate multiple deployment configurations. These units also feature M10 installation points for suspending the loudspeaker via eye-bolts as well as mounting points for an optional (sold separately) yoke bracket.

S10T loudspeakers meet IEC60529 IP-54 for dust- and splash-resistance, plus feature sealed input panels and powder coated aluminum grilles for added weather resistance.

QSC AD-S Loudspeaker Series
AD-S loudspeakers can easily be mounted to any weight bearing, flat surface. Knurled surfaces on the mount's pivot points ensure that the loudspeaker deployment angle stays fixed and will not slip over time. No special tools are required to install or adjust the loudspeaker angle. Presenting a clean, unobtrusive look, AD-S grilles are unadorned, eliminating the need to cover obtrusive logo treatments. To minimize impact and disposal fees at the job site, all AD-S loudspeakers are packaged in environmentally friendly, recyclable cartons.

Applications include:

  • Restaurant
  • Retail
  • Audio Visual
  • Education
  • Concourses
  • Casinos
  • Transportation Terminals
  • Worship Facilities
  • Large System Ancillary Support

QSC AD-S10T Features:

  • DMT (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
  • Patent pending X-Mount enables the loudspeaker to be easily installed and deployed at a variety of angles without slipping over time
  • Optional yoke mount and M10 Kit-Ceyebolt kit (both sold separately) offer additional loudspeaker deployment options
  • Euroblock connectors allows pre-wiring of the system
  • Low saturation 70/100V transformers with 8 Ohm bypass
  • Lightweight ABS enclosures offer long-term durability and lasting good looks
  • Sealed input panel cover and powder-coated aluminum grilles for added weather resistance
  • Meets IEC60529 IP-54 for dust and splash resistance

QSC AD-S10T Specifications:

  • Effective Frequency Range (Free-field, -10 dB from on-axis sensitivity): 50 Hz - 19 kHz
  • Rated Noise Power/Voltage (IEC60268-1 noise signal for 2 Hrs): 250W/45V (RMS)
  • Broadband Sensitivity (On-Axis, free-field sensitivity, 2.83V, 1 m): 92 dB SPL
  • Coverage Angle (-6 dB): 90 degrees
  • Directivity Factor (Q): 10
  • Directivity Index: 10 dB
  • Maximum continuous SPL (Calculated from rated noise voltage and sensitivity): 116 dB
  • Maximum peak SPL (Calculated from rated noise voltage and sensitivity): 122 dB
  • Rated Impedance: 8 Ohms
  • Recommended Amplifer Power: 500W
  • Transformer Taps:
    • 70V: 100, 50, 25, 12.5 watts and 8 Ohm bypass
    • 100V: 100, 50, 25 watts and 8 Ohm bypass
  • HF Transducer: 1" exit/1.4" voice coil compression driver
  • LF Transducer: 10" weather-resistant paper cone woofer, 2.5" (64 mm) voicecoil
  • Input Connector Type: Euroblock connector with parallel output terminals
  • Enclosure Color: Black
  • Enclosure Material: Painted ABS polymer
  • Grille Material: Powder-coated aluminum
  • Ingress Protection: IP-54
  • Operating Environment: Designed for indoor and outdoor use
    • The AD Series loudspeakers qualified for outdoor use using the following tests:
      • Salt Fog: MIL-STD-810G Method 509.5 for 100 hrs.
      • Humidity: MIL-STD-810GMethod 507.5, Natural cycle B2, cyclic high RH for 7 days
      • High & Low Temperature: Tested according to QSC internal standards between -20° C and 50° C
  • Operating Temperature Range: -4° F to 122° F (-20° C to 50° C)
  • Net Weight: 31 lbs (15 kg)
  • Dimensions: 20.3" x 12.5" x 11.7" (516 x 318 x 298mm)
  • Shipping Weight: 40.6 lbs (18.45 kg)
  • Shipping Dimensions: 31.7" x 16.1" x 16.1" (805 x 409 x 409mm)
  • Included Accessories: X-Mount mounting system
  • Optional Accessories (sold separately): YMS10T yokemount, M10 kit-C
