Roland System Group VC-1-SH
SDI to HDMI Video Converter

OUR PART #:  VC-1-SH

The Roland VC-1-SH, part of their VC-1 series of video/audio converters...
Learn More

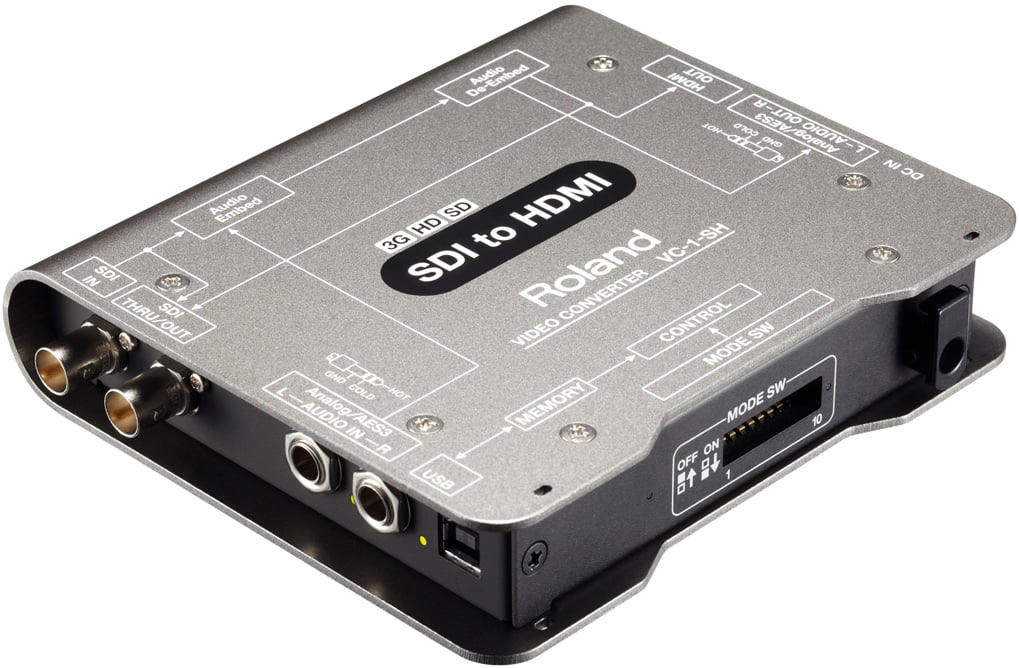

Roland Systems Group VC-1-SH
Roland Systems Group VC-1-SH - Right Side View
Roland Systems Group VC-1-SH - Left Side View

Click a thumbnail to see more images. (7 total)

Our Price: $495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Roland System Group VC-1-SH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Roland VC-1-SH, part of their VC-1 series of video/audio converters, is engineered for the conversion of video and audio signals from SDI input to HDMI output. Sometimes the cost of SDI monitoring can be prohibitive for certain applications.The VC-1-SH converter lets you convert an SDI signal to HDMI, offering a more cost-effective monitoring solution. It is also complimentary to the Roland V-40HD multi-format video mixer (sold separately) when you want to use an SDI camera as an input to the mixer.

Roland Video Converters
Roland's video converter series addresses the demand for high-quality, lossless video and audio converters used in live/post production as well as installed systems.

By maintaining the video characteristics of the original input signal with rich-blacks and super-whites, the VC-1 Video Converter series delivers uncompromising picture quality. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.

The VC-1 series is HDCP compliant. This allows you to convert or pass-through HDCP signals, except for any SDI output. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

Roland VC-1-SH Includes:

  • VC-1-SH unit
  • AC adapter/Power Cord
  • (4) Rubber Feet
  • User Manual

Roland VC-1-SH Features:

  • SDI to HDMI conversion
  • Lossless image conversion
  • 3G (Level A&B)/HD/SD SDI
  • HDCP support
  • VC-1 RCS, PC/Mac control application
  • Selectable channel for embedded/de-embedded audio

Roland VC-1-SH Specifications:

Input:

  • SDI Connector: BNC type x1
  • Analog Audio Connector: 1/4" TRS phone type (balanced) x1 pair (L/R)
  • Digital Audio Connector: 1/4" TRS phone type (balanced) x1 (Combined use with Analog Audio R ch Connector)

Processing: Audio embedding Audio de-embedding

Output:

  • SDI Connector: BNC type x1 (Thru/Out)
  • HDMI Connector: Type A (19 pins) x1
  • Analog Audio Connector: 1/4" TRS phone type(balanced) x1 pair (L/R)
  • Digital Audio Connector: 1/4" TRS phone type (balanced) x1 (Combined use with Analog Audio R ch Connector)

Input/Output Format:

  • SDI Input Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
  • SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
  • Audio Format: Linear PCM, 24-bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
  • HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
  • HDMI Input Audio Format: Linear PCM, 24-bit, 48 kHz, 8 ch
  • SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
  • SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5)
  • SDI Output Audio Format: Linear PCM, 24-bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
  • HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i,1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
  • HDMI Output Audio Format: Linear PCM, 24-bit, 48 kHz, 8 ch

Audio Input/Output:

  • Analog Audio Input Level: +4 dBu
  • Analog Audio Maximum Input Level: +24 dBu
  • Analog Audio Input Impedance: 110 Ohms
  • Analog Audio Output Level: +4 dBu
  • Analog Audio Output Impedance: 600 Ohms
  • Digital Audio Output Signal Format: AES3, 16-/24-bits, 32/48 kHz, 2 ch
  • Digital Audio Output Impedance: 110 Ohms
  • 0 dBu = 0.775 V rms

Others:

  • USB Connector: USB Type B (Hi-Speed USB) x1
  • Power Supply: DC 9V
  • Power Consumption: 8W
  • Operating Temperature: +32° F to +104° F (+0° C to +40° C)
  • Dimensions (WxDxH): 5-15/16" x 5-1/8" x 1-3/16" (150 x 130 x 30mm)
  • Weight: 1 lb, 2 oz. (500 g)
  • Typical Physical Configuration Diagram (Note: all components shown OTHER THAN the VC-1-SH are sold separately):

  • Software Device Configuration screen capture:
