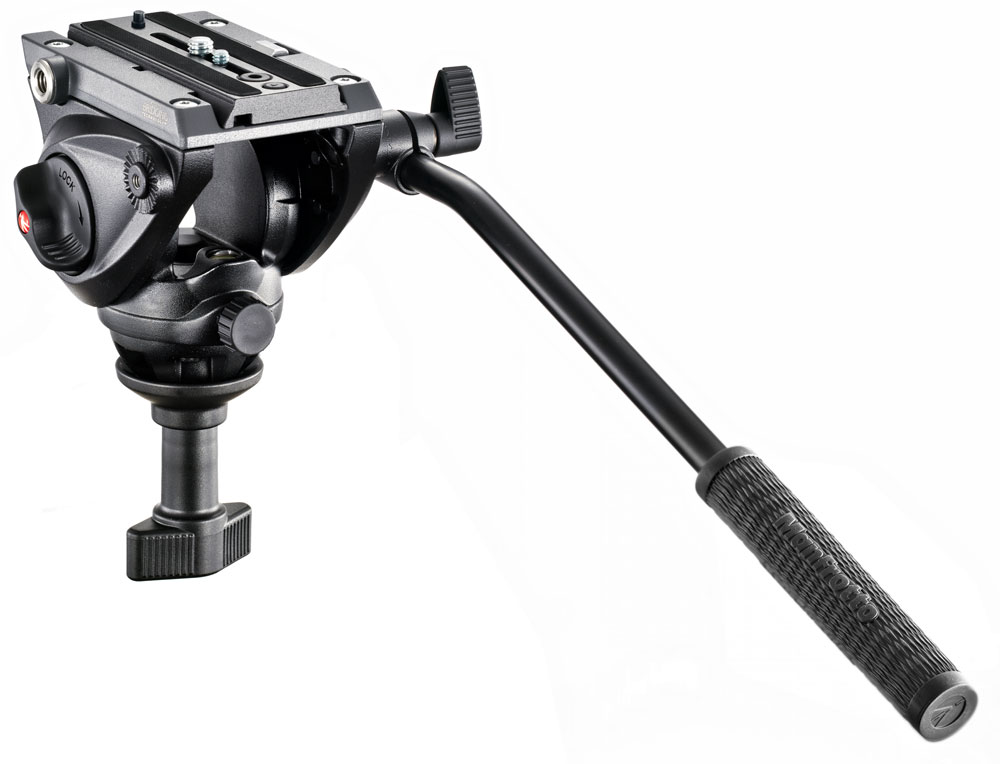

Manfrotto MVH500A
Lightweight Pro Fluid Video Head with 60mm Half Ball


The MVH500A is a lightweight head with a wider platform for HDSLR bodies and the sliding plate travels to balance the latest interchangeable lens cameras.
Learn More
Our Price: $179.99
List Price: $205.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Manfrotto MVH500A
In Stock

Similar Products

The MVH500A is a lightweight head with a wider platform for HDSLR bodies and the sliding plate travels to balance the latest interchangeable lens cameras. The entry-level 500 ensures smooth shots and fine control with up to 5kg (11 lbs) of equipment.  It’s the most compact head in Manfrotto's successful Bridging Technology™ range.

MVH500A is supplied with a 60mm half ball video tripod mount and it also replaces the Manfrotto 701HDV video head. Beautifully smooth shots: the 500 has professional fluid cartridges on both pan and tilt axes to ensure that every camera movement is smooth, controlled and precise.  Faster, easier and safer to use: the side lock system allows the camera and sliding QR plate to click quickly into the head from above, instead of needing to be aligned and slid in from the back. No secondary safety lock is necessary. The side lock system also makes it quicker and simpler to lift the camera out of the head from above.  The 500 has a pre-set counterbalance of 5.3 lbs (2.4 kg), but is able to support equipment of up to 11 lbs (5 kg). The 500 has one Easy Link 3/8" connector to allow an external monitor or other accessory equipment to be fitted.

Manfrotto MVH500A Specifications:

  • Attaches By: 1/4" and 3/8"
  • Attachment: 3/8" screw
  • Bubble Spirit Level (No.): 1
  • Center of Gravity: 2.16" (55 mm)
  • Color: black
  • Front Tilt: -70° / +90° tilt range
  • Head Bowl: 60mm
  • Independent Pan Lock: yes
  • Independent Tilt Lock: yes
  • Lateral Tilt: -70° / +90° tilt range
  • Material: aluminum
  • Maximum Working Temperature: 140° F
  • Minimum Working Temperature: -4° F
  • Pan Bar Positions: 2
  • Pan Bars Included (No.): 1
  • Pan Drag: fluid cartridge with fixed drag
  • Panoramic Rotation: 360 degrees
  • Plate Type: 500PLONG
  • Quick Release: yes
  • Safety Payload Weight: 11 lbs (5 kg)
  • Secondary Safety System: yes
  • Spring Loaded Counter Balance: yes
  • Counterbalanced Payload: 5.3 lbs (2.4 kg)
  • Tilt Drag: fluid cartridge with fixed drag
  • Weight: 2.47 lbs (1.12 kg)
  • Working Height: 4.96" (12.6 cm)
