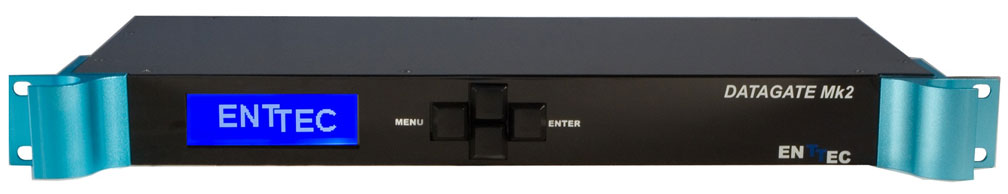

Enttec Datagate MK2 DMX Network Management Device, 8 Bi-Directional DMX Ports and Ethernet Port

The Datagate is an extremely flexible bridge between control and fixtures/dimmers. It can form the backbone of a network, provide optical isolation, merge levels from multiple streams, and translate between DMX and Ethernet protocols. With the new Datagate Mk2, changing your DMX signal path has never been easier. Just draw lines between the available building blocks and you’re done. A truly revolutionary way to configure your network.

Applications

• University / Professional Theatres
• Architectural Installations
• Touring Companies / Road Houses
• Performing Arts Centers
• Trade Shows

Includes

• Datagate Mk2 (pn:70044)
• Cross-over Ethernet lead (pn:79101)
• Straight connect Ethernet lead (pn:79102)
• IEC power cord (Australia & North America only)
• User manual
• CD (pn:79106)

Features

• DMX Hub/Splitter
• DMX Merger (HTP or LTP)
• DMX -> Ethernet
• Ethernet-> DMX
• RDM Gateway
• RDM Sensor Info Gather / Report
• DMX shifting
• 32 scene Architectural Playback
• Simple Scene Playback or Test Frame Generation
• Hot Spare for another Datagate

Specifications

• 8 RDM enabled 1500V isolated DMX ports
• Break time configurable for each DMX port (88us to 1ms)
• DMX Refresh rate configurable for each port (2Hz -> 44Hz)
• Number of channels configurable for each port (1 to 512)
• Profiles may be selected and viewed with front panel menus or with web browser over Ethernet LCD display
• Profile storage on hard drive or import/export to USB key or FTP
• Supports Art-Net 1, Art-Net 2, ESP, KiNeT
• Merge HTP, Merge LTP, Priority Merge, DMX Generator and DMX Switcher profile blocks
• 10/100/1000 base-T Ethernet port
• Jumbo frame support
• Inbuilt autoranging (90-260V) mains power supply
• Option DC 12->48V power (optional)
• Rack mountable (19" x 1U)
• Integral cooling fan
• Dimensions (HxWxD):
  • 1.72” x 18.25” x 10” (43.6mm x 463mm x 250mm)
