Product Overview
The HVS-390HS 1M/E from FOR-A is a Video Switcher Package that is highlighted by the Hanabi HD/SD 1M/E Switcher and comes with the HVS-391OU 20 Button Panel, 16 HD/SD-SDI Inputs, 8 HD/SD-SDI and 1 HDMI Outputs, Frame Synchronizer on each Input, 4 Channels of Resize Engine, a Maximum of 24 Inputs, 13 Outputs, 4 Keyers with 2.5D DVE per M/E, 2 Chroma Keyers, 2 Independent 16 Channel Multi Viewer Outputs, 4 Still Stores, 60 Frame Clip Player and Redundant Power Supplies.
The HANABI HVS-390HS 1M/E can be upgraded to 2M/E. You can choose what size or type of control you prefer and what fits your environment. From the 19” rack mount 12 button panels (1M/E or 2M/E), all the way up to the operator designed 2M/E 28 button panel. As well as traditional control panels, there is also the choice of simple remote panel, included Web browser control, and FOR-A's range of AUX control panels. All control choices are easy to operate, for safe, reliable and repeatable LIVE operation!
What's in the FOR-A HVS-390HS 1M/E Box:
- HVS-390MU1ME ("Hanabi" HD/SD 2M/E Switcher)

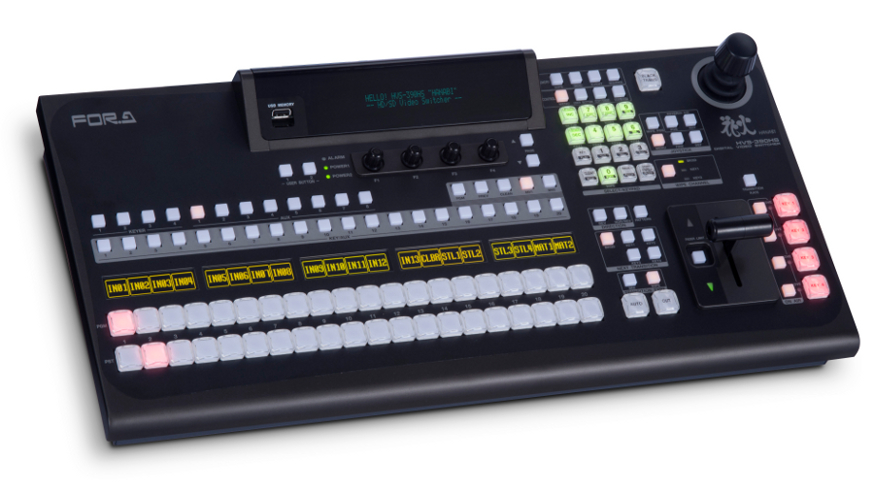

- HVS-391OU (20 Button Panel)
- HVS-39PSO (Redundant Power Supply for Operation Unit)
- HVS-39PSM (Redundant Power Supply for Main Unit)
FOR-A HVS-390HS 1M/E Features:
- Standard Features Include:
- 4 x Keyers on each M/E, including 2 high quality Chroma keyers, can be used as keyers and/or Picture in Picture
- Freely assign up to 4 x keyers to an AUX output or M/E output (2 from M/E 1, 2 from M/E 2)
- All keyers include DVE with resize and perspective/tilt, etc. (2.5D)
- 2 x 3D DVEs on each M/E for background and keyer transitions
- CG Wipe engine on each M/E offering animated wipe/mix transitions
- ‘Next transition’ including direction for all keyers and background on each M/E, as well as FOR-A’s On-Air programmable transition section
- Included Web Browser GUI gives total control and set up from a connected device such as PC, Mac, or Tablet, etc.
- FTP access for stills and clip sequences, plus built-in USB for stills
- Increase the number of stills by using spare inputs as extra still stores
- The Web Browser provides an easy way to edit: Macros, Event Memories and key-frame sequences
- Industry leading color correction with 2 per M/E, assignable for inputs or entire bus
- 4 clip store capability with up to 60 frames in each clip store (HVS-39MEM option provides 120 frames)
- Option to save stills and clips to internal memory (HVS-39MB)
- Redundant PSU for both Main and Control Panel available, hot-swappable from the front of the MU
- Safe-area generator and audio monitoring are selectable and adjustable per window on internal multi-viewer layouts
- 2 x Multi-viewer outputs in HD Mode, each with selectable layouts
- Standard interface for multiple external device control, including audio mixers, routers, and VTR/VDCP units via RS-422 and VDCP
- Individually switchable frame synchronizer on each input
- 4 x Upconverters are standard—expandable to 12
- 16 inputs are standard, expandable to 24 with optional HD/SD-SDI, DVI, VGA, composite or component cards
- 8 outputs plus 1 x HDMI output are standard, expandable to 13 with optional HD/SD-SDI, DVI, VGA, composite or component cards
- Depending on configuration and usage, HVS-390HS has a minimum delay of 1 line in HD
- Up to 100 m BNC cable can be used to connect Mainframe and control panel
- Dedicated Black Burst or Tri-Level sync output
FOR-A HVS-390HS 1M/E Specifications:
- Please consult the data sheet available in the documentation tab.
