Tripp Lite B126-1A0-WP-1
HDMI Over Cat5 Active Extender Remote Receiver Wallplate

OUR PART #  B126-1A0-WP-1

Our Price: $142.80
List Price: $192.00
You save 26%!
In Stock

The B126-1A0-WP-1 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image, and RJ45 jacks for easy connection with Cat5e/6 patch cable. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.

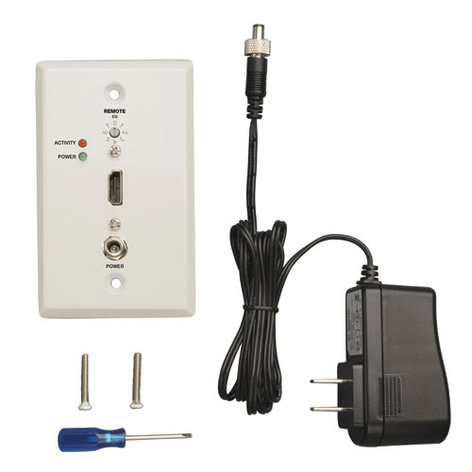

Tripp Lite B126-1A0-WP-1 Includes:

  • B126-1A0-WP-1 HDMI Over Cat5 Active Extender Remote Wallplate
  • Screwdriver for adjustment of Equalization (Skew)
  • Wallplate mounting hardware
  • External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's manual

Tripp Lite B126-1A0-WP-1 Features:

  • For use with the B126-002 and B126-004 transmitterunits
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channelsurround sound audio (7.1 channel surround sound signal will be Multi-Channelor PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Can further expand the range and number of monitorsby adding repeaters
  • Compliant with the Federal Trade Agreements Act (TAA)for GSA Schedule purchases
  • A 1080p (60Hz) signal can be transmitted up to 150ft.
  • A 1080i (60Hz) signal can be transmitted up to 200ft.
  • A 3D signal can be transmitted up to 125 ft.
  • Add up to three repeaters, with a receiver unitlocated at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ftfor each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
  • A 1080i (60Hz) signal can be extended up to 175 ftfor each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
  • A 3D signal can be extended up to 100 ft for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signalcan be extended up to 400 ft.

Tripp Lite B126-1A0-WP-1 Specifications:

  • Cable Type  HDMI
  • Display Style  Extender
  • Unit Dimensions (HWD/cm)  4.5 x 2.75 x 1
  • Mounting accessories included  Yes
  • Color  White
  • Connector A  HDMI (Female)
  • Connector B  RJ45 (Female)

Tripp Lite B126-1A0-WP-1
HDMI Over Cat5 Active Extender Remote Receiver Wallplate

OUR PART #  B126-1A0-WP-1

Product Information:

The B126-1A0-WP-1 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image, and RJ45 jacks for easy connection with Cat5e/6 patch cable. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).

Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.

Tripp Lite B126-1A0-WP-1 Includes:

  • B126-1A0-WP-1 HDMI Over Cat5 Active Extender Remote Wallplate
  • Screwdriver for adjustment of Equalization (Skew)
  • Wallplate mounting hardware
  • External power supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner's manual

Tripp Lite B126-1A0-WP-1 Features:

  • For use with the B126-002 and B126-004 transmitterunits
  • HDCP and 3D compatible
  • Compatible with both stereo audio and 7.1 channelsurround sound audio (7.1 channel surround sound signal will be Multi-Channelor PCM)
  • Supports 24-bit True Color (8-bits per channel)
  • Can further expand the range and number of monitorsby adding repeaters
  • Compliant with the Federal Trade Agreements Act (TAA)for GSA Schedule purchases
  • A 1080p (60Hz) signal can be transmitted up to 150ft.
  • A 1080i (60Hz) signal can be transmitted up to 200ft.
  • A 3D signal can be transmitted up to 125 ft.
  • Add up to three repeaters, with a receiver unitlocated at the end of the installation, for a total of 4 displays.
  • A 1080p (60Hz) signal can be extended up to 125 ftfor each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080p (60Hz) signal can be extended up to 500 ft.
  • A 1080i (60Hz) signal can be extended up to 175 ftfor each repeater in the installation. In a full 4 level chain (3 repeaters, 1receiver), a 1080i (60Hz) signal can be extended up to 700 ft.
  • A 3D signal can be extended up to 100 ft for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signalcan be extended up to 400 ft.

Tripp Lite B126-1A0-WP-1 Specifications:

  • Cable Type  HDMI
  • Display Style  Extender
  • Unit Dimensions (HWD/cm)  4.5 x 2.75 x 1
  • Mounting accessories included  Yes
  • Color  White
  • Connector A  HDMI (Female)
  • Connector B  RJ45 (Female)
