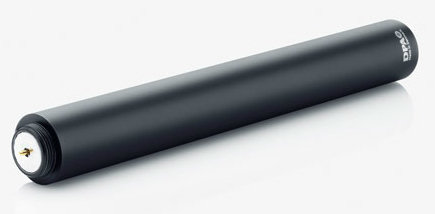

DPA Microphones MMP-A
In-Line Microphone Preamp, with Switchable Pad

OUR PART #:  MMP-A

Ultra transparent transformerless preamplifier with active drive for impedance balancing. Combine this preamp with any capsule in the DPA Reference Standard series.
Learn More
Our Price: $509.95

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DPA Microphones MMP-A
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Ultra transparent transformerless preamplifier with active drive for impedance balancing. Combine this preamp with any capsule in the DPA Reference Standard series.

Specifications:

  • Output connector:  XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Low-cut frequency, -3 dB:  8 Hz
  • Noise with shorted input, A-weighted:  0.5 µV
  • Output voltage, RMS:  > 5 V
  • Output voltage, peak:  > 16 V
  • Type of electronic circuit:  Active
  • THD @ 1VRMS, 1kHz:  < 0.2 %
  • Dynamic range:  138 dB
  • Switchable attenuator:  0 dB, -20 dB
  • Output impedance:  < 200 ohm
  • Output balance principle:  Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR):  > 60 dB
  • Power supply (for full specifications):  48 V Phantom power (± 4 V)
  • Current consumption:  2.8 mA
  • Color:  Matte black
  • Weight:  140 g (4.9 oz)
  • Diameter:  19 mm (0.75 in)
  • Length:  147 mm (5.8 in)
  • Cable drive capability:  100 m (328 ft)
  • Temperature range:  -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH):  Up to 90 %
