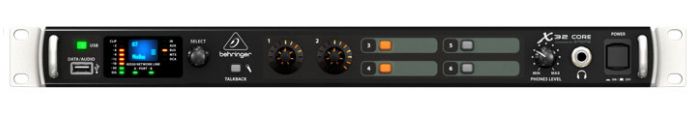

Behringer X32 CORE
40-Input Rackmount Digital Mixer

OUR PART #  X32-CORE

Our Price: $599.99
List Price: $1,199.99
You save 50%! (Low Price Guarantee)
In Stock

Recommended Accessories

The Behringer X32 CORE takes the brain of the flagship X32 digital mixing console and packs it all into a single rack space. Combine the X32 CORE with Behringer's S16 digital snakes (sold separately) to effortlessly run sound with high I/O counts in multiple locations. Dual AES50 networking CAT5 connectors allow for up to 96 remote inputs and 48 output channels to be controlled from and processed by X32 CORE.  All of this can be managed concurrently from various locations and instances of our free control software applications, XiQ, XiControland XControl.

A set of front panel controls can be pre-configured by the engineer to enable a restricted amount of user interaction, while hiding away all the complexity. The rear panel expansion port allows inserting optional I/O cards to interface with existing networked audio infrastructure.

The X32 CORE forms the nucleus of an ultra-flexible studio control room setup when paired with S16 I/O and P16 personal monitoring systems in each tracking room.The built-in 32 x 32 USB recording interface, 8 stereo effects engines, zero-latency monitoring (independent from DAW) and 100% total recall deliver the tools to handle any project you dare to tackle.

New Features with Firmware Version 3.04:

  • Auto-mix on first 8 input channels
    • X-TOUCH control over X32
    • Crossover filters added to main left/right mix and main mono bus
    • Phase inversion added on routing page to all outputs
    • New X32 Edit GUI
    • X32 Edit can go full screen
  • X32 Edit can open multiple windows and use multiplescreens
  • X32 Edit now has two user definable banks of faders

Behringer X32 CORE Features:

  • 40-input channel, 25-bus, 1U rack-mountable digital mixing core for live and installed sound application
  • 48-channel Digital Snake ready via dual AES50 ports, featuring KLARK TEKNIK's SuperMAC networking capability for ultra-low jitter and latency (Digital Snake sold separately)
  • 32 x 32 channel USB 2.0 audio interface
  • iPad and iPhone apps for professional remote operation available free of charge—no host PC required
  • 2 TRS outputs for local monitoring plus talkback mic input with trim control and front panel phones connector
  • Main LCR, 6 matrix buses and all 16 mix buses featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
  • Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc.
  • Networked remote control for show setups with on-screen software editor via Ethernet
  • Powerful scene management for convenient handling of complex productions
  • USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
  • ULTRANET connectivity for Behringer's P-16 Personal Monitoring System (sold separately )
  • Built-in expansion port for audio interface cards or digital networking bridges
  • MIDI In/Out for remote scene recall or controlling other MIDI equipment
  • Future firmware updates, including FX "Plug Ins", downloadable from behringer.com free of charge
  • Conceived and designed by Behringer Germany

Behringer X32 CORE Specifications:

  • Processing
    • Number of Processing Channels:
      • 32 Input channels
      • 8 Aux In channels
      • 8 FX Return channels
      • 16 buses
      • 6 matrices
      • Main LRC
    • Internal Effects Engines, true stereo/mono: 8/16
    • Internal Total Recall Scenes (inc. preamp and fader): 100
    • Signal Processing: 40-bit floating point
    • A/D-D/A conversion (Cirrus Logic A/D CS5368, D/A CS4385): 24-bit @ 44.1/48kHz, 114dB dynamic range
    • Local I/O latency (local in > console processing> local out): 0.8ms
    • Networked I/O Latency (stagebox in > console processing > stage box out): 1.1ms
    • Total number of accessible input sources/outputs: 128/144
  • Connectors:
    • Talkback Mic Input, XLR: 1 ext. (no internal microphone)
    • Monitoring Outputs, 1/4" TRS balanced: 2
    • Phones outputs, 1/4" TRS: 1 stereo (in front panel)
    • AES50 ports, SuperMac: 2
    • Expansion card (optional): 32 channel audio input/output, various standards
    • P-16 Connector, ultranet (no power supplied): 1
    • MIDI Inputs/Outputs: 1/1
    • Ethernet, RJ45, rear panel, for remote control: 1
    • USB Type A, top panel, for audio and data export/import: 1
  • NOTE:  For full specifications on the X32 CORE, refer to the attached Brochure under the "Documentation" tab.
