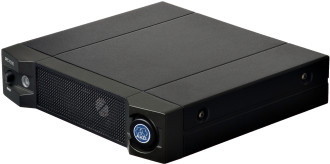

AKG SPC4500
4 Antenna Combiner for IVM4500

OUR PART #:  SPC4500

SPC4500 is an active wide-band UHF antenna combiner for connecting up to four SST4500 IEM transmitters to create large multichannel systems.
Learn More
Our Price: $699.00
List Price: $874.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

AKG SPC4500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

SPC4500 is an active wide-band UHF antenna combiner for connecting up to four SST4500 IEM transmitters to create large multichannel systems. It works in an ultra wide frequency range from 500 to 865 MHz. The combiner features a green/orange/red status indicator LED for full control of systems status. Any unused antenna output is automatically terminated to prevent unwanted radio interference noise.

The SPC4500 comes in a rugged half-rack metal housing and works with all passive AKG transmitter antennas.

Features:

  • Stationary 4:1 combiner combines antenna signals of up to four SST4500 IEM stereo transmitters
  • Operates in an ultra-wide frequency range from 500 to 865 MHz for universal use worldwide
  • Powers transmitters via antenna lines eliminates any extra installation effort
  • Rugged half 19” all-metal case transmitter for space-efficient system configurations

Specifications:

  • Type: 4 to 1 antenna combiner
  • Carrier range: 500 MHz to 865 MHz (The U.S. is currently limited to 500.1–607.9 MHz and 614.1–697.9 MHz)
  • System gain: 0 dB
  • RF inputs: 4 BNC sockets, 50 ohms
  • RF outputs: 1 BNC socket, 50 ohms
  • Power requirement: 12 VDC/1.4 A
  • Power supply (for SST 4500 IEMs): 12 VDC/2 A
  • Dimensions: 7.8" x 7.5" x 1.7"
  • Weight: 2.63 lbs

Click to download
