Symetrix ARC-K1E Adaptive Remote Control Wallplate for Symnet, 8 Segment LED

OUR PART #: ARC-K1E MFR #: 80-0137

Copied to clipboard

The ARC-K1e modular remote control wall panel features a push-button rotary encoder that provides simple control of two parameters in the Symetrix DSP hardware. ...Read more

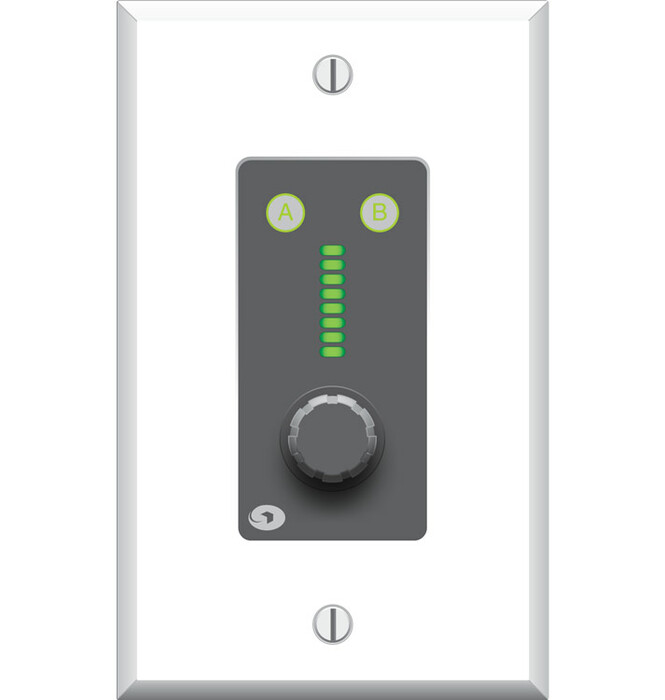

Symetrix ARC-K1E Adaptive Remote Control Wallplate For Symnet, 8 Segment LED Image 1
Symetrix ARC-K1E Adaptive Remote Control Wallplate For Symnet, 8 Segment LED
Our Price: $329.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The ARC-K1e modular remote control wall panel features a push-button rotary encoder that provides simple control of two parameters in the Symetrix DSP hardware. The 8-segment LED ladder on the ARC-K1e provides instant user feedback, clearly showing relative volume level. Two additional LEDs illuminate to indicate which of the two available controls is active. All control assignments, including parameter limits and firmware version upgrades, are handled by the software included with Symetrix DSP hardware.

A single channel RJ-45 connection provides power and data to the ARC-K1e. ARC-K1e has an "idle" mode option for light-sensitive environments like theaters. Hardware lockout pins accommodate an installer supplied key switch. Furnished with a standard white single gang Decora® faceplate and splash resistant overlay. The ARC-K1e fits in standard US wall boxes (sold separately) for in-wall or surface mount applications.

Symetrix ARC-K1e Features:

  • 8-segment LED ladder with push-button encoder can control one or two parameters.
  • Power, control, and a single channel of ARC Audio are connected via RJ-45 inputs.
  • Supports “idle” mode for light-sensitive environments like theaters.
  • Hardware lockout pins are provided to accommodate an installer supplied key switch. Software and hardware lockout functions can be independently programmed.
  • Furnished with a standard white single gang Decora® faceplate and splashresistant overlay.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
