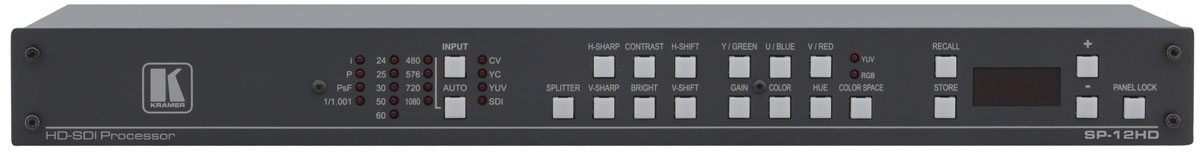

Kramer SP-12HD-RESTOCK-01
Multi-Format Analog and HD-SDI Video Processor

OUR PART #:  SP12HD-RST-01

The SP-12HD is a broadcast quality video processor that functions as a ProcAmp, TBC and format converter for composite video, s-Video (Y/C)...
Learn More
Sale Price: $1,286.90
List Price: $7,495.00
You save 83%!
Kramer SP-12HD-RESTOCK-01
Qty:
In Stock
Similar Products

The SP-12HD is a broadcast quality video processor that functions as a ProcAmp, TBC and format converter for composite video, s-Video (Y/C), component (YUV) and HD-SDI video signals.  The original and processed images can be viewed simultaneously with the split screen output enabled.

Note: This is a RESTOCK item. It may have minor cosmetic damage or it may have been sold to a customer and returned.

Features:

  • Bandwidth: 0.5dB to 5MHz (SDTV), to 10MHz (EDTV), to 30MHz (HDTV) fully loaded
  • Multi-Format Capability: Selected standard definition input is simultaneously output as composite video, s-Video, component video (YUV or Y/R-Y/B-Y) and SDI or selected high definition input is sumultaneously output as component video and HD-SDI.
  • Multi-Standard: Pal-B/M/N, NTSC-3.58.4.43, SECAM & SD/HD (analog & digital)
  • ProcAmp Control: Contrast, brightness, H/V sharpness, level/gain and full range of color control in YUV & RGB color spaces.
  • Time Case Corrector
  • Screen Splitter: Simultaneous display of original video and processed video on a single screen in composite and YUV
  • Timing Control: H & V chroma delay
  • Resolution: 10 bits
  • Memory Locations: Stores 16 multiple switches as presets
  • Control: Front panel and RS-232
  • Front Panel Lockout
  • Standard 19" Rack Mount Size - 1U, rackears included

Specifications:

  • Inputs:
    -  1 composite video: 1Vpp/75? on a BNC connector;
    -  1 Y/C: 1Vpp/75? (Y), 0.3Vpp/75? (C) on a 4-pin connector;
    -  1 component: Y/R-Y/B-Y (1Vpp/0.7Vpp/0.7Vpp)/75? on BNC connectors;
    -  1 SDI:SMPTE-259M, SMPTE-292M, SMPTE-344M, ITU-R BT.601 on a BNC connector.
  • Outputs:
    -  1 composite video: 1Vpp/75? on a BNC connector;
    -  1 Y/C: 1Vpp/75?(Y), 0.3Vpp/75? (C) on a 4-pin connector;
    -  1 component: Y/R-Y/B-Y (1Vpp/0.7Vpp/0.7Vpp)/75? on BNC connectors;
    -  2 SDI: SMPTE-259M, SMPTE-292M, SMPTE-344M, ITU-R BT.601 on BNC connectors.
  • Bandwidth: 0.5dB to 5MHz (SDTV), to 10MHz (EDTV), to 30MHz (HDTV), fully loaded.
  • S/N Ratio: 60dB
  • Controls: Front-panel and RS-232: contrast, brightness, video gain, color, hue, H/V sharpness, H/V chroma-luma shift; R-Y, B-Y level; screen splitter (process to bypass); panel lock.
  • Luma Non-Linearity: 1%
  • Accessories: Power cord, null-modem adapter, rackears
