Tripp Lite B132-100A-WP-1
RJ45-type Wallplate with VGA & Audio over Cat5 Receiver

OUR PART #  B132-100A-WP-1

Our Price: $100.73
List Price: $126.40
You save 20%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Tripp Lite's B132-100A-WP-1 works with a B132-002A or B132-004A local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection. Ideal for digital signage situations, such as retail, schools, churches, etc.

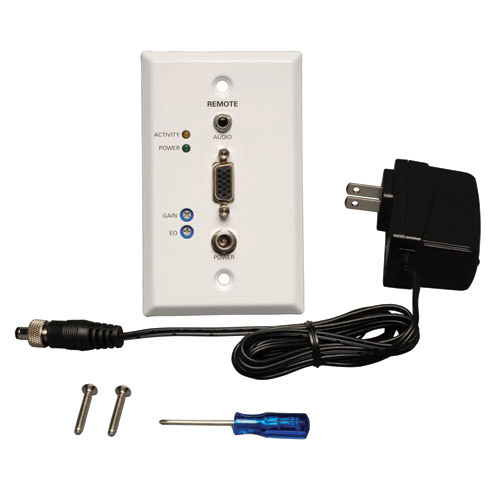

Tripp Lite B132-100A-WP-1 Includes:

  • Extender remote (Receiver) wallplate
  • Mini-Screwdriver for EQ/Gain adjustment
  • Wallplate screws
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner’s Manual

Tripp Lite B132-100A-WP-1 Features:

  • Works with a B132-002A or B132-004A local unit to extend a 1920 x 1440(60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video andAudio signal up to 1,000 ft.
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5)and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable,such as Tripp Lite P524-01K
  • Features built-in Equalization and Gain controls to adjust the video image
  • RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection
  • Ideal for digital signage situations, such as retail, schools, churches,etc..
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B132-100A-WP-1 Specifications:

  • Cable Type  VGA
  • Display Style  Splitter
  • Unit Dimensions (HxWxD)  4.5" x 2.75" x 1"
  • Unit weight (lbs)  0.5
  • Color  White
  • Connector A  HD15 (Female)
  • Connector B  3.5mm (Female)
  • Connector C  RJ45 (Female)

Tripp Lite B132-100A-WP-1
RJ45-type Wallplate with VGA & Audio over Cat5 Receiver

OUR PART #  B132-100A-WP-1

Product Information:

Tripp Lite's B132-100A-WP-1 works with a B132-002A or B132-004A local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection. Ideal for digital signage situations, such as retail, schools, churches, etc.

Tripp Lite B132-100A-WP-1 Includes:

  • Extender remote (Receiver) wallplate
  • Mini-Screwdriver for EQ/Gain adjustment
  • Wallplate screws
  • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
  • Owner’s Manual

Tripp Lite B132-100A-WP-1 Features:

  • Works with a B132-002A or B132-004A local unit to extend a 1920 x 1440(60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video andAudio signal up to 1,000 ft.
  • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5)and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
  • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable,such as Tripp Lite P524-01K
  • Features built-in Equalization and Gain controls to adjust the video image
  • RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection
  • Ideal for digital signage situations, such as retail, schools, churches,etc..
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Tripp Lite B132-100A-WP-1 Specifications:

  • Cable Type  VGA
  • Display Style  Splitter
  • Unit Dimensions (HxWxD)  4.5" x 2.75" x 1"
  • Unit weight (lbs)  0.5
  • Color  White
  • Connector A  HD15 (Female)
  • Connector B  3.5mm (Female)
  • Connector C  RJ45 (Female)
