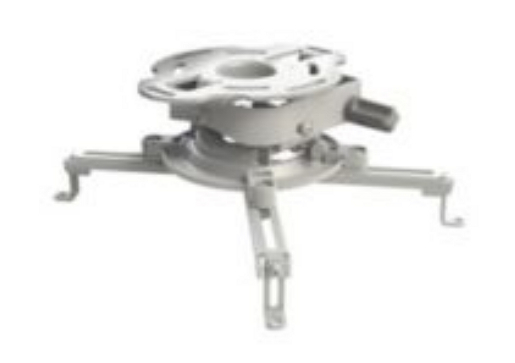

Peerless PRGS-UNV-W
Universal Projector Mount in White


Peerless-AV's PRGS Series Projector Mount is simplifying the way image alignment is done.
Learn More
Our Price: $102.47
List Price: $179.00
You save 43%!
Write the first review.
Peerless PRGS-UNV-W
In Stock

Related Products

Peerless-AV's PRGS Series Projector Mount is simplifying the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place – it will hold its position even during projector maintenance. With Peerless-AV's PRGS Series Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles. All projectors with M8 mounting screws require ACC-M8RI inserts for compatibility with any Peerless-AV projector mount.

Peerless-AV PRGS-UNV-W Features:

  • Two adjustment knobs to control tilt and roll image alignment and accurately hold image position, virtually eliminating any sag or drift
  • Specifications:
    • Pitch: +15°/-20°
    • Roll: ±5°
    • Swivel: 360°
  • Pre-installed security screws provide optional tilt and roll lock to prevent tampering and adjustments
  • Low profile design allows projector to be flush with the ceiling
  • "U" pitch bracket for easy cable routing
  • Quick release mechanism to easily service projector

Peerless-AV PRGS-UNV-W Specifications:

  • Mounting Pattern: 17.63" x17.63" (448 x 448 mm)
  • Weight Capacity: 50 lbs (11 kg)
  • Color: White
  • Finish: Powder Coat
  • Security Features: Security Hardware
  • Tilt: -20 / +15
  • Swivel Yaw: 360
  • Roll: -5 / +5
  • Distance from Ceiling: 3.63"-4.63" (92-118 mm)
  • Product Dimensions: 8.50"-17.63" x3.63"-4.63" x 8.50"-17.63" (216-448 x 92-118 x 216-448 mm)
  • Shipping Dimensions: 6.75" x 3" x 14.25" (171.5 x76.2 x 362 mm)
  • Shipping Weight: 5.05 lbs (4.98 kg)
