ETC/Elec Theatre Controls 470HID-150

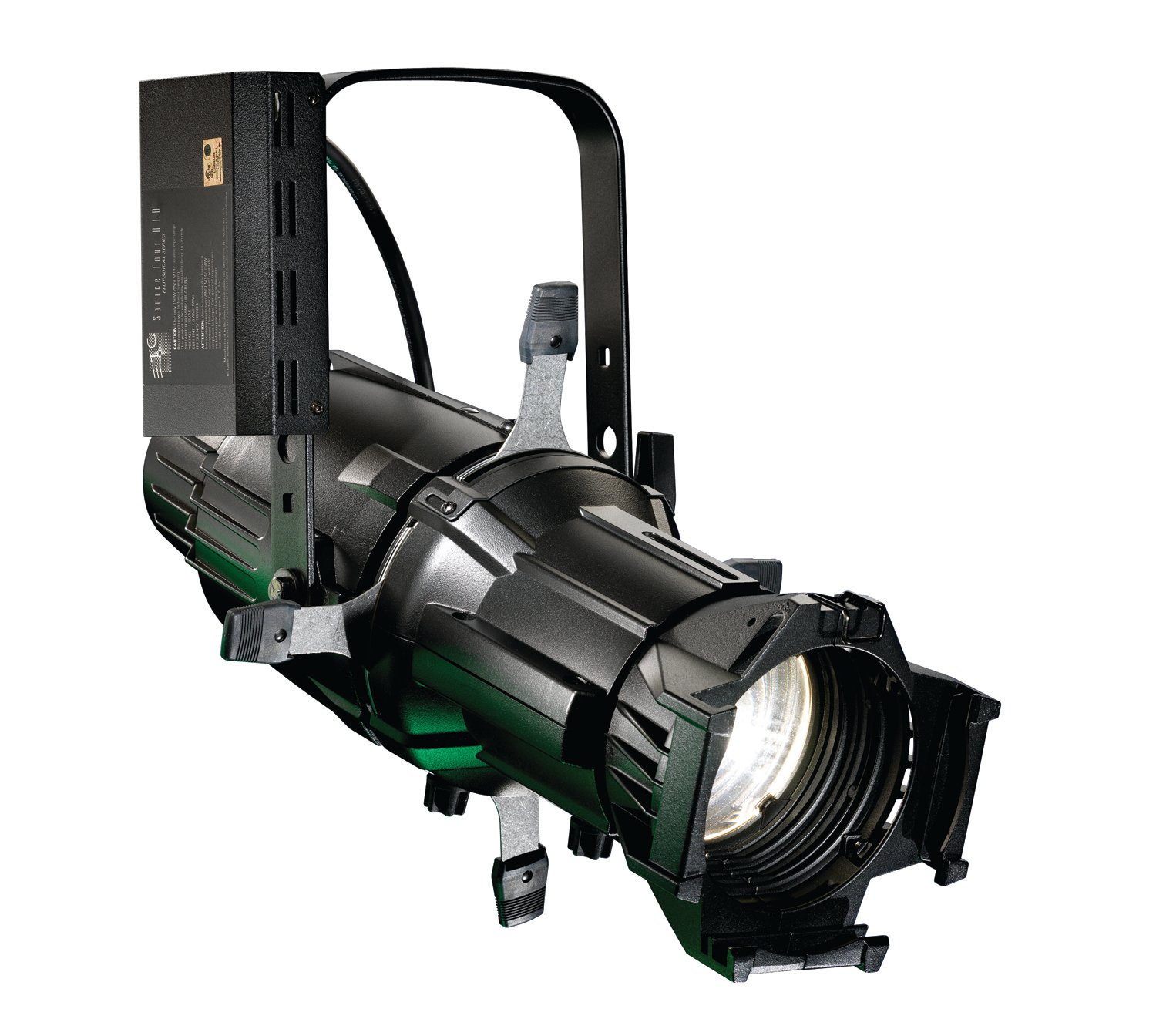

70° 150W Source Four HID Ellipsoidal in Black

OUR PART #:  470HID-150

The Source Four HID ellipsoidals put lighting power for architecture into your grasp.
Learn More
Sale Price: $749.99
List Price: $1,270.00
You save 41%!
Write the first review.
ETC/Elec Theatre Controls 470HID-150
In Stock

Related Products

The Source Four HID ellipsoidals put lighting power for architecture into your grasp! If your architectural space needs the lighting punch and long throws of a theatrical spotlight, or the even, clean wash of a PAR-style fixture, the solution is ETC's Source Four HID.

With the potent light of a Source Four HID you can draw attention to your interior design and architectural details, call out specific objects and dramatize display spaces, or project interest-grabbing patterns, logos and signage. Source Four HID's long-life 12,000-hour lamp means low maintenance and less lamp change-out, and that's perfect for positions that can't be reached often or easily - like tall museum ceilings or vaulted church areas.

Source Four HID gives you the level of performance of a 2,000-hour Source Four fixture but with 10,000 additional hours. The metal-halide fixture features all of the Source Four's famous cool beam, imaging, pattern projection, and bright, even field. Source Four HID uses an electronic ballast with a power factor of greater than 95% compared to some competitors' ballasts at less than 70%. And HID's ballast has an efficiency of greater than 90%. With its 1.5 amps operating current, you can safely place more Source Four HIDs on a 20A circuit than you can other manufacturers' units that operate at 2.3 amps. Plus, Source Four HIDs are UL Listed for damp locations.

NOTE: ETC Source Four HID are supplied with Philips CDM master color 150W ceramic metal halide lamp, color frame and 6’ (1.8 meter) leads as standard.

ETC 470HID-150 Specifications:

  • Physical:
    • Yoke mounted electronic ballast
    • Rugged, die cast aluminum construction
    • Rotating shutter assembly ± 25°
    • 20 gauge stainless steel shutters in a tri-plane assembly
    • Interchangeable lens tubes with smooth-running teflon guides provide nine user selectable field angle options
    • Thermally insulated rear handle
    • High impact, thermally insulated knobs and shutter handles
    • Two accessory slots and a top mounted, gel frame retainer
    • Steel yoke with two mounting positions
    • Positive locking single-clutch fixture body
    • Slot for glass or stainless steel patterns
    • Wide accessory slot with sliding cover for motorized pattern devices or optional iris
    • UL and cUL Listed for damp locations
  • Electrical:
    • 150W electronic ballast (yoke mounted)
    • Less than 14 Amps inrush current, lasts less than one AC cycle (16.7mS):
      • Select breakers that meet or exceed the in-rush and ampacity requirement
    • Less than 10% Harmonic distortion
    • Greater than 95% Power Factor
    • 90% Ballast Efficiency
    • 120V Ballast:
      • 120V±10%, 60Hz
      • 1.5 Amps operating current
    • 277V Ballast:
      • 277V±10%, 60Hz
      • 0.61 Amps operating current
  • Optical:
    • Re-optimized optical system for improved photometric performance and field uniformity
    • Faceted borosilicate reflector with dichroic cold mirror coating removes greater than 90% infrared radiation (heat) and reflects greater than 95% of visible light
    • Reflector secured with anti-vibration shock mounts
    • Projector-quality, high contrast dual aspheric lenses
    • Superior quality optical glass with advanced AR coatings
    • Provides crisp edge definition and high gobo contrast
    • Lens(es) secured with anti-vibration shock mounts
    • Pre-focus lamp cap, unaffected by relamping
    • Beam edge continually adjustable hard-to-soft
    • Interchangeable lens barrels permit selection of 5°, 10°, 14°, 19°, 26°, 36°, 50°, 70°, and 90° field angles as well as 19°, 26°, 36°, and 50° EDLT lenses
  • Lamp:
    • 150W Ceramic metal halide
    • ETC Source Four HID is shipped with a 150W Philips MasterColor™ CDM lamp
    • 3000°K color temperature:
      • 12,000 hrs. lamp life
      • Color Rendering Index (CRI) - 85
    • Optional 150W Philips MasterColor™ CDM 4,200°K color temperature (96 CRI) lamp available
