Roland Professional A/V M48-PM5 Personal Monitor Mixing System Bundle for 5 Users

OUR PART #: M48-PM5

Copied to clipboard

This system enables the connection of five M-48 Personal Mixers to any V-Mixer Console or any S-4000 or S-1608 Digital Snake system. ...Read more

Roland Professional A/V M48-PM5 Personal Monitor Mixing System Bundle For 5 Users Image 1
Roland Professional A/V M48-PM5 Personal Monitor Mixing System Bundle For 5 Users Image 2
Roland Professional A/V M48-PM5 Personal Monitor Mixing System Bundle For 5 Users Image 3
Roland Professional A/V M48-PM5 Personal Monitor Mixing System Bundle For 5 Users Image 4
Roland Professional A/V M48-PM5 Personal Monitor Mixing System Bundle For 5 Users
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

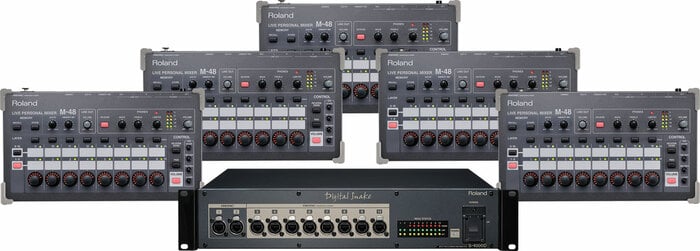

This system enables the connection of five M-48 Personal Mixers to any V-Mixer Console or any S-4000 or S-1608 Digital Snake system. This system consists of five M-48 Personal Mixers and a S-4000D Splitter and Power Distributor.

The M-48 Live Personal Mixer is the next generation live personal mixer that offers musicians the flexibly to control exactly what they want to listen to during their performances. It provides the highest level of sound monitoring quality for both headphones and IEMs (In-Ear Monitors) as well as for wedge and powered monitors. The high sound quality creates the perfect monitoring environment for live performance and recording as well as studio applications.

The M-48 allows control of up to 40 audio channels via 16 stereo groups. Sweeten your monitor mix to your exact preferences with volume, pan, 3-band EQ and built-in reverb per group - all instantly adjustable by convenient encoder knobs. A Limiter is included for protecting your ears from sudden volume spikes. Based on REAC, the all-digital connection results in a low noise floor and crystal clear sound.

The S-4000D Splitter and Power Distributor is equipped with 10 REAC ports including 8 ports of REAC Embedded Power. "REAC Embedded Power" is unique Roland technology that enables the transfer of not only the digital audio signal but also the power required by the connected device - all via one CAT5e cable. The S-4000D can automatically detect and distinguish a product not supporting REAC Embedded Power. In this case, power is not provided allowing the S-4000D to also function as a standard splitter when required.

Roland System Group M48-PM5 Includes:

  • 5x M-48 Personal Mixers
  • S-4000D Splitter & Distributor

Roland System Group M48-PM5 Features:

  • Add this package to any system to enable personal mixing for five
  • Five M-48 Personal Mixers included with the distribution/power hub
  • Professional sound control and quality
  • 40 audio channels via 16 stereo groups
  • Unprecedented personalization
  • Unparalleled usability; LED indicators on control knobs
  • Convenient connectivity via a single CAT5e cable
  • Mini jack and 1/4" phone jack headphone outputs
  • Balanced TRS line outputs; independent stereo output mini jack
  • Connect to an existing Analog/Digital Console
  • A complete digital mixing system with the M-400 V-Mixer

Roland System Group M48-PM5 Specifications:

  • Connectors:
    • REAC Connector: RJ-45 EtherCon Type x2 REACEMBEDDED
    • POWER Connector: RJ-45 EtherCon Type ×x8
  • Indicators:
    • REAC Power: Red x8
    • Link: Green x10
    • ACT: Orange x10
    • Power: Blue x1
  • Power Supply: AC 115V, AC 117V, AC 220V, AC 240V (50/60Hz)
  • Dimensions (WxDxH): 19" x 11-1/4" x3-1/2" (482 x 285 x 88 mm)
  • Weight: 4.2 kg (9 lbs. 5 oz.)

NOTE:

For specifications on the M-48 see brochure.
