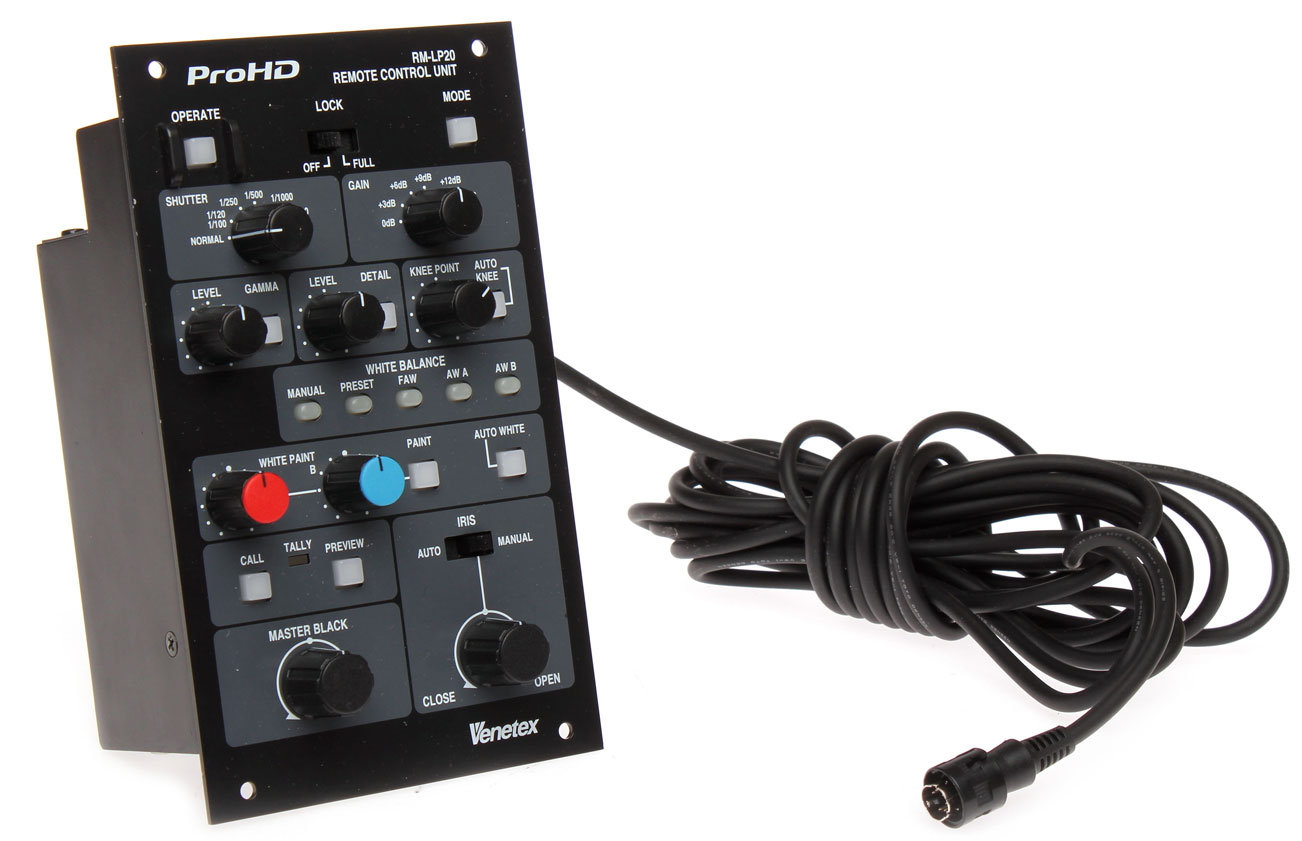

JVC RM-LP20G
ProHD Remote Control Unit

OUR PART #:  RM-LP20G

The JVC RM-LP20G is a rack mountable, cost effective remote control for JVC cameras and studio camera control units.
Learn More
Our Price: $3,000.00
List Price: $3,300.00
You save 9%!
Write the first review.
JVC RM-LP20G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

The JVC RM-LP20G is a rack mountable, cost effective remote control for JVC cameras and studio camera control units. It is designed to be plugged directly into the GY-HM750/GY-HM790 cameras, or into JVC's RM-HP790DU Camera Control Unit. When rack mounted, the RM-LP20G takes up 4RU space. Cable length is 5 meters.

NOTE: When you register this product within 30 days of purchase, JVC will extend the its manufacturer's parts & labor warranty to 3 YEARS at no extra charge!

JVC RM-LP20G Specifications:

Functions:

  • Bars: ON/OFF
  • Shutter: Normal, 1/100(120), 1/250, 1/500, 1/1000, 1/2000, EEI
  • Gain: 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, ALC
  • Gamma: Level control
  • Detail: Level control
  • Knee: Auto, Knee point control
  • White balance: Manual, Preset, FAW, AW A, AW B
  • White control: Auto White, B level control, R level control
  • Iris: Auto Iris level, Full
  • Tally: Program, Preview, Call
  • Master black: Level control
  • Operation lock: Full, OFF

General:

  • Power requirements: DC 9 V(from CCU)
  • Power consumption: 2 W
  • Operating temperature: 0 to 40 C
  • Operating humidity: 10% to 90%
  • Dimensions: 4.1" W x 2.25" H x 7" D (105 x 57 x 177 mm)
  • Mass: Approx. 2.65 lbs (1.2 kg)
