Fujinon Inc HA16x6.3BERM

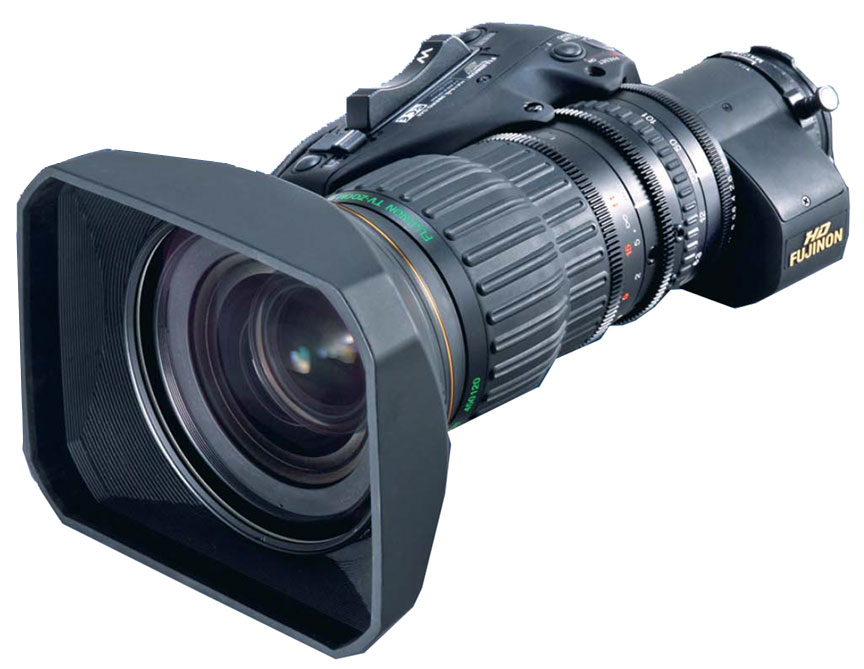

Fujinon 16x Wide Angle HD Lens

OUR PART #:  HA16X6.3ERM-M

This Premier Series HD ENG Multi-use lens comes with 2X extender and Digi-Power servo featuring a combination of wide angle and high zoom ratio.
Learn More

Call for price! Not available online.
List Price: $26,800.00

Similar Products

This Premier Series HD ENG Multi-use lens comes with 2X extender and Digi-Power servo featuring a combination of wide angle and high zoom ratio. Designed for use in news, production and other applications requiring the highest optical quality.

Fujinon’s Premier Series lenses are designed to compliment and enhance the quality of the world’s most advanced 1/2 and 2/3 inch HDTV cameras. The highest optical, mechanical, and electrical specifications are incorporated into every Premier lens, along with powerful features & functions. QuickZoom, CruiseZoom, One-shot Preset, as well as a multitude of Digi-Power control functions that provide the operator with all the tools at hand to ensure a great shot! And now all of this is in an ergonomically redesigned and performance enhanced New Digital Drive Grip.

Features:

  • Digi Power: With broadcasting technology rapidly converting to digital, Fujinon has developed a new digital servo control system, DIGI POWER, to enhance the performance of its zoom lenses. State-of-the-art components including a 32-bit RISC processor in the lens, a CPU in each servo demand, optical encoders and high-speed serial communication devices, together with the newly developed digital control circuit, provide 13-bit accuracy in zoom and focus control as well as a variety of new functions. An RS232 connector in the lens provides a connection between the lens and a PC, or other control device, for external control. This function has made it possible to control the lens functions with the high degree of accuracy and reliability needed for virtual studio and other robotic applications, and to raise the level for all production environments.
  • WidePower
  • Inner Focus
  • Zoom Limit
  • Digital Quick Zoom: Quick Zoom speed is improved to 0.7 seconds end to end. Quick Zoom provides for a rapid zoom movement to the telephoto position to check focus with the simple push of a button. Releasing the button returns the lens to the previously selected zoom position. Quick Zoom can now be performed remotely from the ERD-T22 and ERD-10A-D01.
  • HD Digital
  • Innerfocus
  • Digital Find System : The Focused Intelligent Network Diagnosis system aids in preventive maintenance and troubleshooting by evaluating various lenses' electronic and mechanical parameters.

Specifications:

  • Camera Format: 2/3"
  • Focal Length:
      -  1 × 6.3 - 101 mm
      -  2 × 12.6 - 202 mm
  • Zoom Range: 16 ×
  • Extender: 2 ×
  • Maximum Relative Aperture:
      -  1 : 1.8 (6.3 - 63 mm)
      -  1 : 2.9 (101 mm)
  • Maximum Photometric Aperture T-No.
      -  1 : 1.9 (6.3 - 63 mm)
      -  1 : 3.1 (101 mm)
  • M.O.D. from the Image Plane: 0.69 m
  • M.O.D. from the Front of Lens: 0.4 m
  • Object dimensions at M.O.D.
      -  1 × 6.3 mm   712 × 400 mm
      -  2 × 12.6 mm  356 × 200 mm
  • 16 : 9 Aspect ratio
      -  1 × 101 mm   45 × 25 mm
      -  2 × 202 mm   22 × 13 mm
  • Angular field of view
      -  1 × 6.3 mm   74°33' × 46°19'
      -  2 × 12.6 mm  41°40' × 24°90'
  • 16 : 9 Aspect ratio
      -  101 mm   5°26' × 3°03'
      -  202 mm   2°43' × 1°32'
  • Macro: Available
  • Filter thread: M107 × 1 *
  • Diameter × Length 95 × 238.5 mm
  • Weight (Lens hood excluded) 1.98 kg / 4.37 lbs

*Note: Filter attaches to the lens hood.
