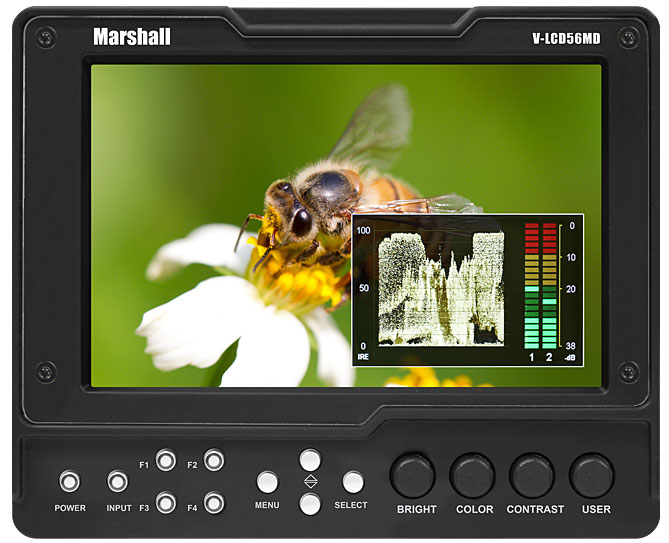

Marshall Electronics V-LCD56MD-3G
5.6" High Resolution Camera-Top Monitor with 3G Input Module with Loop-Through

OUR PART #:  V-LCD56MD-3G

This 5.6" monitor offers a high resolution 1280 x 800 panel and standard features including a wide variety of formats and markers...
Learn More
Our Price: $778.75
List Price: $974.00
You save 20%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-LCD56MD-3G
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This 5.6" monitor offers a high resolution 1280 x 800 panel and standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control, polycarbonate screen protection. New features include multiple DSLR presets, six User Presets, Adjustable IRE Clip Guide, and Backlight control just to name a few.

Modules can be added at anytime in the field by you the user. The new modular design allows you the user to determine what I/O combinations you want.

Features:

  • High Resolution 1280 x 800 LED Backlit IPS panel
  • Brightness 300-nit with Adjustable Backlight
  • Available in three Configurations:
    * V-LCD56MD (No Module)
    * V-LCD56MD-O (3G Output Module with two 3G-HDSDI outputs converted from the HDMI input. HDCP Compliant)
    * V-LCD56MD-3G (3G Input Module with loop-through)
  • DSLR Ratio Adjustment with 4 DSLR Ratio Presets
  • On Screen Waveform / Stereo Audio Bar Display
  • Manual Gamma Adjustment
  • Adjustable IRE Clip Guide (Zebra Filter)
  • 1/4"-20 mounts on all sides
  • Stereo Headphone Output (select a L+R Pair from the available channels)
  • 6 Monitor Configuration User Presets
  • HDMI Pass-Through (HDCP Compliant)
  • HDMI Auto Color Space and Ratio detect
  • New Peaking Filter (Choice of four color highlights and variable sensitivity)
  • False Color Filter
  • Four User Assigned Function Buttons with 32 possible uses
  • Pixel-to-Pixel Panning (Custom Pixel-to-Pixel Mode) 15:9, 16:9, 4:3, Pixel-to-Pixel modes
  • Input Crop with automatic scaling
  • RGB Check Field with Monochrome
  • Scratch Resistant Protective Screen
  • Variety of Optional User-Replaceable Battery Adapters available
  • Icon assisted Menu System

Specifications:

  • Display (Viewing Area):  120.96 x 75.60 mm (5.6" Diagonal)
  • Aspect Ratio:  16:10
  • Pixel Pitch:  94.5 x 94.5 um
  • Resolution (Pixels):  1280 x 800
  • Viewing Angle:  L+R: 170° / U+D: 170°
  • Display Technology:  TFT LCD
  • Brightness (in cd/m²):  300
  • Contrast Ratio:  500:1
  • Response Time:  30 ms
  • Inputs:  HDMI (HDCP Compliant)
  • Outputs:  HDMI (HDCP Compliant Pass-Through)
  • Compatible Modules:  MD-3GE (3G/HD/SDI Input with Loop-Through) MDO-3G (3G/HD/SDI Output Converted from HDMI Input). HDCP protected content will not be looped-through)
  • Dimensions:  6.10" (W) x 5.02" (H) x 1.45" (D)
  • Power Consumption:  9.6 Watts (0.8A @ 12V)
  • Input Voltage Range:  7-20 VDC
  • Weight:  1 lb.
  • Mounting Points:  4 x 1/4"-20
  • Battery Compatibility:  JVC, Sony M, Sony L, Panasonic, Canon, Sony B, Canon LP-E6, Canon ENEL3, Canon BP-511
