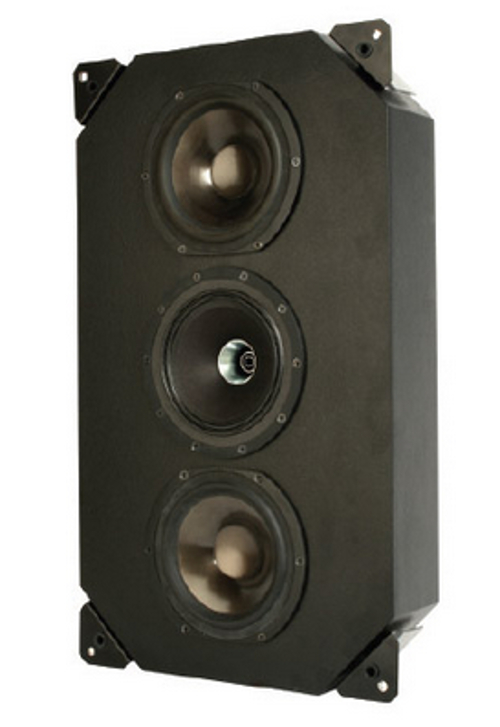

Tannoy iw63 DC
Install Series In-Wall Speaker

OUR PART #:  IW63DC

Call for price! Not available online.

Similar Products

The Tannoy Definition Install iw63 DC in-wall speaker has been designed around the unique Tannoy Dual Concentric™ drive unit to bring audiophile performance to a wide range of installation applications; from media rooms to home theatre and boardrooms through to high end marine interiors these loudspeakers deliver class leading accuracy, sensitivity and dynamics.

Characteristic of the Dual Concentric design is a very wide 'sweet spot' with an exceptionally even response throughout the listening area, as well as an extraordinary transient response; reasons enough for this phase accurate Tannoy designed drive unit to have been the choice of professional studio engineers all over the world for many years. The Dual Concentric™ is effectively two drivers properly merged into one where, unlike ordinary drive units, the high frequency unit is positioned on the back of the low frequency driver. As a result they are on same axis, so ensuring that sound energy is effectively propagated from the same point and delivered through the centre of the low frequency cone as true point source. Such integration optimises reproduction quality by providing a constant time delay over the frequency spectrum, exceptional transient performance, wide dispersion and superior harmonic alignment; all of which delivers to the listening position a natural, clean and integrated sound with greatly enhanced intelligibility, sound staging and dynamics.

Capable of an effortless and powerful performance to rival that of the cabinet based models in the range, the iw63 DC is equipped with a 165mm (6.50”) Dual coupled with two 165mm (6.50”) high output woofers. The heavily braced and comprehensively damped MDF cabinet is supplied with a paintable, flush mounting grille designed to blend seamlessly into any architectural space.

A unique isolation mounting system optimises low frequency performance by controlling unwanted resonances within the install structure. A mounting frame is available as an optional pre-installation accessory to fit into standard construction 2" x 4" stud walls. The high power handling iw63 DC will excel in any in wall application but is primarily designed to be used in left, centre or right locations in home theatre or media room applications. At 91dB (1W = 2.83V for 8 Ohms) the speaker is very sensitive and therefore capable of high output levels, tremendous dynamics and stunning detail in both music and movie applications in vast array of listening and viewing environments.

Tannoy iw63 DC Features:

  • 165mm (6.50”) high sensitivity, point source and constant directivity Dual Concentric™ drive unit
  • Two 165mm (6.50”) bass drivers
  • Constant time delay over the frequency spectrum
  • Exceptional transient performance
  • 90° conical dispersion
  • Superior harmonic alignment
  • Natural, clean and integrated sound
  • Enhanced intelligibility, sound staging and dynamics
  • Recommended amplifier power 100 to 200W @ 8 Ohms
  • Sensitivity 91dB (1W = 2.83V for 8 Ohms)
  • Maximum SPL 117dB average
  • Rugged construction MDF closed enclosure, internally braced and finished with textured black paint
  • Isolation mounting system minimises energy transfer to the wall material
  • Optional pre-installation frame available

Tannoy iw63 DC Specifications:

  • Frequency Range: 54Hz - 40kHz
  • System Sensitivity (1W @1m): 91dB (1W = 2.83V for 8Ohms)
  • Nominal Coverage Angle: 90° conical
  • Coverage Angle (1kHz to 6kHz): 120° conical
  • Directivity Factor (Q): 3.5 averaged 1kHz to 6kHz
  • Directivity Index (DI): 5.5 averaged 1kHz to 6kHz
  • Rated Maximum SPL:
    • Average 111dB
    • Peak 117dB
  • Power Handling:
    • Average 100W
    • Programme 200W
    • Peak400W
  • Recommended Amplifier Power: 100 - 200W @ 8 Ohms
  • Nominal Impedance: 8 Ohms
  • Crossover: 320Hz, 1.5kHz
  • Low Frequency: 2x 165mm (6.50") woofers
  • Mid and High Frequency: 1 x 165mm (6.50”) point source, constant directivity Dual Concentric™ Construction
  • Enclosure: 11.5 litre, closed and internally braced MDF enclosure
  • Finish: Textured black paint
  • White powder coated perforated
  • steel grille, with foam behind
  • Connectors: Gold plated spring terminals
  • Dimensions: 23.23" x 13.58" x 3.70"
  • Optional Accessory Pre-installation mounting frame
  • NET Weight 10.50kg (23.14lbs)
