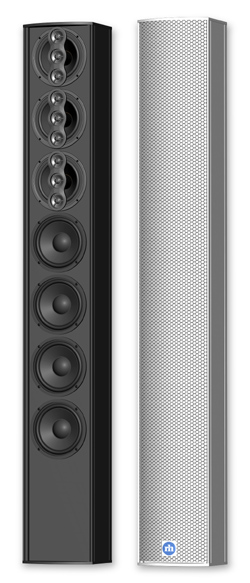

Renkus-Heinz ICX7-II
7 x 4" 175W Passive Mechanically Steerable Column Array Loudspeaker

OUR PART #  ICX7-II

Selected Model Price: $1,189.00
List Price: $1,576.00

Save up to 25%! (Low Price Guarantee)
Select model: (shipping times are approximate)

The ICX7-II is a 175 Watt @ 6 Ohm passive mechanically steerable column array loudspeaker.

Iconyx is a technology breakthrough: a powerful sound system that integrates computer software, digital amplification and superior acoustical design to deliver both enjoyable music and intelligible, natural speech, even in highly reverberant spaces where conventional solutions have failed. Tall, slender Iconyx arrays mount flush to walls and columns, becoming virtually invisible in most applications.

Finally, magnificent architecture can house effective communication and uplifting music. The IC7 and ICX7 are mechanically steerable array modules that supplement digitallly steered Iconyx arrays. They deliver the same natural reproduction with a fixed acoustical beam: a high value solution for side fill, front fill, or “short throw” applications that don’t demand programmable control.

Applications:

  • Houses of Worship: traditional & modern
  • Transport Terminals: train stations, airports, etc.
  • Stadiums & Arenas: lobbies & forecourts
  • Convention Centers, warehouses, etc.
  • Museums: lobbies, galleries, etc.
  • Performing Arts Centers: vocal/orchestral “lift,” lobbies, etc.
  • Any highly reverberant environment where enjoyable music and/orintelligible speech are as important as the architectural design

Features:

  • Architecturally Transparent: The tall, slim Iconyx enclosure is designedto be heard but not seen. They mount flush to walls and columns, blendinginvisibly with almost any architectural style. Yet Iconyx aims the soundprecisely at the audience, and nowhere else. The narrow vertical opening angleallows the Iconyx modules to focus the energy on the audience, while avoidingexcessive energy in unwanted areas.
  • Focused Acoustic Control: The IC7 & ICX7’s acoustic beam focuses thesound on the audience and not on the walls and ceiling, improvingintelligibility in reverberant spaces.
  • High-Performance Coaxial Transducers: Control is pointless unless thesound is accurate, natural and enjoyable. That’s why the Iconyx IC7 and ICX7use advanced, purpose-designed coaxial transducers to broaden their horizontaldispersion at high frequencies and improve musical reproduction.
  • Flexibility: The IC7 is self-powered for convenience and flexibility; theICX7 is designed for use with external amplifiers.
  • Class D Digital Amplifier: IC7 line arrays include a Class D digital poweramplifier with loudspeaker-specific signal processing and protection againstoverload damage.

Specifications:

  • Power Rating: 175 Watts RMS @ 6 Ohms
  • Sensitivity: 96dB (1W/1m)
  • Frequency Range: 120Hz - 18kHz
  • Max SPL (Single): 117dB peak @ 1 meter
  • Max SPL (Dual Stacked): 123dB peak @ 1 meter
  • Horiz. Dispersion: 150° up to 3kHz, 120° above 3kHz
  • Vertical Dispersion (Single): 30°
  • Vertical Dispersion (Dual): 15°
  • Typical Throw (single): (20 meters)
  • Typical Throw (Dual): 132ft (40 meters)
  • Beam Control (Single): Effective >800Hz
  • Beam Control (Dual): Effective >400Hz
  • No. Transducers:
    • 3 - Coaxial with a 4" woofer and triple 1" tweeters, RH model SSL4-7 25 W RMS, 50 W Pgm
    • 4 - 4" woofer, RH model SSL4-8, 25 W RMS, 50 W Pgm
  • Connectors: Looping Neutrix Speakon & Screw Terminals
  • Enclosure: Extruded Aluminum with perforated steel grille
  • Finish: White or Black paint (Custom colors optional)
  • Weight: 29.4 Lbs
  • Dimensions: 44.38"(H) x 5.68"(W) x 4.75"(D)

Renkus-Heinz ICX7-II
7 x 4" 175W Passive Mechanically Steerable Column Array Loudspeaker

OUR PART #  ICX7-II

Product Information:

The ICX7-II is a 175 Watt @ 6 Ohm passive mechanically steerable column array loudspeaker.

Iconyx is a technology breakthrough: a powerful sound system that integrates computer software, digital amplification and superior acoustical design to deliver both enjoyable music and intelligible, natural speech, even in highly reverberant spaces where conventional solutions have failed. Tall, slender Iconyx arrays mount flush to walls and columns, becoming virtually invisible in most applications.

Finally, magnificent architecture can house effective communication and uplifting music. The IC7 and ICX7 are mechanically steerable array modules that supplement digitallly steered Iconyx arrays. They deliver the same natural reproduction with a fixed acoustical beam: a high value solution for side fill, front fill, or “short throw” applications that don’t demand programmable control.

Applications:

  • Houses of Worship: traditional & modern
  • Transport Terminals: train stations, airports, etc.
  • Stadiums & Arenas: lobbies & forecourts
  • Convention Centers, warehouses, etc.
  • Museums: lobbies, galleries, etc.
  • Performing Arts Centers: vocal/orchestral “lift,” lobbies, etc.
  • Any highly reverberant environment where enjoyable music and/orintelligible speech are as important as the architectural design

Features:

  • Architecturally Transparent: The tall, slim Iconyx enclosure is designedto be heard but not seen. They mount flush to walls and columns, blendinginvisibly with almost any architectural style. Yet Iconyx aims the soundprecisely at the audience, and nowhere else. The narrow vertical opening angleallows the Iconyx modules to focus the energy on the audience, while avoidingexcessive energy in unwanted areas.
  • Focused Acoustic Control: The IC7 & ICX7’s acoustic beam focuses thesound on the audience and not on the walls and ceiling, improvingintelligibility in reverberant spaces.
  • High-Performance Coaxial Transducers: Control is pointless unless thesound is accurate, natural and enjoyable. That’s why the Iconyx IC7 and ICX7use advanced, purpose-designed coaxial transducers to broaden their horizontaldispersion at high frequencies and improve musical reproduction.
  • Flexibility: The IC7 is self-powered for convenience and flexibility; theICX7 is designed for use with external amplifiers.
  • Class D Digital Amplifier: IC7 line arrays include a Class D digital poweramplifier with loudspeaker-specific signal processing and protection againstoverload damage.

Specifications:

  • Power Rating: 175 Watts RMS @ 6 Ohms
  • Sensitivity: 96dB (1W/1m)
  • Frequency Range: 120Hz - 18kHz
  • Max SPL (Single): 117dB peak @ 1 meter
  • Max SPL (Dual Stacked): 123dB peak @ 1 meter
  • Horiz. Dispersion: 150° up to 3kHz, 120° above 3kHz
  • Vertical Dispersion (Single): 30°
  • Vertical Dispersion (Dual): 15°
  • Typical Throw (single): (20 meters)
  • Typical Throw (Dual): 132ft (40 meters)
  • Beam Control (Single): Effective >800Hz
  • Beam Control (Dual): Effective >400Hz
  • No. Transducers:
    • 3 - Coaxial with a 4" woofer and triple 1" tweeters, RH model SSL4-7 25 W RMS, 50 W Pgm
    • 4 - 4" woofer, RH model SSL4-8, 25 W RMS, 50 W Pgm
  • Connectors: Looping Neutrix Speakon & Screw Terminals
  • Enclosure: Extruded Aluminum with perforated steel grille
  • Finish: White or Black paint (Custom colors optional)
  • Weight: 29.4 Lbs
  • Dimensions: 44.38"(H) x 5.68"(W) x 4.75"(D)
