Bogen Communications TAMB2PS
Telephone Access Module w/PS

OUR PART #:  TAMB2PS

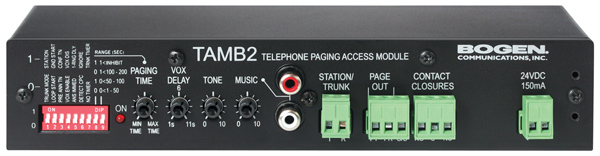

The Bogen TAMB2 Telephone Access Module is a unique, dual-purpose voice paging adapter designed as an interface from a telephone system to a paging system.
Learn More
Our Price: $207.97
List Price: $253.14
You save 18%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bogen Communications TAMB2PS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bogen TAMB2 Telephone Access Module is a unique, dual-purpose voice paging adapter designed as an interface from a telephone system to a paging system.

This versatile unit offers the capability of station port or trunk port operation, and is compatible with the full range of analog telephone port types. Advanced design and Bogen dependability make the TAMB2 the perfect choice for simple or complex telephone paging applications.

A background music input (with stereo-combining RCA jacks and volume control), which will accept a line level input from a background music source, is provided. This input permits the use of background music during a page with central paging amplifiers that have no muting provision.

Specifications:

  • Loop start, ground start, and station port (90V ring up) compatibility
  • 600-ohm output
  • Pre-announce and confirmation tones (defeatable)
  • Adjustable tone volume
  • Works with paging only and two-way (talk back) systems
  • Background music input with volume control
  • Suppresses background music during paging
  • Station access disconnect is dynamically controlled using a combination disconnect timer, and VOX disconnect timer or Calling
    Party Control (CPC) signal detection
  • Station port maximum page times from 1- 200 seconds
  • Disconnect VOX timer is adjustable from 1 to 11 seconds of silence
  • VOX and default timers independently inhibitable
  • Calling Party Control (CPC) signal from switch immediately disconnects station port
  • 24V Talk Battery
  • 1 Rack space unit height
  • Flexible Mounting Configuration: wall, single unit rack, and dual side-by-side rack mount
  • Easily accessible controls and switches
  • Trunk Timer feature helps prevent system blockage
  • 24V power supply required for all modes of operation (150mA min. capacity)
  • 1 C-Form (N.O. and N.C.) contact pair available for operating external equipment
  • Pluggable terminal strip connectors
  • FCC Part 68 registered; ETL Listed

Specifications:

  • Registration Number: US: CD2PA13BTAMB2
  • Ringer Equivalence: 1.3B
  • Station Port Compatibility: Two-wire ring start
  • Trunk Port Compatibility: Two-wire loop start or ground start
  • Paging Frequency Response: 200 – 8000 Hz, ±1 dB
  • Input/Output Impedance: 600 ohms, nominal
  • Power Requirements: 24V DC @ 150mA (user-supplied)
  • Pre-announce/Confirmation Tones: 800 Hz, ±20%, one-half second duration
  • Default Disconnect Timer: 1 to 200 seconds, adjustable or inhibit
  • VOX Disconnect Timer: 1 to 11 seconds, adjustable or inhibit
  • Auxiliary Contact Rating:
      -  0.6A @ 125V AC resistive
      -  0.6A @ 110V DC resistive
      -  2.0A @ 30V DC resistive
  • Operating Temperature Range: 32° – 120°F.
  • Connection Method: Pluggable screw terminal
  • Finish: Black enclosure with white lettering
  • Dimensions: 8-1/2" W x 1-3/4" H x 3" D
  • Product Weight: 2 lb.
