Product Overview

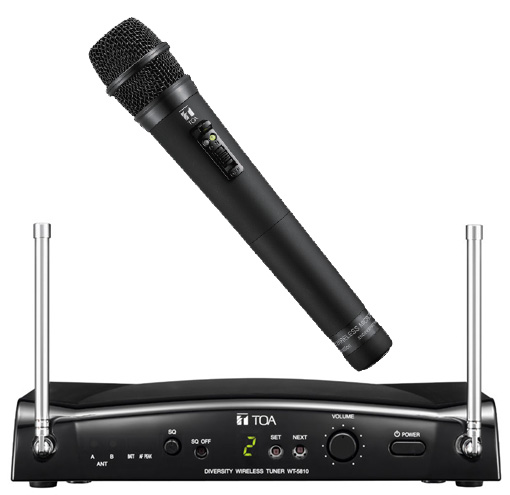

The WS-5225 kit from TOA consists of the WM-5225 rechargeable UHF handheld wireless condenser microphone / transmitter packaged with the WT-5810 diversity wireless tuner/receiver.
Suitable for any number of applications, the WM-5225 hand-held mic / transmitter employs an electret condenser microphone capsule. It has 64 different operating frequencies that are made available thanks to its PLL-synthesizer system. Plus, high output power ensures stable radio signal transmission.
A PLL-synthesizer controlled double superheterodyne diversity tuner / receiver, the WT-5810 is engineered to be used with a UHF wireless system. It features a compander noise reduction circuit to minimize the influence of ambient RF noise. It includes attached antennas, LED CH display, balanced XLR and ¼" out.
Features
- Operates in the UHF band, free from 700MHz band interference.
- Available in either of 2 UHF frequency sets: H01 (576-606Mhz) and M (506-538Mhz)
- WT-5810 tuner / receiver:
- Up to 16 selectable frequencies (Up to 16 Simultaneous channels)
- Frequency scan function
- Adjustable 7-step squelch function
- Supplied audio mixing input and audio mixing output
- Indication of transmitter’s battery life
- Compact, portable design\
- WM-5225 microphone / transmitter:
- Electret condenser microphone unit: Unidirectional
- 64 selectable channels
- ON / OFF switch prevents the microphone from rolling.
- WB-2000 rechargeable battery or single AA battery operation for compact and lightweight body
- Built-in antenna
Specifications
- WT-5810 Tuner / Receiver
- Power Source: AC mains (Supplied AC – DC adapter must be used.)
- Power Consumption: 130mA (12VDC)
- Receiving Frequency: 690 – 865MHz, UHF
- Selectable Channel: 16 channels
- Receiving System: Double superheterodyne
- Diversity System: Space diversity
- Mixing Output:
- MIC: –60dB / LINE: –20dB, 600Ω
- Phone jack (unbalanced), XLR-3-31 type connector (balanced)
- Mixing Input:
- –20dB*, 10kΩ Phone jack (unbalanced)
- Antenna: Rod antenna
- Receiving Sensitivity: Better than 80dB, S/N ratio (20dBµV input, 40kHz deviation)
- Squelch Sensitivity 18 – 40dBµV variable
- Squelch System: Using together of noise SQ and carrier SQ
- S/N Ratio: Better than 104dB (A-weight, balanced output)
- Harmonic Distortion: Less than 1%
- Frequency Response: 100 – 12,000Hz, ± 3dB
- Operating Temperature: –10 to +50°C
- Finish: Resin, dark gray
- Dimensions: 240mm (w) x 35mm (h) x 110mm (d)
- Weight: 1.05kg
- WM-5225 Microphone / Transmitter
- Microphone Element: Electret condenser microphone unit: Dynamic microphone unit: Unidirectional
- Modulation Frequency: Frequency Range 576 – 865MHz (576 – 606MHz and 614 – 698MHz for USA / Canada)
- Channel Selectable: 64 channels (the number of channels may differ from country to country)
- RF Carrier Power: 50mW or less
- Tone Frequency: 32.768kHz
- Oscillator: PLL synthesized
- Maximum Input Level: 126dB SPL
- Maximum Deviation: ± 40kHz
- Audio Frequency Response: 100Hz – 15kHz
- Battery: WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
- Battery Life:
- Approx. 13 hrs (when the WB-2000 rechargeable battery is used)
- Approx. 10 hrs (when the alkaline battery is used)
- Indicator: Power / Battery lamps
- Antenna: Built-in type
- Operating Temperature: –10°C to +50°C (14°F to 122°F) (except battery)
- Operating Humidity: 30% to 85% RH
- Finish: Resin, coating
- Dimensions: Dia. 43.6 x 231.5mm (Dia. 1.72" x 9.11") Dia. 50 x 229mm (Dia. 1.97" x 9.02")
- Weight:180g (0.4lbs) (without battery) 205g (0.45lbs) (with battery)
