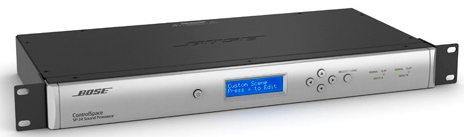

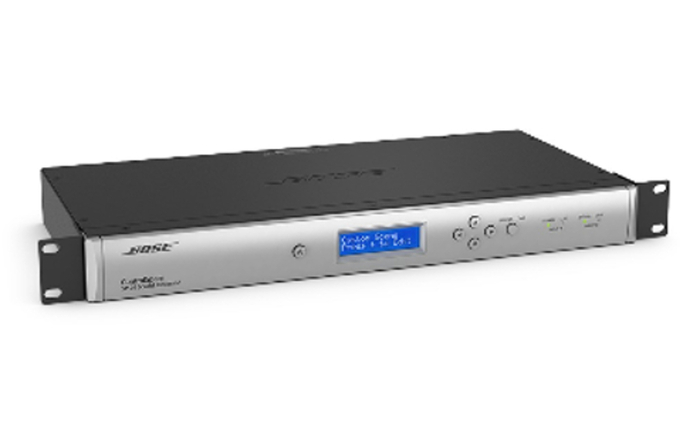

Bose ControlSpace SP-24
2x4 Sound System Processor

OUR PART #:  SP24

The Bose ControlSpace SP-24 sound processor makes optimizing 2x4 installed and portable sound systems easy.
Learn More

Related Products

The Bose ControlSpace SP-24 sound processor makes optimizing 2x4 installed and portable sound systems easy. Use the purposefully simple front panel interface for basic operations, or the intuitive SP-24 Editor software for full access to all signal processing settings.

Applications:

  • Auditoriums
  • Houses of worship
  • Live music performances
  • Restaurants and bars
  • Retail stores
  • Auxiliary zones

Bose ControlSpace SP-24 Features:

  • Real-time control, and the ability to program and store custom scenes with the easy-to-use SP-24 Editor software
  • SP-24 Editor software provides complete access to all signal processing functions including custom channel routing, input and output 9-band dual equalization, band pass filters, delays, peak limiter, gain and signal polarity for full system control
  • Simplified front panel LCD menus and controls are purposely designed to make it easier to select preprogrammed scenes, gain and delay parameters, or quickly access BoseĀ® loudspeaker presets
  • USB port enables plug-and-play PC access for system configuration, programming, signal level monitoring and firmware updates using the SP-24 Editor software
  • Extensive Bose professional loudspeaker library enables quick access to factory-created equalization curves while the SP-24 Editor software provides intuitive graphical tools for optimizing any passive or powered loudspeaker
  • XLR inputs (2) and outputs (4) for balanced connectivity to professional audio gear
  • Signal and clip LED indicators show the signal status of the input channels
  • Front panel lockout feature prevents unauthorized use

Bose ControlSpace SP-24 Specifications:

  • Dynamic Range: 107 dB (typical)
  • A/D and D/A Converters: 24-bit
  • Sample Rate: 48 kHz
  • Input Channels: 2 channels
  • Output Channels  4 channels
  • Dimensions (HxWxD): 1.8" x 19" x 8.6" (45 x 483 x 218 mm)
  • Net Weight: 5.9 lb (2.7 kg)
