Philips Color Kinetics 101-000067-00
50 iColor Flex LMX Nodes in Black with 4" On-Center Node Spacing & Clear Flat Lenses

OUR PART #:  101-000067-00

iColor Flex LMX are flexible strands of large, high-intensity...
Learn More

Call for price! Not available online.

Related Products

iColor Flex LMX are flexible strands of large, high-intensity, full-color LED nodes designed for extraordinary effects and expansive installations without the constraints of fixture size or shape. Each iColor Flex LMX strand consists of 50 individually addressable LED nodes, featuring dynamic integration of power, communication, and control.

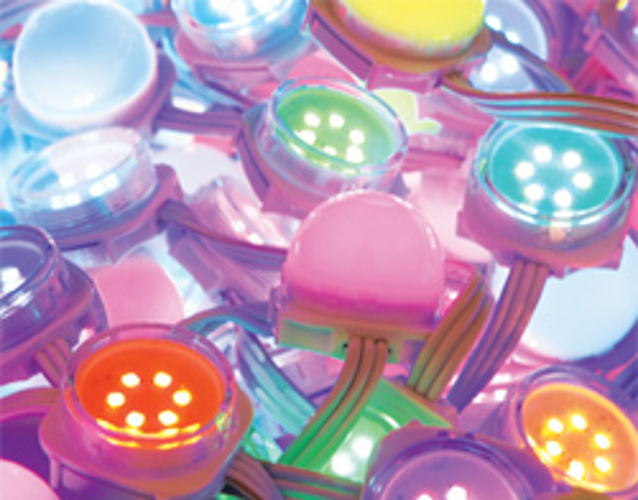

NOTE: Shown above with both flat and half-dome lenses and in white.  This version comes in  BLACK and with clear flat lenses ONLY.

Philips Color Kinetics iColor Flex LMX Features:

  • Each node produces full-color output of up to 6.56 candela (full on)
  • Flexible form factor allows unique, cost-effective lighting installations, including two- and three-dimensional video displays
  • Works seamlessly with the complete Philips line of controllers, including Video System Manager, Light System Manager, and iPlayer 3, or third-party controllers
  • Single node mounts can be positioned individually to support complex geometries. Standard 50-node lengths can be shortened in the field.
  • Strands can be mounted to a surface, like traditional string lights, and on tracks to ensure straight linear runs. Snap-on spacers hide cabling and mounting hardware.
  • Leader cables available in different lengths
  • Durable and weather-resistant — Fully sealed for maximum fixture life and IP66-rated for outdoor applications
  • Both clear and translucent dome lenses available

Philips Color Kinetics iColor Flex LMX Specifications:

  • Lumen Maintenance: 50,000+ hours L50 @ 50° C (full output)
  • LED Channels: Red / Green / Blue
  • Input Voltage: 24 VDC via sPDS-480ca, PDS-60ca, sPDS-60ca
  • Power Consumption: 1 W max. per node at full output, steady state
  • Interface:
      -  sPDS-60ca 24 V (DMX / Ethernet)
     -  PDS-60ca 24V (Pre-programmed, DMX, or Ethernet)
      - PDS-480ca 24V (Ethernet)
  • Control System: Philips full range of controllers, including Video SystemManager Pro, Light System Manager, and iPlayer 3, or third-party controllers
  • Node Dimensions (Height x Width x Depth):
      -  Clear, FlatLens: 1.2" x 1.25" x .67" (31 x 32 x 17 mm)
      -  Translucent DomeLens: 1.2" x 1.25" x 1" (31 x 32 x 25 mm)
  • Weight: 2.2 lb (1 kg) 50-node strand, 4 in on-center node spacing
  • Housing: White or black polycarbonate
  • Lens: Clear or translucent plastic
  • Fixture Connections: Integrated watertight 3-pin connector
  • Temperature Ranges:
      -  -4° – 122° F (-20° – 50° C) Operating
      -  = 32° F (= 0° C) Handling
      -  -4° –122° F (-20° – 50° C) Startup
      -  -22° – 185° F (-30° – 85° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
      -  sPDS-480ca24V: 8 strands
      -  sPDS-60ca 24V: 1 strand
      - PDS-60ca 24V : 1 strand
  • Certification: UL / cUL, FCC Class A, CE
  • Environment Dry / Damp / Wet Location, IP66
