Bose L1 Model II System with B2 Bass Module & T1 ToneMatch Instant Rebate
Our Price: $3198.00
Instant Rebate: $480.00

Your Price: $2718.00... read more

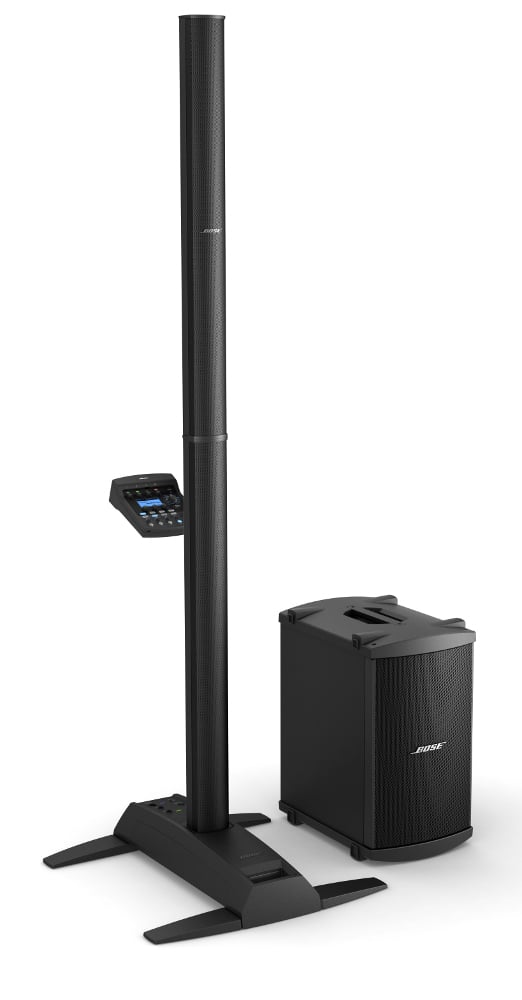

Bose L1 Model 2 System with B2 Bass Module, T1 ToneMatch
Portable PA System

OUR PART #:  L1-II-B2-T1

The Bose L1 Model 2 System is designed for an audience of up to 500 people.
Learn More
Sale Price: $2,718.00
List Price: $3,198.00
You save 15%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bose L1 Model 2 System with B2 Bass Module, T1 ToneMatch
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bose L1 Model 2 System is designed for an audience of up to 500 people. With a 24-speaker articulated line array providing 180 degrees clear, even coverage, it combines Bose's best sound reproduction with easy transport and setup. Designed to work with the T1 ToneMatch® audio engine (sold separately), which provides four additional inputs, Bose's largest library of ToneMatch presets and a complete suite of studio-class effects and processing. Ideal for use in indoor applications such as houses of worship, schools and universities, resorts and hospitality venues, live music performances, business presentations, mobile DJing, and more.

The T1 ToneMatch® audio engine is a digital multichannel mixer designed for use with Bose® L1® sound systems. It provides four independent channels, over 100 proprietary ToneMatch presets for instruments and microphones and a complete suite of studio-class effects and sound processors.Proprietary ToneMatch presets optimize L1 system to match the intended natural sound of specific instruments and vocal mics. Over 100 presets are organized into quick-access banks and can be independently assigned to each channel. Free ongoing updates can be downloaded via a USB connection between your computer and the ToneMatch audio engine.

The PackLite® amplifier (sold separately ) powers up to two additional B1 bass modules. Includes 1/4" TRS cable and nylon carry pouch.

Bose L1 Model 2 with B2 Bass Module, T1 ToneMatch Includes:

  • L1 Model II power stand and cord
  • L1 Model II Cylindrical Radiator loudspeaker (top and bottom)
  • Loudspeaker carrying bags
  • Power stand carrying bag
  • B2 bass module and cable
  • B2 bass module slip cover
  • T1 ToneMatch audio engine
  • T1 ToneMatch audio engine cable
  • ToneMatch engine protective cover and carrying bag
  • ToneMatch engine mounting bar and carriage (not compatible with L1 Compactsystem)

Bose L1 Model 2 with B2 Bass Module, T1 Tone Match Features:

  • High-performing, powered, portable two-way loudspeaker system with a 195° H x 0° V nominal dispersion designed for the production and reproduction of live music, music playback, speeches and A/V sound reproduction
  • 24-driver articulated line array loudspeaker technology produces wide, uniform sound coverage throughout the entire listening area—even off to the extreme sides
  • Consistent front-to-back coverage, 24 drivers mounted in a vertical line array produce little drop in sound pressure level per doubling in distance than a conventional point source
  • Retractable folding leg mechanism for easy transport
  • Lightweight, interlocking components
  • Expandable bass design supports the use of multiple B1 bass modules or a single B2 bass module
  • Digital Ethercon port provides single-wireconnectivity for the T1 ToneMatch audio engine
  • T1 Tonematch® Audio Engine:
    • More than 100 proprietary ToneMatch presets for a variety of popular microphones and instruments
    • Four input channels with independent selection of ToneMatch presets and effects
    • Proprietary zEQ for precise tone control, plus a complete suite of studio-class effects and processing, such as reverb, delay and modulation
    • Chromatic tuner
    • Phantom power
    • Compatible with any L1 system (requires T1 power supply for use with L1 Model 1 and L1 Compact systems, and with a PC)

Bose L1 Model 2 with B2 Bass Module, T1 Tone Match Specifications:

  • System:
    • Type:  Self powered, two-way
    • Frequency Response (+/-3 dB) 1:  40 Hz - 12 kHz
    • Frequency Range (-10 dB) 1:  32 Hz - 14 kHz
    • Nominal Dispersion:  195° H x 0° V
    • Maximum SPL @ 1 m 2:  115 dB SPL (121 dB SPL peak)
    • Crossover Frequency:  200 Hz (24 dB / octave)
    • System Power Rating:  500 W
    • Low-Frequency Amplifier:  250 W
    • High-Frequency Amplifier:  250 W
    • Distortion at Rated Power:  0.1 % Max (30 Hz - 15 kHz)
    • System Limiter:  Dynamic limiter
    • Overload Protection:  Fuse/MOV/NTC/PTC
    • Power Indicator:  Blue LED: system on, Red LED: fault
    • Driver Compliment:
      • Cylindrical Radiator® oudspeakers: Twenty-four (24) 2.25" (57 mm) HF drivers
      • B1 bass module: Two (2) 5.25" (133 mm) LF drivers (8 Ohms)
      • B2 bass module: Two (2) 10" (254 mm) LF drivers (4 Ohms)
    • Signal Indicators:  Analog signal/clip LED: Green: signal present, Yellow: -3 dB below clip, Red: clip (limiter active)
    • Trim:  +14 dB @ max
    • Input:  1/4" - TS unbalanced or TRS balanced
    • Channel Gain (1/4" input):  -50 dB to +28 dB (line)
    • Maximum Input Signal:  +24 dBu (balanced)
    • Input Impedance:  10 kOhms +/- 10 % (unbalanced)
    • Connections:
      • Bass Module out (for B1 or B2 only) NL4 connector (all pins wired, two for audio, two for auto sensing). Bass output signal for driving up to two B1 bass modules (one B1 bass module = 8 Ohms) (two B1 bass modules = 4 Ohms) or one B2 bass module (4 Ohms)
      • Bass Line Output  Post-DSP bass signal output. Accepts a 1/4" TRS cable. Supplies low frequency signal for connecting a PackLite® power amplifier or powered subwoofer.
      • ToneMatch Port  CAT5 Ethernet cable with RJ45 connection providing digital audio and power connection for the T1 ToneMatch audio engine
    • AC Mains:  IEC connector
    • Enclosure:
      • Power Stand: Polypropylene cover with cast aluminum legs and steel chassis base
      • Cylindrical Radiator: Aluminum enclosuure with ABS baffle
    • Grille:  Powder-coated perforated steel
    • Dimensions:  Assembled height: 84" (2134 mm)
    • Net Weight:
      • Power Stand: 23.7 lbs (10.7 kg)
      • Cylindrical Radiators (pair): 33.7 lbs (15.3 kg)
      • B1 bass module: 26.6 lbs (12.1 kg)
      • B2 bass module: 45 lbs (20.41 kg)
    • Shipping Weight:
      • Power Stand: 32 lbs (14.5 kg)
      • Cylindrical Radiators (pair): 41 lbs (18.6 kg)
      • B1 bass module: 30 lbs (13.6 kg)
      • B2 bass module: 52.2 lbs (23.67 kg)
    • Voltages:
      • USA/Canada  100-120 V 50 / 60 Hz 500W
      • Europe  220-240 V 50 / 60 Hz 500
  • T1 ToneMatch® Audio Engine:
    • Audio Channels: 4
    • Outputs: 2- Master and AUX
    • A/D and D/A Converters: 24-bit
    • Sample Rate: 48 kHz
    • USB & Interfaces 1.1 protocol, Type A to Type B cable
    • Dimensions: 8.22" H x 6.52" W x 2.66" D (209 mm H x 165 mm W x 67 mm D)
    • Shipping Weight: 2.1 lbs (0.97 kg)
