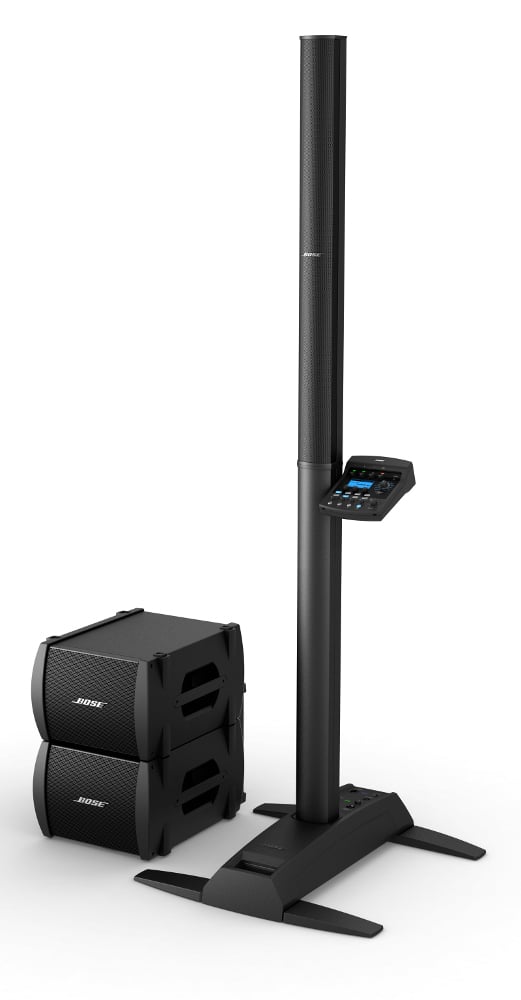

Bose L1 Model 1S System with B1 Bass Modules, T1 ToneMatch
Portable PA System

OUR PART #:  L1-1S-DBL-B1-T1

The Bose L1 system offering a unique combination of performance and portability for an audience of up to 300.
Learn More
Our Price: $2,597.00
Write the first review.
Bose L1 Model 1S System with B1 Bass Modules, T1 ToneMatch
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Bose L1 system offering a unique combination of performance and portability for an audience of up to 300. With a 12-speaker articulated line array providing 180 degrees of clear, even, sound, the system is also designed to work with the T1 ToneMatch® audio engine as well as a choice in bass modules. Easy to transport, and set up in minutes. For indoor applications only - houses of worship, schools and universities, resorts and hospitality venues, live music performances, business presentations, mobile DJing, and more.

The T1 ToneMatch® audio engine is a digital multichannel mixer designed for use with Bose® L1® sound systems. It provides four independent channels, over 100 proprietary ToneMatch presets for instruments and microphones and a complete suite of studio-class effects and sound processors.Proprietary ToneMatch presets optimize L1 system to match the intended natural sound of specific instruments and vocal mics. Over 100 presets are organized into quick-access banks and can be independently assigned to each channel. Free ongoing updates can be downloaded via a USB connection between your computer and the ToneMatch audio engine.

Bose L1 Model 1S with B1 Bass Modules, T1 ToneMatch Includes:

  • L1 Model 1S Top Array and Bottom Extension
  • B1 Bass Modules and NL4 Cables
  • T1 ToneMatch Audio Engine
  • L1 Model 1S Power Stand and Cord
  • B1 Slip Covers
  • T1 ToneMatch protective cover and carry bag
  • Loudspeaker Carry Bag
  • Power Stand Carry Bag
  • T1 ToneMatch mounting bar and carriage

Bose L1 Model 1S with B1 Bass Modules, T1 ToneMatch Features:

  • High-performing, powered, portable two-way loudspeaker system with a 195° H x 10° V nominal dispersion designed for the production and reproduction of live music, music playback, speeches and A/V sound reproduction
  • 12-driver articulated line array produces wide, uniform sound coverage throughout the entire listening area—even off to the extreme sides
  • Consistent front-to-back coverage, 12 drivers mounted in a vertical line array produce less drop off in sound pressure level per doubling indistancethan a conventional point source
  • Retractable folding leg mechanism for easy transport
  • Lightweight, interlocking components
  • Expandable bass design supports the use of multiple B1 bass modules or a single B2 module
  • Digital ethercon port provides single-wire connectivity for the T1 ToneMatch audio engine
  • T1 ToneMatch Audio Engine Features:
    • More than 100 proprietary ToneMatch presets for a variety of popular microphones and instruments
    • Four input channels with independent selection of ToneMatch presets and effects
    • Proprietary zEQ for precise tone control, plus a complete suite of studio-class effects and processing, such as reverb, delay and modulation
    • Chromatic tuner
    • Phantom power
    • Compatible with any L1 system (requires T1 power supply for use with L1 Model 1 and L1 Compact systems, and with a PC)

Bose L1 Model 1S with B1 Bass Modules, T1 ToneMatch Specifications:

  • System Type: Self powered, two-way
  • Frequency Response (+/-3 dB): 40 Hz - 12 kHz
  • Frequency Range (-10 dB): 32 Hz - 14 kHz
  • Nominal Dispersion: 195° H x 10° V
  • Maximum SPL @ 1 m 2 : 112 dB SPL (118 dB SPL peak)
  • Crossover Frequency: 200 Hz (24 dB / octave)
  • System Power Rating: 375 W
  • Low-Frequency Amplifier: 250 W
  • High-Frequency Amplifier: 125 W
  • Distortion at Rated Power: 0.1 % Max (30 Hz - 15 kHz)
  • System Limiter: Dynamic limiter
  • Overload Protection: Fuse/MOV/NTC/PTC
  • Power Indicator: Blue LED: system on, Red LED: fault
  • Driver Compliment:
    • Top array loudspeaker: Twelve (12) 2.25" (57 mm) HF drivers
    • B1 bass module: Two (2) 5.25" (133 mm) LF drivers (8 ohms)
    • B2 bass module: Two (2) 10" (254 mm) LF drivers (4 ohms)
  • Signal Indicators: Analog signal/clip LED: Green: signal present, Yellow: -3dB below clip, Red: clip (limiter active)
  • Trim: +14 dB @ max
  • Input: 1/4" - TS unbalanced or TRS balanced
  • Channel Gain (1/4" input): -50 dB to +28 dB (line)
  • Maximum Input Signal: +24 dBu (balanced)
  • Input Impedance: 10 kOhms +/- 10 % (unbalanced)
  • Additional Connections:
    • Bass Module out (for B1 or B2 only) NL4 connector (all pins wired, two for auto sensing). Bass output signal for driving up to two B1 bass modules (1 B1 bass module = 8 ohms) (2 B1 bass modules = 4 ohms) or one B2 bass module (4 ohms)
    • ToneMatchPort: CAT5 Ethernet cable with RJ45 connection providing digital audio and power connection for the optional T1 ToneMatch audio engine
  • AC Mains: IEC connector
  • Enclosure:
    • Power Stand: Polypropylene cover with cast aluminum legs and steel chassis base
    • Loudspeaker array and bottom extension: Aluminum enclosure with ABS baffle
  • Grille: Powder-coated perforated steel
  • Dimensions: Assembled height: 79.4" (2018 mm)
  • Net Weight: Top array and bottom extension: 25 lb (11.3 kg)
    • Power Stand: 23.7 lb (10.7 kg)
    • B1 bass module: 26.6 lb (12.1 kg)
    • Power Stand: 32 lb (14.5 kg)
  • Voltages:
    • USA/Canada: 100-120 V 50 / 60 Hz 500 W
    • Europe: 220-240 V 50 / 60 Hz 500W
  • T1 ToneMatch® Audio Engine Specifications:
    • Audio Channels: 4
    • Outputs: 2- Master and AUX
    • A/D and D/A Converters: 24-bit
    • Sample Rate: 48 kHz
    • USB & Interfaces: 1.1 protocol, Type A to Type B cable
    • Dimensions: 8.22" H x 6.52" W x 2.66" D (209 mm H x 165 mm W x 67 mm D)
    • Shipping Weight: 2.1 lb (.97 kg)
