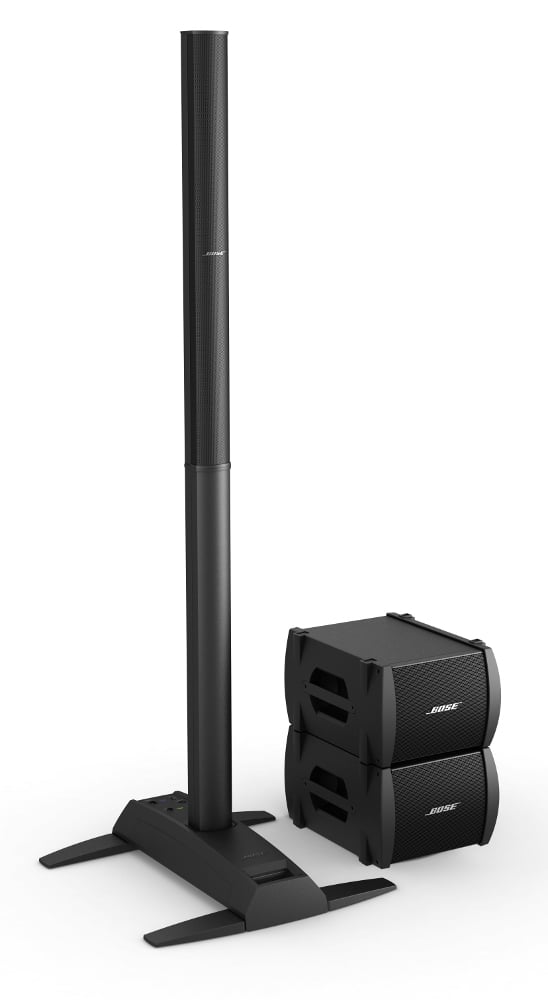

Bose L1 Model 1S System with B1 Bass Modules
Portable PA System

OUR PART #:  L1-1S-DBL-B1

The L1 system offering a unique combination of performance and portability for an audience of up to 300.
Learn More
Our Price: $2,098.00

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bose L1 Model 1S System with B1 Bass Modules
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The L1 system offering a unique combination of performance and portability for an audience of up to 300. With a 12-speaker articulated line array providing 180 degrees of clear, even, sound, the system is also designed to work with the T1 ToneMatch® audio engine (sold separately ) as well as a choice in bass modules. Easy to transport, and set up in minutes. For indoor applications only - houses of worship, schools and universities, resorts and hospitality venues, live music performances, business presentations, mobile DJing, and more.

Bose L1 Model 1S with B1 Bass Modules Includes:

  • L1 Model 1S Top Array and Bottom Extension
  • B1 Bass Modules and NL4 Cables
  • L1 Model 1S Power Stand and Cord
  • B1 Slip Covers
  • Loudspeaker Carry Bag
  • Power Stand Carry Bag

Bose L1 Model 1S with B1 Bass Modules Features:

  • High-performing, powered, portable two-way loudspeaker system with a 195° H x 10° V nominal dispersion designed for the production and reproduction of live music, music playback, speeches and A/V sound reproduction
  • 12-driver articulated line array produces wide, uniform sound coverage throughout the entire listening area—even off to the extreme sides
  • Consistent front-to-back coverage, 12 drivers mounted in a vertical line array produce less drop off in sound pressure level per doubling in distance than a conventional point source
  • Retractable folding leg mechanism for easy transport
  • Lightweight, interlocking components
  • Expandable bass design supports the use of multiple B1 bass modules or a single B2 module
  • Digital ethercon port provides single-wire connectivity for the T1 ToneMatch audio engine

Bose L1 Model 1S with B1 Bass Modules Specifications:

  • System Type: Self powered, two-way
  • Frequency Response (+/-3 dB): 40 Hz - 12 kHz
  • Frequency Range (-10 dB): 32 Hz - 14 kHz
  • Nominal Dispersion: 195° H x 10° V
  • Maximum SPL @ 1 m 2 : 112 dB SPL (118 dB SPL peak)
  • Crossover Frequency: 200 Hz (24 dB / octave)
  • System Power Rating: 375 W
  • Low-Frequency Amplifier: 250 W
  • High-Frequency Amplifier: 125 W
  • Distortion at Rated Power: 0.1 % Max (30 Hz - 15 kHz)
  • System Limiter: Dynamic limiter
  • Overload Protection: Fuse/MOV/NTC/PTC
  • Power Indicator: Blue LED: system on, Red LED: fault
  • Driver Compliment:
    • Top array loudspeaker: Twelve (12) 2.25" (57 mm) HF drivers
    • B1 bass module: Two (2) 5.25" (133 mm) LF drivers (8 ohms)
    • B2 bass module: Two (2) 10" (254 mm) LF drivers (4 ohms)
  • Signal Indicators: Analog signal/clip LED: Green: signal present, Yellow:-3 dB below clip, Red: clip (limiter active)
  • Trim: +14 dB @ max
  • Input: 1/4" - TS unbalanced or TRS balanced
  • Channel Gain (1/4" input): -50 dB to +28 dB (line)
  • Maximum Input Signal: +24 dBu (balanced)
  • Input Impedance: 10 kOhms +/- 10 % (unbalanced)
  • Additional Connections:
    • Bass Module out (for B1 or B2 only) NL4 connector (all pins wired, two for auto sensing). Bass output signal for driving up to two B1 bass modules (1 B1 bass module = 8 ohms) (2 B1 bass modules = 4 ohms) or one B2 bass module (4 ohms)
    • ToneMatchPort: CAT5 Ethernet cable with RJ45 connection providing digital audio and power connection for the optional T1 ToneMatch audio engine
  • AC Mains: IEC connector
  • Enclosure:
    • Power Stand: Polypropylene cover with cast aluminum legs and steel chassis base
    • Loudspeaker array and bottom extension: Aluminum enclosure with ABS baffle
  • Grille: Powder-coated perforated steel
  • Dimensions: Assembled height: 79.4" (2018 mm)
  • Net Weight: Top array and bottom extension: 25 lb (11.3 kg)
    • Power Stand: 23.7 lb (10.7 kg)
    • B1 bass module: 26.6 lb (12.1 kg)
    • Power Stand: 32 lb (14.5 kg)
  • Voltages:
    • USA/Canada: 100-120 V 50 / 60 Hz 500 W
    • Europe: 220-240 V 50 / 60 Hz 500 W
