Focusrite RedNet 3
32 Digital I/O Dante Interface for RedNet Professional Audio Networking System

OUR PART #:  REDNET-3

RedNet is Focusrite's flagship range of Ethernet-networked studio interfaces...
Learn More
Our Price: $999.99
List Price: $1,199.99
You save 17%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Focusrite RedNet 3
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RedNet is Focusrite's flagship range of Ethernet-networked studio interfaces, based around the tried and tested Dante Ethernet audio networking system from Australian company Audinate. Focusrite’s RedNet is the first to offer IP network audio interfaces for the recording studio – or any application that requires moving high quality audio around with ultra-low latency.

NOTE: Before purchasing, please consult with our qualified sales engineers for advice on selecting the right RedNet system for you.

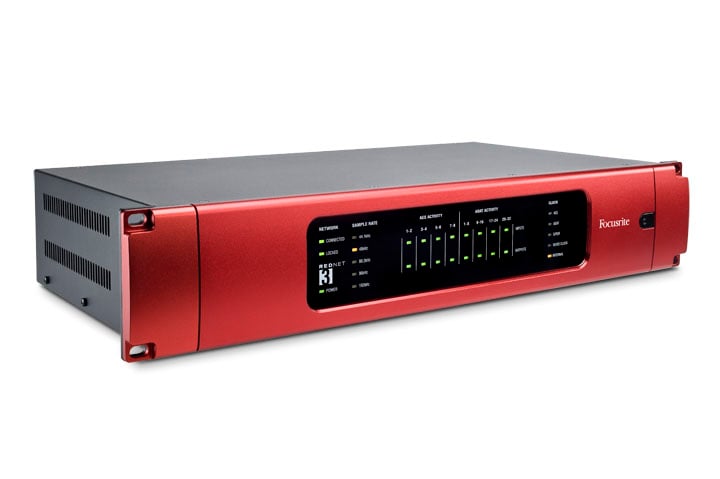

RedNet 3
RedNet 3 interfaces your existing digital audio systems and components to the RedNet network, with up to 32 inputs and outputs and full software remote control. The unit includes support for AES/EBU, S/PDIF and ADAT (16 ADAT optical ports support 32 digital channels in and out – even at 96kHz, with S-MUX2) digital audio formats and allows the RedNet system to be synchronised to incoming signal clock or a word clock source.

RedNet 3 can be used simply as a means of converting 32 channels of audio and delivering it somewhere else on the network at near-zero latency. If you need to connect RedNet 3 to your computer there are three methods:

  • The RedNet PCIe card for Core Audio and ASIO applications such as Logic and Nuendo
  • RedNet 5 for Pro Tools HD, Pro Tools HDX and ProTools HD Native via DigiLink connectors
  • Directly to your computer’s Ethernet port using a standard Ethernet cable (and “Dante Virtual Soundcard”)

Focusrite RedNet 2 Specifications:

Connectivity

  • ADAT Optical inputs 1 – 8 via TOSLINK optical connectors: Each connector supports 8 channels at 44.1 or 48k, 4 channels at 96k (S-MUX2), and 2 channels at 192kHz (S-MUX4)*
  • ADAT Optical outputs 1 – 8 via TOSLINK optical connectors: Each connector supports 8 channels at 44.1 or 48k, 4 channels at 96k (S-MUX2), and 2 channels at 192kHz (S-MUX4)*
  • AES/EBU inputs and outputs 1 – 8 via DB25 connector (replaces port one of the ADAT inputs when in use)
  • S/PDIF input 1 – 2 via coaxial port (replaces one AES bank when in use)
  • S/PDIF output 1 – 2 via coaxial port Word Clock input via BNC port
  • Word Clock output via BNC port
  • Dante Ethernet port

NOTE: *When running at 44.1 or 48kHz, ADAT input ports 5 – 8 are disabled and ADAT output ports 5-8 mirror output ports 1-4

Inputs

  • AES/EBU inputs: 8 channels, with switchable SRC
  • AES/EBU connector: 25-way female Dsub, wired to AES 59 (combined I/O)
  • ADAT inputs: 32 channels @ 44.1 / 48 / 88.2 / 96 kHz sample rate; 16 channels @ 192 kHz
  • ADAT connectors: TOSLINK lightguides x 8
  • S/PDIF input: 2 channels, with switchable SRC 44.1 to 192 kHz
  • S/PDIF connector: Phono (RCA) socket

AES/EBU Input Sampe Rate Converters

  • Input sample rate range: 32 to 216 kHz
  • Gain error: -0.3 dB
  • Dynamic Range: > 138 dB (-60 dBFS method)
  • THD+N: < -130 dB (0.00003%); 0 dBFS input

Outputs

  • AES/EBU outputs: 8 channels, sync-locked to RedNet system sample rate
  • AES/EBU connector: See “Inputs”
  • ADAT outputs: 32 channels @ 44.1 / 48 / 88.2 / 96 kHz sample rate; 16 channels @ 192 kHz
  • ADAT connectors: TOSLINK lightguides x 8
  • S/PDIF output: 2 channels, sync-locked to RedNet system sample rate
  • S/PDIF connector: Phono (RCA) socket

Operating Modes

  • AES/EBU mode: AES/EBU inputs – Chs. 1 to 8; ADAT inputs – Chs. 9 to 32*;AES/EBU outputs – Chs. 1 to 8; ADAT outputs – Chs. 1 to 32*
  • ADAT mode: ADAT inputs – Chs. 1 to 32*; AES/EBU outputs – Chs. 1 to 8;ADAT outputs – Chs. 1 to 32*

Digital Performance

  • Supported sample rates: 44.1 / 48 / 88.2 / 96 / 192 kHz
  • Clock sources: Local or from network master device
  • Local clock sources: Internal, Word Clock input, AES input 1, ADAT input1, S/PDIF input
  • External word clock range: Sample rate ±7.5%

Power

  • PSU: Internal, 100 - 240 V, consumption 30 VA
