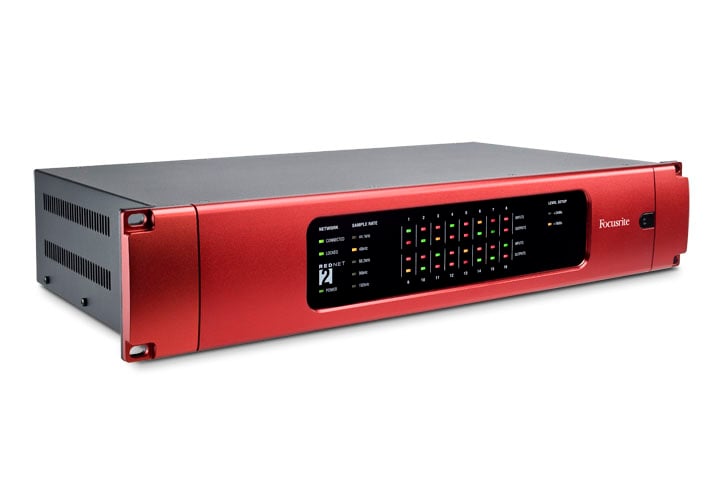

Focusrite RedNet 2
16-Channel AD/DA Remote Dante Interface for RedNet Network Audio System

OUR PART #:  REDNET-2

The Focusrite RedNet 2 adds 16 remote-controlled analog channels in and out to your RedNet network and can be located anywhere you can run an Ethernet cable.
Learn More
Our Price: $3,099.99
List Price: $3,699.99
You save 16%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Focusrite RedNet 2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Focusrite RedNet 2 adds 16 remote-controlled analog channels in and out to your RedNet network and can be located anywhere you can run an Ethernet cable. Featuring Focusrite’s precision 24-bit A/D and D/A conversion for superb audio performance, it delivers 119dB dynamic range at sample rates up to 192 kHz. The rear panel includes standard DB25 connectors for analog patchbay or breakout cable interfacing.

RedNet 2 can be used simply as a means of converting 16 channels of audio and delivering it some somewhere else on the network at near-zero latency. If you need to connect RedNet 2 to your computer there are three methods:

  • The RedNet PCIe card for Core Audio and ASIO applications such as Logic and Nuendo
  • RedNet 5 for Pro Tools HD, Pro Tools HDX and Pro Tools HD Native via DigiLink connectors
  • Directly to your computer’s Ethernet port using a standard Ethernet cable (and “Dante Virtual Soundcard”)

RedNet is Focusrite’s flagship range of modular Ethernet-networked audio interfaces that harnesses the power of Audinate’s tried and tested Dante digital audio networking system to bring studio quality sound to any modern audio application. Fundamentally RedNet is an extremely scalable, near zero latency audio distribution system that can be used to expand I/O channel count, interface digital components, and/or bridge between Pro Tools|HD or MADI and the Dante audio network.

NOTE:  Before purchasing, please consult with our qualified Sales Representatives for advice on selecting the right RedNet system for you.

Focusrite RedNet 2 Specifications:

  • Inputs:
    • Analog Line Inputs:  16
    • Connector:  25-way female Dsub x 2, wired to AES 59
    • 0 dBFS Reference Levels:  +18 or +24 dBu (switchable)
    • Frequency Response:  20 Hz – 20 kHz ±0.05 dB
    • THD+N:  < 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz
    • Dynamic Range:  119 dB ‘A’-weighted (-60 dBFS method)
    • Converter Dynamic Range:  120 dB
    • Signal-to-Noise Ratio:  119 dB ‘A’-weighted; 20 Hz – 20 kHz
  • Outputs:
    • Analog Line Outputs:  16
    • Connector:  25-way female Dsub x 2, wired to AES 59
    • 0 dBFS Reference Levels:  +18 or +24 dBu (switchable)
    • Frequency Response:  20 Hz – 20 kHz ±0.15 dB
    • THD+N:  < 0.001% unweighted; -1 dBFS input, 20 Hz – 22 kHz
    • Dynamic Range:  119 dB ‘A’-weighted (-60 dBFS method)
    • Converter Dynamic Range:  120 dB
    • Signal-to-Noise Ratio:  119 dB ‘A’-weighted; 20 Hz – 20 kHz
  • Crosstalk:
    • Input or Output to Input:  < -90 dB (all other channels at 0 dBFS)
    • Input or Output to Output:  < -100 dB (all other channels at 0 dBFS)
  • Digital Performance:
    • Supported Sample Rates:  44.1 / 48 / 88.2 / 96 / 192 kHz
    • Clock Sources:  Internal or from network master device
  • Power:  Internal PSU, Universal type, consumption30 VA
  • Front Panel Indicators:
    • Power:  Green
    • Network Connected:  Green
    • Sync Lock:  Green
    • Sample Rate:  Yellow x 5
    • Input/Output Range:  Yellow x 2
    • Input/Output Signal Level:  Bi-color x 32 (Green = -42 dBFS; Orange = -6 dBFS; Red =overload)
