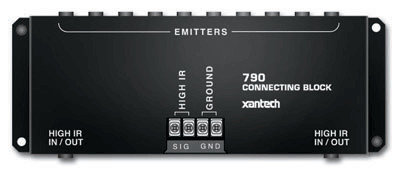

Xantech 079000
Multiple Emitter Connecting Block for 079144/079210

OUR PART #  079000

Call for price! Not available online.


Recommended Accessories

This devive is an emitter expansion block for the 079144 or 079210. It offers parallel emitter ports which drive 10 single or 10 dual emitters.

Features:

  • Emitter expansion block for the 079144 or 079210
  • Parallel emitter ports drive 10 single or 10 dual emitters
  • Contains a series 100-Ohm resistor per emitter port
  • Emitter and IN/OUT ports are 3.5 mm mono mini-jacks
  • Screw terminals provide for wired input connections
  • Requires the 079210 Power Module or the 079144 Amplified Connecting Block to drive the 790 block

Specifications:

  • Dimensions: 6” x 2 1/4” x 15/16” (153mm x 58mm x 24mm)
Amplified Connecting Block for Multiple EmittersXantech 791-44 Amplified Connecting Block for Multiple Emitters

The Xantech 791-44 Amplfied Connecting Block for Multiple Emitters heafutres emitter ports with humpers that permit high or low power. It also features a high-speed opto-isolator for improved operation and parallel emitter ports that drive ...

Call for price! Not available online.

Xantech 079000
Multiple Emitter Connecting Block for 079144/079210

OUR PART #  079000

Product Information:

This devive is an emitter expansion block for the 079144 or 079210. It offers parallel emitter ports which drive 10 single or 10 dual emitters.

Features:

  • Emitter expansion block for the 079144 or 079210
  • Parallel emitter ports drive 10 single or 10 dual emitters
  • Contains a series 100-Ohm resistor per emitter port
  • Emitter and IN/OUT ports are 3.5 mm mono mini-jacks
  • Screw terminals provide for wired input connections
  • Requires the 079210 Power Module or the 079144 Amplified Connecting Block to drive the 790 block

Specifications:

  • Dimensions: 6” x 2 1/4” x 15/16” (153mm x 58mm x 24mm)
Amplified Connecting Block for Multiple EmittersXantech 791-44 Amplified Connecting Block for Multiple Emitters

The Xantech 791-44 Amplfied Connecting Block for Multiple Emitters heafutres emitter ports with humpers that permit high or low power. It also features a high-speed opto-isolator for improved operation and parallel emitter ports that drive ...

Call for price! Not available online.
