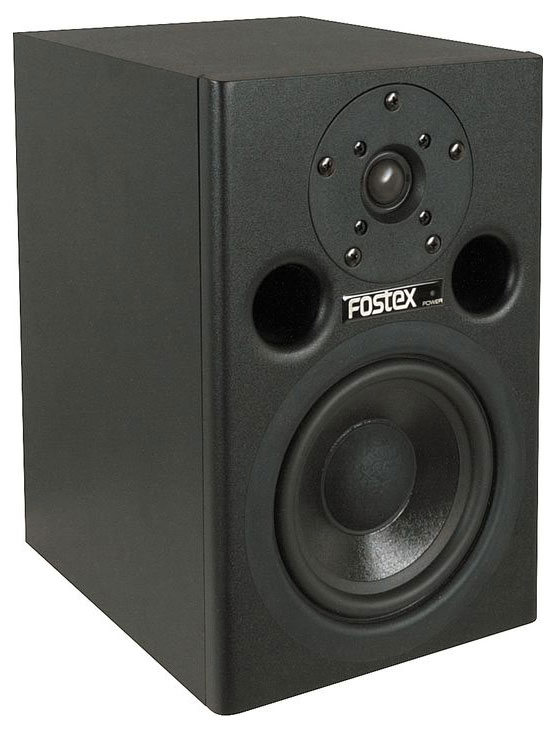

Fostex PM0.5-B
Pair of 5" Powered Studio Monitors in Black

OUR PART #:  PM0.5-B

The powered PM05 studio monitors' 5 in. LF driver has been developed to obtain extremely pure music reproduction by employing the latest technology in cone material.
Learn More
Our Price: $349.99
List Price: $399.99
You save 13%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Fostex PM0.5-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The powered PM05 studio monitors' 5 in. LF driver has been developed to obtain extremely pure music reproduction by employing the latest technology in cone material. The cone uses a mixture of cut and milled fibers that are made from aromatic polyamide. It is then impregnated with resins to simultaneously achieve high rigidity and optimum damping. The cone has an olefin film thermally adhered to its surface to control frequency response and to establish long-term reliability. The center dust cap is made of non-wood cellulose material and is also impregnated with resin. The voice coil is made of super high purity copper wire to achieve very low distortion. The PM05's .75 in. soft dome tweeter employs Fostex's UFLC technology (Poly Urethane Film Laminated Cloth) to achieve lightweight and high stability performance.

The compact PM0.5 measures 7-1/8 in. H x 11 in. H x 10-1/4 in. D (w/heat sink) and weighs 14.3 lbs. each. Ideal for small project studios or even remote recording applications, the PM0.5 is amazingly powerful, despite its size. For example, it generates 105dB SPL at 1 meter across the critical midrange bandwidth from 80Hz to 3kHz. Free field response is 50Hz ~ 20kHz +/- 2dB. Performance is tailored further by the use of cut-off filters: 40 Hz for the woofer and 22kHz for the tweeter. These safeguards prevent the drivers from attempting to reproduce frequencies outside of their performance specifications.

Specifications:

Acoustic Section:

  • Frequency Response (Free field, +/- 2dB): 50Hz to 20kHz
  • Low Frequency Cut-off: 40Hz
  • High Frequency Cut-off: 22kHz
  • Maximum Short Term SPL: 80Hz - 3kHz >105dB SPL 1m

Amplifier Section:

  • Output power: 40w+30w
  • Distortion: <0.01% THD @25W/8 ohm, 20Hz - 20kHz
  • S/N: >84dB, 20Hz - 30kHz
  • Slew rate: 15V/uSec

Dimensions:

  • Width: 7 1/8 in.
  • Height: 11 in.
  • Depth: 10 1/4 in. including Heat Sink; 9 in. excluding Heat Sink
  • Weight: 14.3 lbs each
