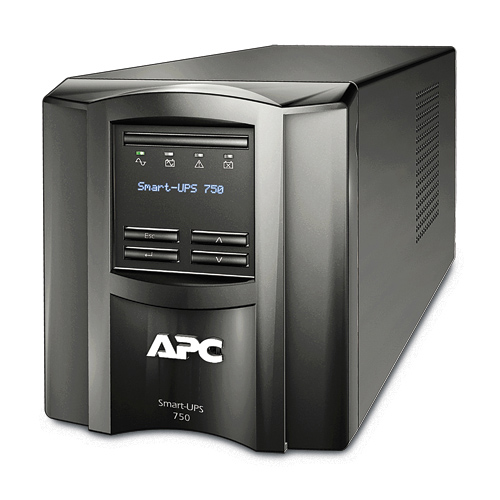

American Power Conversion SMT750
750VA LCD 120V Smart UPS

OUR PART #:  SMT750

This unit is a Smart-UPS,500 Watts /750 VA,Input 120V /Output 120V, Interface Port Smart-Slot uninterruptable power supply...
Learn More
Our Price: $335.40
List Price: $465.00
You save 28%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

American Power Conversion SMT750
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This unit is a Smart-UPS,500 Watts /750 VA,Input 120V /Output 120V, Interface Port Smart-Slot uninterruptable power supply, used to provide backup power to a computer in the event main electrical service failure occurs.

Features:

  • Intuitive LCD interface: Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
  • Pure sine wave output on battery: Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • StruxureWare Central compatible: Enables centralized management via StruxureWare Central.
  • High online efficiency: Reduces utlility costs, generates less heat.
  • SmartSlot: Customize UPS capabilities with management cards.
  • Cold-start capable: Provides temporary battery power when the utility power is out.
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.

Specifications:

Output

  • Output Power Capacity: 500 Watts / 750 VA
  • Nominal Output Voltage: 120V
  • Output Voltage Distortion: Less than 5%
  • Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
  • Topology: Line Interactive
  • Waveform Type: Sine wave
  • Output Connections: (6) NEMA 5-15R

Input

  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections: NEMA 5-15P
  • Cord Length: 6 feet (1.83 meters)
  • Input voltage range for main operations: 82 - 144V
  • Input voltage adjustable range for mains operation: 75 - 154V

Batteries & Runtime

  • Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
  • Typical recharge time: 3 hour(s)
  • Replacement Battery: RBC48
  • RBC™ Quantity: 1

Communications & Management

  • Interface Port(s): Smart-Slot
  • Available SmartSlot™ Interface Quantity: 1
  • Control panel: Multi-function LCD status and control console
  • Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
  • Emergency Power Off (EPO): Optional

Surge Protection and Filtering

  • Surge energy rating: 540 Joules
  • Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height: 6.34 inches (161 mm)
  • Maximum Width: 5.43 inches (138 mm)
  • Maximum Depth: 14.29 inches (363 mm)
  • Net Weight: 29.00 lbs. (13.18 kg)
  • Shipping Weight: 31.30 lbs. (14.23 kg)
  • Shipping Height: 11.85 inches (301 mm)
  • Shipping Width: 10.95 inches (278 mm)
  • Shipping Depth: 19.65 inches (499 mm)
  • Color: Black

Environmental

  • Operating Environment: 32 - 104 °F (0 - 40 °C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0-10000 feet (0-3000 meters)
  • Storage Temperature: 5 - 113 °F (-15 - 45 °C)
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0-50000 feet (0-15000 meters)
  • Audible noise at 1 meter from surface of unit: 40.00 dBA
  • Online Thermal Dissipation: 90.00 BTU/hr

Conformance

  • Regulatory Approvals: ENERGY STAR (USA), UL 1778
  • Standard Warranty: 3 years repair or replace (excluding battery) and 2 year for battery
  • Equipment protection policy: Lifetime : $150000
  • Sustainable Offer Status: RoHS
  • Compliant:
      -  REACH
      -  REACH: Contains No SVHCs
