Lowell BC810-72
15W BC Beam-Clamping Speaker Assembly

OUR PART #:  BC810-72

The BC-810-72 beam-clamping speaker assembly is ideal for attachment to beams or girders in open structure ceiling environments.
Learn More
Our Price: $58.83
List Price: $73.58
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lowell BC810-72
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

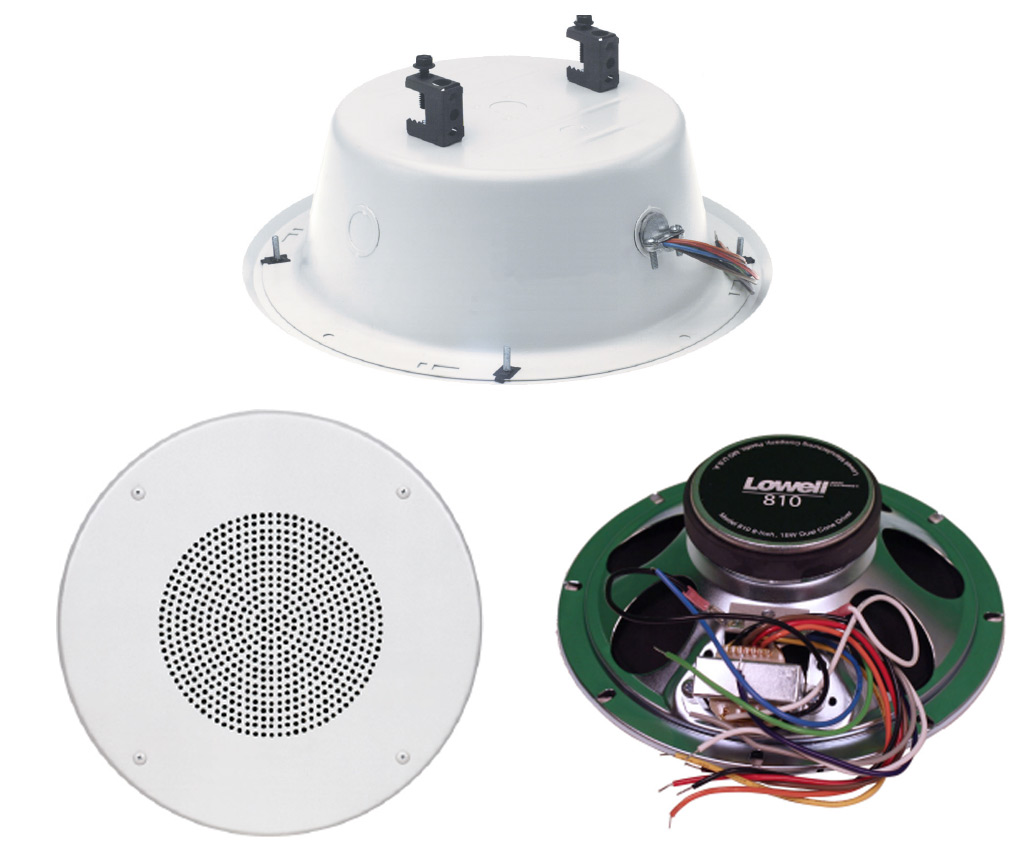

The BC-810-72 beam-clamping speaker assembly is ideal for attachment to beams or girders in open structure ceiling environments. The ready-to-install package is shipped with the speaker, transformer, and grille mounted within a conically shaped backbox. The speaker / transformer is Lowell's dual cone 15W driver Model 810with a 25V/70Vtransformerto provide clear and reliable performance for voice paging and backgroundmusic applications. Architectural grille isModel WB-8, an aesthetically pleasing grille that is precision formed fromone-piece steel and finished inwhite powder epoxy.The grille ismounted to the backboxwithmatching white screws for a quality appearance. Outside diameter of the grille and the assembly is 12.875". The backbox is Lowell Model 8XD4 equipped with two beam clamps mounted on top. For efficient field connection, the assembly features externally accessible speaker leads exiting through a metal strain-relief clamp. Simply splice connecting wires and push them completely inside the backbox and tighten the clamp.The backbox is steel, finished in white powder epoxy.

Features:

  • Fully contained speaker assembly includes clamps for fast, efficientmounting to beams and girders.
  • Externally accessible leads include strain relief for fast and reliable field connection.
  • 15W driver with wired transformer is ideal for distributed paging andmusic applications.
  • Architectural grille and backbox are finished in durable white powder epoxy.

Specifications:

  • Assembly Model:  BC-810-72
  • Driver:  810
  • Transformer Voltage:  70/25
  • Transformer Taps:  0.25, 0.5, 1, 2, 5W
  • Mounted Grille:  WB-8 round white CRS 12.875" dia.
  • Mounted Backbox:  8XD4 (10" Dia. x 4"D + clamps)
  • Mounted Style:  2 beam clamps
