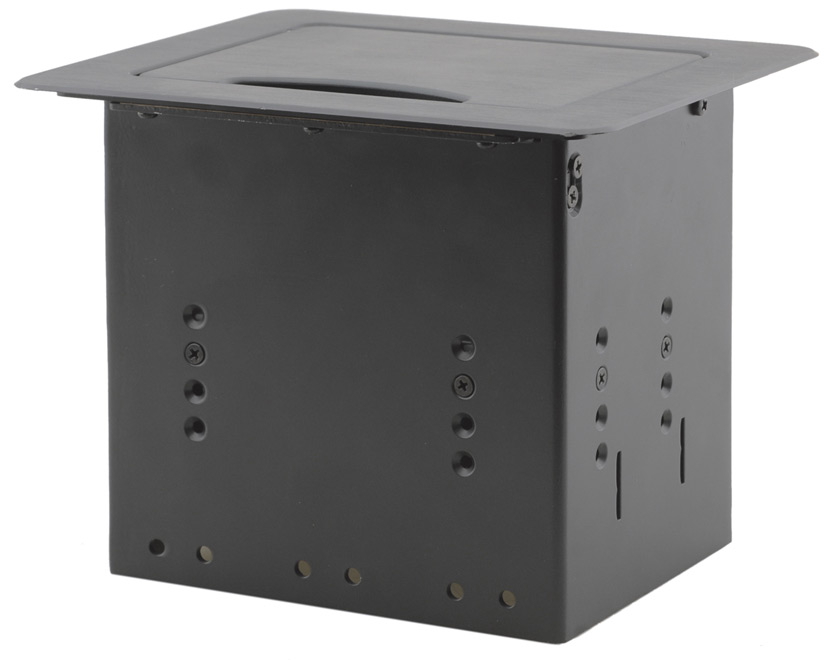

Kramer TBUS-3XL(B) Table Mount Modular Multi-Connection Solution, Tilt-Up Lid

The TBUS-3xl is the enclosure of a new modular system with a tilt-up lid. A complete TBUS system also requires an inner frame, a power socket, inserts and a power cord.

Available in:

• Black Anodized Aluminum (pictured)
• Brushed Clear Aluminum

Features

• Inner Frame - 3 different "T3F" inner frame options are available that can accommodate a combination of up to 4 power sockets, 6 cable pass-through or connector inserts, 1 long insert and up to 3 Kramer TOOLS.
• Power Sockets - 8 different "TS" single power socket options are available to accommodate the power requirements worldwide.
• Power Cords - 8 different "C-AC" single power cords for each power socket.
• Optional Accessories - TBUS Brackets, K-ABLE Box Cable Reels, Step-In Modules and Controllers are available.
• Cover - Manually opens & closes.
• Connector Depth - Adjustable.

Specifications

• Installation Requirement - Table cutout of 6.23 x 4.85 in (158 x 123 mm).
• Dimensions - Top plate: 6.9 x 5.5 in (17.6 x 14.0 cm) W, D; Enclosure: 5.4 x 4.0 x 5.1 in (13.6 x 10.2 x 13.0 cm) W, D, H.
• Weight - 2.25 lbs (1.02 kg) approx.; table clamps: 0.566 lbs (0.257 kg); template: 0.275 lbs (0.125 kg).
• Size - T-BUS®
