Atlas Sound MYNA2-2
Dual MYNA Wireless Mic and Dual IR Dome Kit


The Atlas Learn MYNA2-2 complete kit is the ideal solution for larger classrooms or boardrooms where two microphones are required.
Learn More
Our Price: $1,310.99
List Price: $1,637.99
You save 20%!
Write the first review.
Atlas Sound MYNA2-2
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

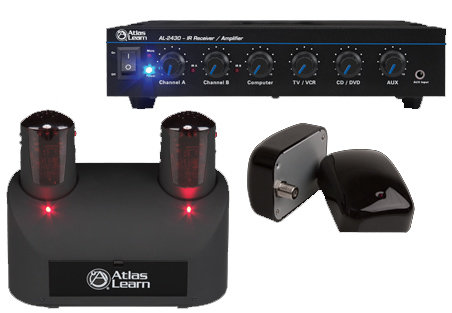

The Atlas Learn MYNA2-2 complete kit is the ideal solution for larger classrooms or boardrooms where two microphones are required.  The kit includes one (1) AL2430 amplifier/receiver, two (2) AL-MYNA wireless microphone, one (1) AL-MYNA-NEST charging station,  two (2) AL-IRDS infrared dome transmitters, and twenty (20) meters of coaxial cable to connect the AL-IRDS with the AL2430.  This kit allows you to get all the benefits of the Atlas Learn system without paying for parts or accessories that are not needed.

Atlas Sound offers a full line of compatible in-ceiling and surface mount speakers that can be used with an Atlas Learn system.


  • AL2430 6 Input Mixer with Priority Page Override
  • Front Panel Source Volume Control
  • Supports Up to Three Infrared Wireless Microphone Transmitters
  • AL-MYNA Wireless Infrared Microphone Transmitter
  • Operates Using 2 AA Rechargeable Batteries
  • Dual Mode Operation
  • Integrated "Panic" Trigger for Emergency Notification
  • 3.5mm Input for Optional Headset, Collar, or Lapel Microphone
  • AL-IRDS Includes 10m Coaxial Cable for Connection to AL2430


AL2430 Receiver/Amp

  • Power Output: 30 Watts RMS (8O, 25V or 70V Output)
  • Multimedia Input Sensitivity: -10dB
  • Priority Page Input Sensitivity: 14dB
  • Computer Input Impedance: 56K
  • Multimedia Input Impedance: 22K
  • Multimedia Input Connector Type: (4) Dual RCA
  • AUX Front Input Connector Type: 3.5mm
  • Line Output Impedance: 1K
  • Line Output Voltage: 1.3V
  • Line Output Connector Type: Dual RCA
  • Mic EQ (100Hz, 3kHz, & 10kHz) Adjustment: ± 10dB
  • IR Input Impedance /Connector Type: 75O F Connector
  • Panic Output Contact Rating: 5A @ 36V
  • Height: 1.75" (45mm)
  • Width: 8.5" (216mm)
  • Depth: 13.5" (343mm)
  • Receiver Weight: 5.75 lbs (2.6kg)
  • UL Listed Power Supply: 100-240V (50/60Hz) 1.7A In/ 24VDC 2.5A out

Myna “Nest” Charging Station

  • Height: 4.17" (106mm)
  • Width: 7.44" (189mm)
  • Depth: 2.75" (70mm)
  • Weight: .5 lbs (.23kg)
  • AL-MYNA Ports: 2
  • Charge Indicator LEDs: 4 (Red – Charging, Green –Charged)
  • UL Listed Power Supply: 100-240V (50/60Hz) .5A In/ .9VDC 1.5A out

Myna Transmitter Mic

  • IR LEDs 6 Total in 2 Groups
  • Headset/AUX Input 3.5MM 2kO
  • External Controls Power, Mode, Volume, Panic Mute
  • Internal Controls Channel A/B, Student “Lock Out”
  • Indicator LEDs Mode (2 Blue), Lockout (1 Red), PWR /BATT (1 Green / Red)
  • Weight (with Battery) 4.23oz (120g)
  • Weight (without Battery) 2.1oz (60g)
  • Battery (2) AA NiMH Rechargeable (1.5V, 2300mAh)
