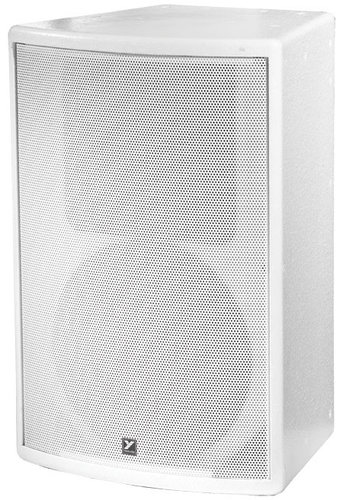

Yorkville C12W
12" 400 Watt Install Speakers, White

OUR PART #  C12W

Our Price: $649.00
List Price: $899.00
You save 28%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The new Canadian made Coliseum C12W installation loudspeaker uses a solid birch plywood cabinet construction, all metal grill and rotatable ABS 80° x 50° horn. Ample integrated flypoints for firm attachment to custom designed Yorkville flyware ensure cost effective rigging in single cabinet or arrays.

Additional Omnimount compatible rigging points make the 400 watt C12W an ideal solution for larger commercial installation or House of Worship PA applications.

The FH2W hardware kit has been specifically designed to expand the C12W and C15W’s already advanced mounting capabilities. A single FH2W installation kit is the ideal rigging solution for installing either Yorkville Coliseum Series C12W or C15W speakers in single point hangs for solo cabinets or two-box arrays.

The staggered hole pattern in the FH2W allows for a multitude of tilt angles simply by moving the shackle towards front or the rear of the bracket. If further down-tilt is required, simply attach an eyebolt in the pullback position of the cabinet in addition to the hang point. When using C12W or C15W cabinets in two cabinet arrays, the FH2W splays the loudspeakers at the ideal angles to minimize interference and lobing.

Features:

  • 400 Watts / 8 ohms
  • 12-inch Woofer / 1.75-inch Horn Driver
  • 80º x 50º Rotatable Horn
  • Nine Integrated 1/4-20 flypoints
  • Optional Versatile FH2W Flying Hardware Available
  • Also Compatible with 60.0WA Omnimount Bracket
  • Solid Birch Cabinet Construction
  • Extensive Internal Metal Bracing for Added Security and Long Term Reliability
  • All Metal Grille
  • Speakon™ & Terminal Strip Input

Specifications:

  • System Type Two Way
  • Active or Passive Passive
  • Program Power (Watts) 400
  • Biampable No
  • Nominal Impedance (Ohms) 8
  • Sensitivity (dB @1Watt/1m) 98
  • Max SPL (dB) 124
  • Frequency Response (Hz +/- 3db) 55 - 20k
  • Crossover Frequency (Hz) 1100
  • Driver Configuration 12 inch / 1.75 inch
  • HF Driver(s) 1.75 inch Mylar
  • HF Horn Rotatable ABS Waveguide
  • HF Dispersion (°H x °V) 80 x 50 Rotatable
  • HF Protection CTL
  • Inputs - Speakon 4-pin 2
  • Inputs - Screw Terminal 1 Pair
  • Flying Hardware 1/4 inch
  • Optional Flying Hardware FH2W Flyware bracket is available
  • Enclosure Materials 15mm (5/8inch) 11-ply Russian birch
  • Grille Perforated Metal
  • Covering / Finish Two Part White Epoxy
  • Other Details Has rear-mount rigging points for Omnimount 60.0WA Bracket
  • Dimensions (DWH xbackW, inches) 14.3 x 16.2 x 24.1 x 11.1
  • Weight (lbs/kg) 54/24.6

Click to download

Yorkville C12W
12" 400 Watt Install Speakers, White

OUR PART #  C12W

Product Information:

The new Canadian made Coliseum C12W installation loudspeaker uses a solid birch plywood cabinet construction, all metal grill and rotatable ABS 80° x 50° horn. Ample integrated flypoints for firm attachment to custom designed Yorkville flyware ensure cost effective rigging in single cabinet or arrays.

Additional Omnimount compatible rigging points make the 400 watt C12W an ideal solution for larger commercial installation or House of Worship PA applications.

The FH2W hardware kit has been specifically designed to expand the C12W and C15W’s already advanced mounting capabilities. A single FH2W installation kit is the ideal rigging solution for installing either Yorkville Coliseum Series C12W or C15W speakers in single point hangs for solo cabinets or two-box arrays.

The staggered hole pattern in the FH2W allows for a multitude of tilt angles simply by moving the shackle towards front or the rear of the bracket. If further down-tilt is required, simply attach an eyebolt in the pullback position of the cabinet in addition to the hang point. When using C12W or C15W cabinets in two cabinet arrays, the FH2W splays the loudspeakers at the ideal angles to minimize interference and lobing.

Features:

  • 400 Watts / 8 ohms
  • 12-inch Woofer / 1.75-inch Horn Driver
  • 80º x 50º Rotatable Horn
  • Nine Integrated 1/4-20 flypoints
  • Optional Versatile FH2W Flying Hardware Available
  • Also Compatible with 60.0WA Omnimount Bracket
  • Solid Birch Cabinet Construction
  • Extensive Internal Metal Bracing for Added Security and Long Term Reliability
  • All Metal Grille
  • Speakon™ & Terminal Strip Input

Specifications:

  • System Type Two Way
  • Active or Passive Passive
  • Program Power (Watts) 400
  • Biampable No
  • Nominal Impedance (Ohms) 8
  • Sensitivity (dB @1Watt/1m) 98
  • Max SPL (dB) 124
  • Frequency Response (Hz +/- 3db) 55 - 20k
  • Crossover Frequency (Hz) 1100
  • Driver Configuration 12 inch / 1.75 inch
  • HF Driver(s) 1.75 inch Mylar
  • HF Horn Rotatable ABS Waveguide
  • HF Dispersion (°H x °V) 80 x 50 Rotatable
  • HF Protection CTL
  • Inputs - Speakon 4-pin 2
  • Inputs - Screw Terminal 1 Pair
  • Flying Hardware 1/4 inch
  • Optional Flying Hardware FH2W Flyware bracket is available
  • Enclosure Materials 15mm (5/8inch) 11-ply Russian birch
  • Grille Perforated Metal
  • Covering / Finish Two Part White Epoxy
  • Other Details Has rear-mount rigging points for Omnimount 60.0WA Bracket
  • Dimensions (DWH xbackW, inches) 14.3 x 16.2 x 24.1 x 11.1
  • Weight (lbs/kg) 54/24.6

Click to download
