Empirical Labs, Inc DS-PLUS
1xELDS-H in EL500 Rack Bundle

OUR PART #:  DS-PLUS

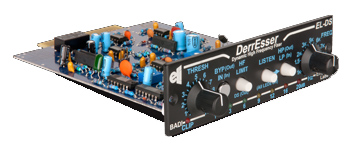

The first entry by ELI into the 500 series format, the DerrEsser is a multi function dynamic filtering device. Available in vertical or horizontal versions.
Learn More
Our Price: $999.00
List Price: $1,099.00
You save 9%!
Write the first review.
Empirical Labs, Inc DS-PLUS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The first entry by ELI into the 500 series format, the DerrEsser is a multi function dynamic filtering device. Available in vertical or horizontal versions.  A perfect fit for our EL500 powered rack. In its basic “DS” mode, it is an effective, level insensitive “de-esser” - a device that will adjust the high frequency gain on overly trebly or spiky vocals or other sources in an extremely musical manner.  However, unlike other de-essers, the device allows for multiple use of its powerful circuitry.

The Empirical Labs EL500 rack eliminates obstacles such as noisy power supplies, XLR-only I/O, and protruding modules. At the heart of the unit is a super quiet power supply - over 30 dB quieter than some supplies we’ve seen - that will ensure optimal performance from any compatible device.

All 500 series modules will flush mount cleanly in the EL500, providing a much more professional look and feel. The EL500 offers both XLR and phone rear panel inputs and outputs to allow it to interface perfectly with any system.

In addition, a ¼” instrument preamp/direct box input is provided on the front panel, which will automatically switch the left 500 module’s input to this front phone jack once something is plugged into it – a feature we’re sure will prove to be extremely useful. In fact, it has become the first call bass DI for many engineers.  Switches to link compressors and engage a 48V phantom supply are also provided.

Specifications:

Derresser

  • Freq. Response is 3 Hz to 120 kHz (-3dB points).
  • Dynamic Range - 115 dB from maximum output (.5%THD soft clipping) to minimum output. Transformerless noise floor typically – 93dBu.
  • Distortion Ranges between .0035% and .01% depending on mode and settings.
  • DC coupled Input and Outputs
  • High quality audio caps used internally.
  • Input Balanced, Output single ended but with balanced impedance.
  • Pin 2 hot
  • Input Impedance is 20k Ohm. Output impedance is less than 51 ohms.
  • D-S Dynamics Time Constants - Attack time is less than 1mS. Release .04 sec, fixed internally.
  • Power Consumption – 8 Watts max. 4 Watts Typical
