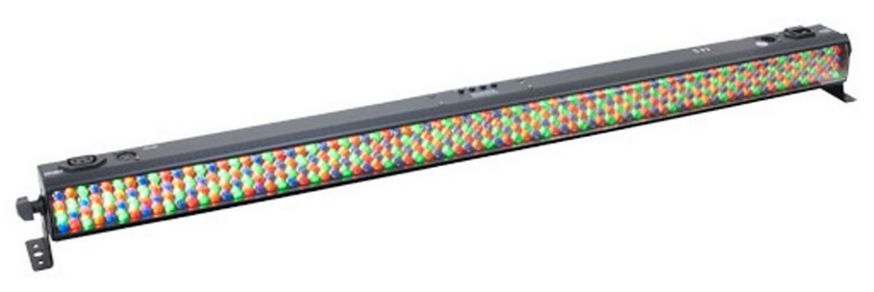

ADJ Mega Bar RGBA 320x10mm RGBA LED Bar, 42"

OUR PART #: MEGA-BAR-RGBA MFR #: MEG040

Copied to clipboard

The ADJ Mega Bar RGBA is a compact 1-Meter (42") linear fixture that offers the flexibility of RGBA (Red, Green, Blue & Amber) color mixing for stage or wall washing. ...Read more

ADJ Mega Bar RGBA 320x10mm RGBA LED Bar, 42" Image 1
ADJ Mega Bar RGBA 320x10mm RGBA LED Bar, 42" Image 2
ADJ Mega Bar RGBA 320x10mm RGBA LED Bar, 42" Image 3
ADJ Mega Bar RGBA 320x10mm RGBA LED Bar, 42" Image 4
ADJ Mega Bar RGBA 320x10mm RGBA LED Bar, 42"
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The ADJ Mega Bar RGBA is a compact 1-Meter (42") linear fixture that offers the flexibility of RGBA (Red, Green, Blue & Amber) color mixing for stage or wall washing. The Mega Bar RGBA can be operated by console, by hand on the rear panel or via the optional ADJ RFC wireless remote to control for more advanced adjustments (remote sold separately). This fixture uses LEDs rated at 50,000 hours with a maximum power draw of 32W. DMX addressing may also be changed by the unit’s 4-button LED display. There is no duty cycle on the Megabar RGBA, plus users can "daisy-chain" the power from one unit to the next with the built-in IEC power Ins/Outs.

ADJ Mega Bar RGBA Features:

  • Meter (42") indoor linear fixture with 320,10mm RGBA LEDs (64 Red, 96 Green, 96 Blue & 64 Amber)
  • Seven DMX Channel modes
  • Variable RGBA color mixing offers a seemingly unlimited color palette - Great for Stage or Wall Washing
  • Six Operational modes
  • 48 built-in Color Macros
  • LED pulse & strobe effect
  • DMX-512 Protocol
  • Flicker Free
  • Linkable via 3-pin XLR cable
  • 4-button LED display on rear panel
  • IEC AC outlet on rear to daisy chain power (up to 20 units)
  • Compatible with ADJ RFC wireless remote control (sold separately)
  • Includes mounting brackets to mount on a wall or set on the ground
  • Magnet system on end-caps to connect multiple bars together
  • Long life LED (Rated at 50,000 hrs.)
  • Low power consumption
  • Very low heat output
  • Run all night – No duty cycle

ADJ Mega Bar RGBA Specifications:

  • DMX Channel modes: 4, 6, 7, 9, 10, 18 or 34 channel modes
  • Operational modes:
    • Manual Color Mode
    • Static Color Change Mode
    • Auto (Program Run) Mode
    • Sound Active Mode
    • RGBA Manual Control Mode
    • DMX-512 Mode
  • Electronic Dimming: 0 - 100%
  • Beam angle: 30°
  • Multi-voltage: 100-240V, 50/60Hz
  • Power Draw: 32W max
  • Dimensions (LxWxH): 41.75" x 3" x 5.75" (1060 x 73 x 145 mm)
  • Weight: 6 lbs (2.7 kg)
